神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-067) - INSTRUMENT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
678 次

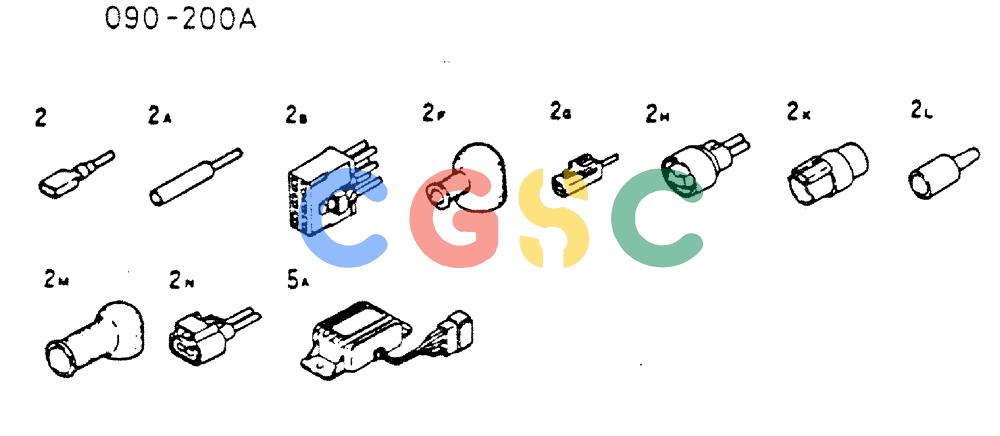

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | VAMH052064 | [1] | TERMINAL | KOBCONNECTOR |
| 2A. | VAMH052002 | [1] | HYD CONNECTOR | KOBCONNECTOR, CB104 |
| 2B. | VAMH052327 | [1] | HYD CONNECTOR | KOBCONNECTOR, 6P FEMALE FOR SAFETY RELAY |
| 2F. | VA3096803122 | [1] | GROMMET | KOBGROMMET FOR AIR HEATER |
| 2G. | VAMH052377 | [1] | HYD CONNECTOR | KOBCONNECTOR, 1P FEMALE FOR ALTERNATOR |
| 2H. | VAMH052231 | [1] | HYD CONNECTOR | KOBCONNECTOR, 2P FEMALE FOR STARTER/R |
| 2K. | VAMB286874 | [1] | HYD CONNECTOR | KOBCONNECTOR, 2P FEMALE FOR STARTER |
| 2L. | VAMH052356 | [1] | HYD CONNECTOR | KOBCONNECTOR FOR Q/L SENSOR |
| 2M. | VAMH022419 | [1] | GROMMET | KOBGROMMET FOR STARTER B |
| 2N. | VAMH056353 | [1] | HYD CONNECTOR | KOBCONNECTOR, 2P FEMALE |
| 5A. | VAME049234 | [1] | RELAY | KOBSAFETY, MEC |
