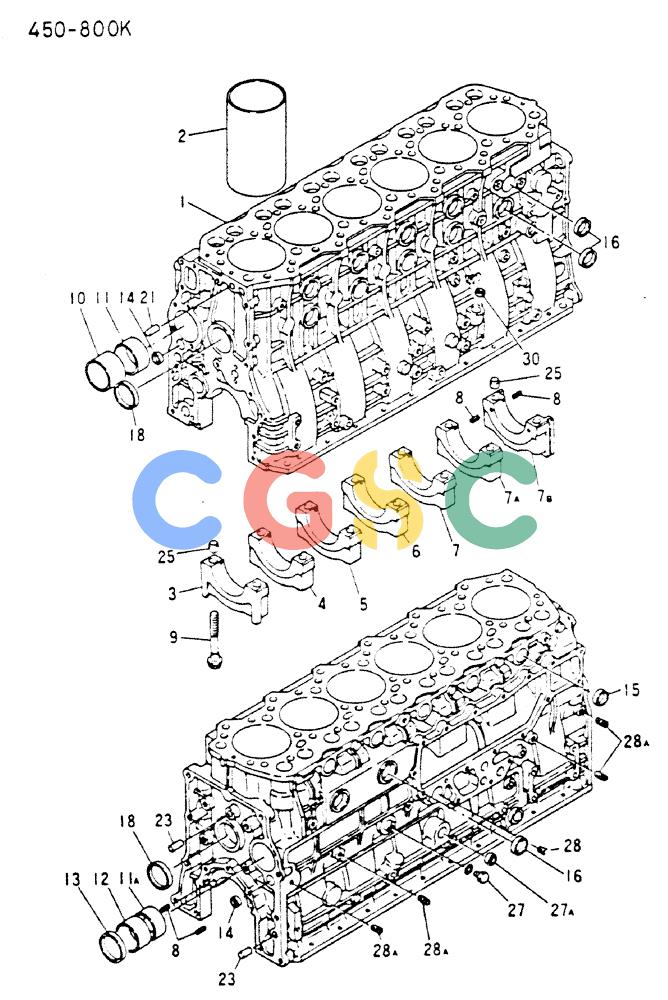

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-071) - CYLINDER BLOCK REPAIR KIT 450-800K Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
916 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-30. | VAME997647 | [1] | CYLINDER BLOCK | KOBASSY '92 Superseded by part number: VAME996455 |
| 1. | VAME081641 | [1] | CRANKCASE | |
| 2. | VAME011626 | [6] | SLEEVE CYLINDER | KOB |
| 3. | VAME013165 | [1] | CAP, BRG NO. 1 | |
| 4. | VAME011546 | [1] | CAP, BRG NO. 2 | |
| 5. | VAME011547 | [1] | CAP, BRG NO. 3 | |
| 6. | VAME011548 | [1] | CAP, BRG NO. 4 | |
| 7. | VAME081503 | [1] | CAP, BRG NO. 5 | |
| 7A. | VAME081504 | [1] | CAP, BRG NO. 6 | |
| 7B. | VAME013660 | [1] | CAP, BRG NO. 7 R-D3 | |
| 8. | VAMH012041 | [6] | PIN | KOBPIN, SPG 4 X 10 |
| 9. | VAME011519 | [14] | SCREW | KOB14 X 120 |
| 10. | VAME013116 | [1] | BALL BEARING | KOBBUSHING SHAFT NO. 1 |
| 11. | VAME011593 | [1] | BUSHING | KOBNO. 2 |
| 11A. | VAME081526 | [1] | BEARING LINER | KOBSCREW NO. 3 |
| 12. | VAME011594 | [1] | BUSHING | KOBNO. 4 |
| 13. | VAMH037751 | [1] | CAP | KOBCAP, SEALING 57 |
| 14. | VAMS666136 | [2] | PLUG | KOBCAP, SEALING 22 |
| 15. | VAMS666138 | [5] | CAP | KOBCAP, SEALING 28 |
| 16. | VAMS666140 | [12] | PLUG | KOBCAP, SEALING 35 |
| 18. | VAMH037754 | [2] | CAP | KOBCAP, SEALING 50 |
| 21. | VAMF472406 | [1] | PIN | KOBPIN, DOWEL 12, FOR FR |
| 23. | VAMH007010 | [2] | PIN | KOBPIN, DOWEL 12, FOR RE |
| 25. | VAME011618 | [4] | PIN | KOBFOR BRG CAP |
| 27. | VAME031088 | [1] | PLUG | KOBSCREW, SET |
| . . | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 27A. | VAMS666136 | [1] | PLUG | KOBCAP, SEALING 22 |
| 28. | VAMH037237 | [1] | PLUG | KOBPLUG, TAPER |
| 28A. | VAME037135 | [4] | PLUG, TAPER | |
| 30. | VAMF665535 | [1] | CAP | KOBCAP, SEALING 18 |
