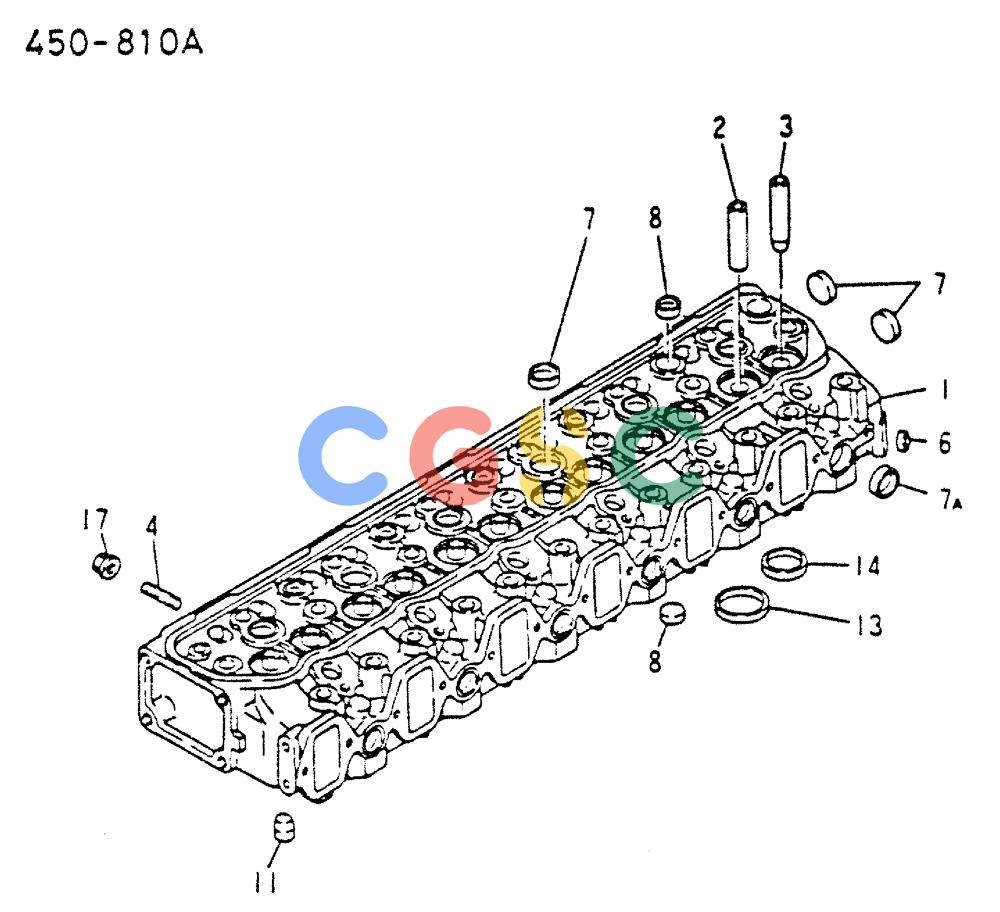

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-072) - CYLINDER HEAD REPAIR KIT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
757 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-17. | VAME997159 | [1] | CYLINDER HEAD | KOBW/O GLOW |
| 1. | VAME081570 | [1] | HEAD, CYL | |
| 2. | VAME031886 | [6] | GUIDE | KOBVALVE INLET |
| 3. | VAME031888 | [6] | GUIDE | KOBVALVE EXHUST |
| 4. | VAMH002174 | [12] | STUD | KOBEXHUST MANIFOLD M10x33mm Long |
| 6. | VAMS666132 | [6] | CAP | KOBCAP, SEALING 14 |
| 7. | VAMS666138 | [8] | CAP | KOBCAP, SEALING 28 |
| 7A. | VAMS666137 | [6] | CAP | KOBCAP, SEALING 25, Start Serial: 8912- |
| . . | VAMS666138 | [6] | CAP | KOBCAP, SEALING 28, Serial Range: --8911 |
| 8. | VAMS666136 | [11] | PLUG | KOBCAP, SEALING 22 |
| 11. | VAME011012 | [1] | GUIDE | KOBDIRECTOR |
| 13. | VAME013297 | [6] | SEAT, VALVE | KOBINSERT INLET, Start Serial: 8912- |
| . . | VAME011058 | [6] | SEAT, VALVE | KOBVALVE SEAT INLET, Serial Range: --8911 Superseded by part number: VAME013297 |
| 14. | VAME013188 | [6] | SEAT | KOBINSERT VALVE EXHUST, Start Serial: 8912- |
| . . | VAME029004 | [6] | SEAT | KOBVALVE SEAT EXHUST, Serial Range: --8911 Superseded by part number: VAME013188 |
| 17. | VAMH004054 | [12] | NUT | KOBFLANGE 10, FOR EXHUST MANIFOLD Superseded by part number: 134868A1 |
