久保田零件查询T02500 DRIVE CASE TRANSMISSIONEPC Kubota online

广数供应链运营团队, 15 02月, 2025，浏览： 390 次

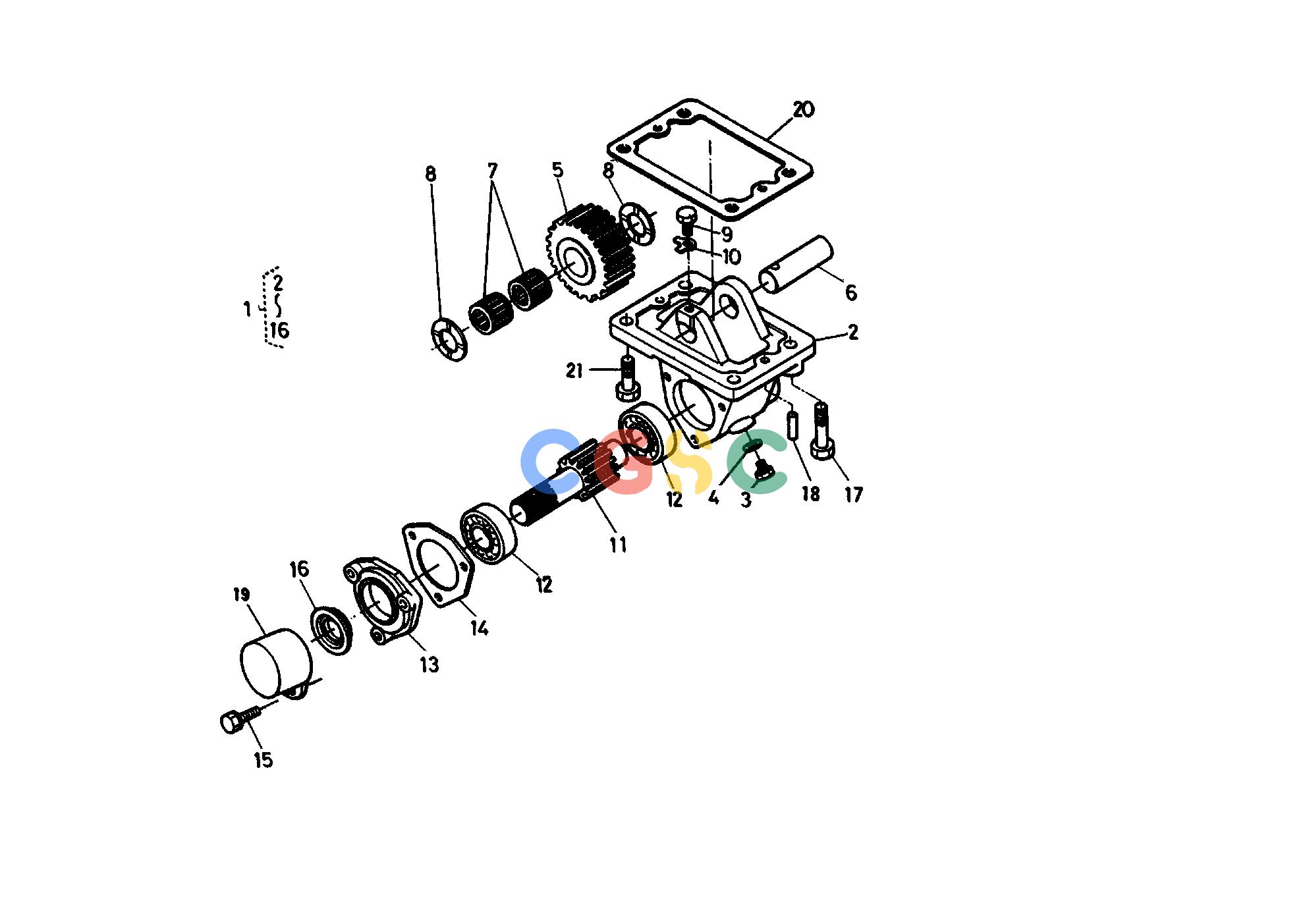

Pos.	Part No	Qty	Parts name	Comments
001.	6620421200	[1]	KIT B7100HST MID-PTO	REF.NO.002 TO 016; <=11219 0.0000(lbs); 0.000
001.	6620421202	[1]	KIT B7100HST MID-PTO	REF.NO.002 TO 016; =>10001 6.6000(lbs); 3.000
002.	9638025110	[1]	CASE DRIVE	3.9600(lbs); 1.800
003.	0633135016	[1]	PLUG	0.0880(lbs); 0.040
004.	0471701600	[1]	WASHER SEAL	0.0066(lbs); 0.003
005.	9638025120	[1]	GEAR 24T	; <=11219 0.0000(lbs); 0.000
005.	9638025123	[1]	GEAR 24T	; =>10001 1.5180(lbs); 0.690
006.	9638025130	[1]	SHAFT	0.3652(lbs); 0.166
007.	0882223015	[2]	BEARING NEEDLE	0.0550(lbs); 0.025
008.	9638025140	[2]	COLLAR	0.0308(lbs); 0.014
009.	0115050814	[1]	BOLT	0.0220(lbs); 0.010
010.	9638025150	[1]	WASHER	0.0066(lbs); 0.003
011.	9638025160	[1]	SHAFT	1.1220(lbs); 0.510
012.	0810106205	[2]	BEARING BALL	0.2640(lbs); 0.120
013.	9638025170	[1]	COVER CASE	0.4290(lbs); 0.195
014.	9638025180	[1]	GASKET	0.0044(lbs); 0.002
015.	0112050825	[3]	BOLT	0.0000(lbs); 0.000
016.	9638025190	[1]	SEAL OIL	0.0286(lbs); 0.013
017.	0112351040	[2]	BOLT	0.0660(lbs); 0.030
018.	0501200814	[2]	PIN STRAIGHT	0.0132(lbs); 0.006
018.	0501200816	[2]	PIN STRAIGHT	; =>10001 0.0154(lbs); 0.007
019.	6620421250	[1]	COVER MID-PTO	0.1540(lbs); 0.070
020.	6620421220	[1]	GASKET	0.0000(lbs); 0.000
021.	0112351028	[2]	BOLT	0.0550(lbs); 0.025
