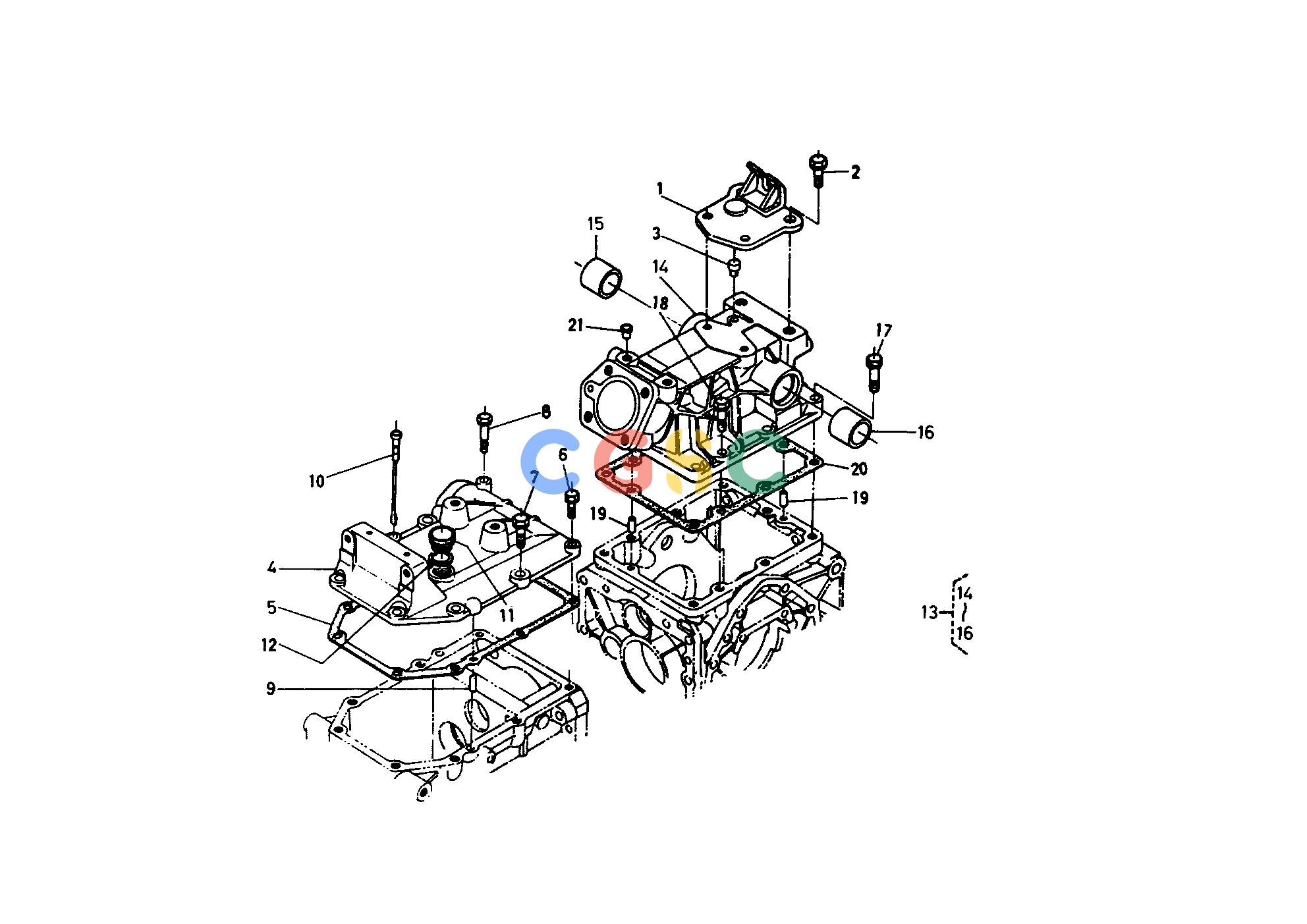

久保田零件查询T02600 CASE COVER TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
867 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6661111910
|
[1] |
BRACKET CHAIN
|
1.2540(lbs); 0.570
|
| 002. |
0112351230
|
[2] |
BOLT
|
0.0880(lbs); 0.040
|
| 003. |
6659111350
|
[1] |
BREATHER
|
0.0044(lbs); 0.002
|
| 004. |
6620412410
|
[1] |
COVER CASE FRONT
|
7.9200(lbs); 3.600
|
| 005. |
6620412450
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 006. |
0112050828
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 007. |
0112351035
|
[6] |
BOLT
|
0.0550(lbs); 0.025
|
| 008. |
0112050845
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 009. |
0501200816
|
[2] |
PIN STRAIGHT
|
0.0154(lbs); 0.007
|
| 010. |
6659111380
|
[1] |
GAUGE OIL
|
0.0220(lbs); 0.010
|
| 011. |
6659111460
|
[1] |
CAP
|
0.0352(lbs); 0.016
|
| 012. |
0471100400
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 012. |
0471702150
|
[1] |
GASKET
|
0.0088(lbs); 0.004
|
| 012. |
0471300400
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 013. |
6671112500
|
[1] |
ASSY COVER CASE REAR
|
0.0000(lbs); 0.000
|
| 014. |
6661112510
|
[1] |
COVER CASE REAR
|
8.4260(lbs); 3.830
|
| 015. |
6659136710
|
[1] |
BUSH
|
0.1078(lbs); 0.049
|
| 016. |
6659136720
|
[1] |
BUSH
|
0.0968(lbs); 0.044
|
| 017. |
0112351040
|
[3] |
BOLT
|
0.0660(lbs); 0.030
|
| 018. |
0112351035
|
[6] |
BOLT
|
0.0550(lbs); 0.025
|
| 019. |
0501200816
|
[2] |
PIN STRAIGHT
|
0.0154(lbs); 0.007
|
| 020. |
6661112520
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 021. |
6659154390
|
[2] |
PLUG 3
|
0.0022(lbs); 0.001
|
