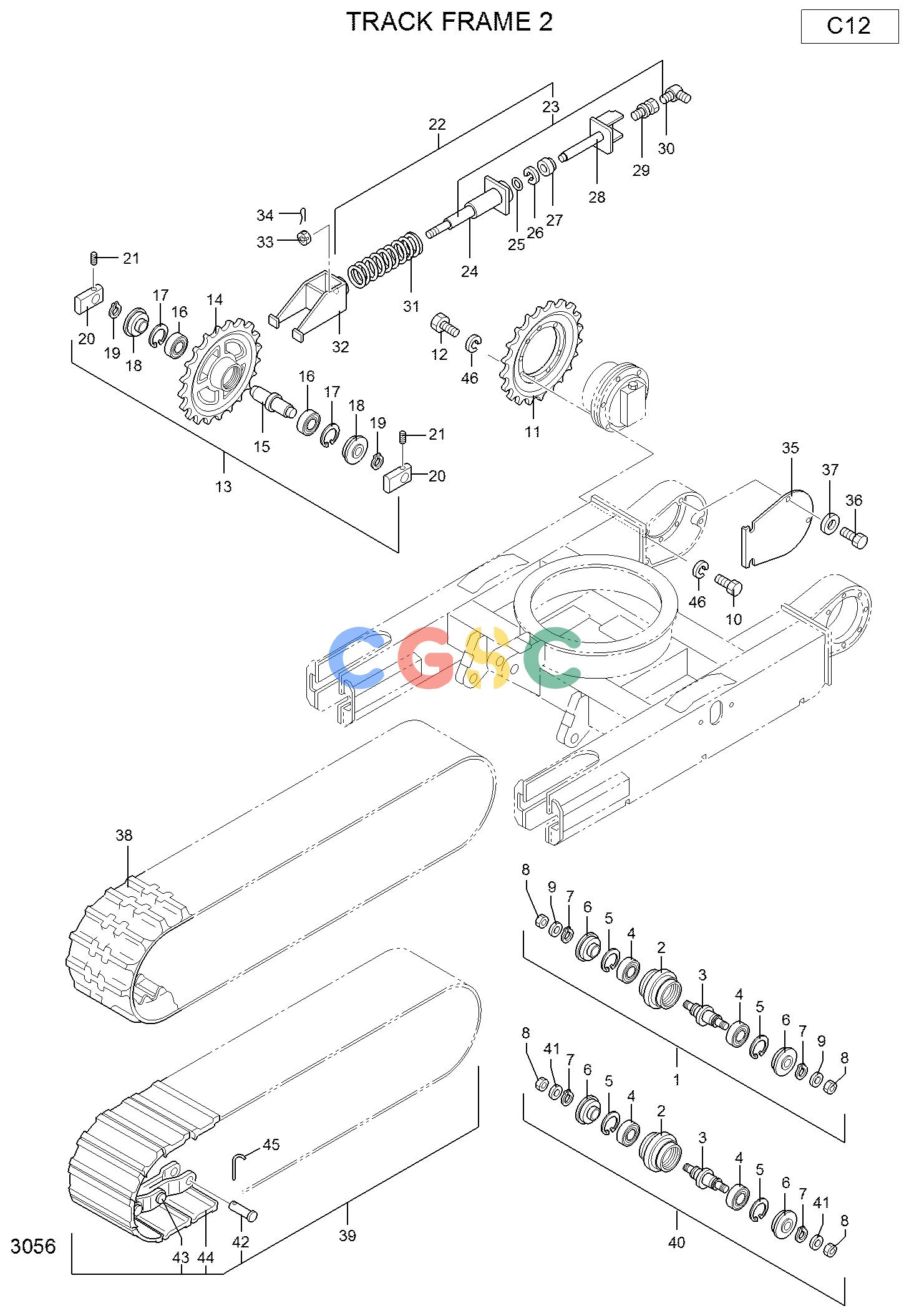

现代零件查询R75-7 TRACK FRAME 2EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
132 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-01530
|
[2] |
CASE-MOTOR
|
|
| 2. |
XJDH-00057
|
[8] |
BOLT
|
|
| 3. |
XJDH-00278
|
[8] |
WASHER
|
|
| 4. |
XJDH-01749
|
[2] |
MOTOR ASSY-DRIVE
|
|
| 5. |
XJDH-00094
|
[24] |
BOLT
|
|
| 6. |
XJDH-00283
|
[24] |
WASHER
|
|
| 7. |
XJDH-01529
|
[2] |
SPROCKET
|
|
| 8. |
XJDH-00093
|
[24] |
BOLT
|
|
| 9. |
XJDH-00282
|
[24] |
WASHER-H
|
|
| 10. |
XJDH-01236
|
[2] |
CARRIER ROLLER ASSY
|
|
| 11. |
XJDH-01835
|
[1] |
BEARING
|
|
| 12. |
XJDH-01237
|
[1] |
SHAFT
|
|
| 13. |
XJDH-01836
|
[1] |
SEAL-FLOATING
|
|
| 14. |
XJDH-01238
|
[1] |
ROLLER
|
|
| 15. |
XJDH-01233
|
[1] |
BUSHING
|
|
| 16. |
XJDH-01837
|
[1] |
CAP-B
|
|
| 17. |
XJDH-00115
|
[3] |
BOLT-SOCKET HEAD
|
|
| 18. |
XJDH-01838
|
[1] |
O-RING
|
|
| 19. |
XJDH-01045
|
[1] |
CAP-A
|
|
| 20. |
XJDH-00381
|
[1] |
PLUG
|
|
| 21. |
XJDH-00117
|
[4] |
BOLT-SOCKET HEAD
|
|
| 22. |
XJDH-00072
|
[8] |
BOLT
|
|
| 23. |
XJDH-00280
|
[8] |
WASHER
|
|
| 24. |
XJDH-01124
|
[2] |
IDLER-YOKE
|
|
| 25. |
XJDH-01117
|
[1] |
GREASE CYLINDER ASSY-RH
|
|
| 26. |
XJDH-01116
|
[1] |
GREASE CYLINDER ASSY-LH
|
|
| 27. |
XJDH-01123
|
[1] |
TUBE
|
|
| 28. |
XJDH-01118
|
[1] |
PISTON
|
|
| 29. |
XJDH-01119
|
[1] |
FRANGE
|
|
| 30. |
XJDH-01120
|
[1] |
NUT
|
|
| 31. |
XJDH-01121
|
[1] |
STOPPER
|
|
| 32. |
XJDH-01122
|
[1] |
SPACER
|
|
| 33. |
XJDH-00857
|
[1] |
SPRING
|
|
| 34. |
XJDH-00343
|
[1] |
O-RING
|
|
| 35. |
XJDH-00861
|
[2] |
RING-WEAR
|
|
| 36. |
XJDH-00862
|
[1] |
RING-BACK UP
|
|
| 37. |
XJDH-00860
|
[1] |
SEAL-PISTON
|
|
| 38. |
XJDH-00311
|
[1] |
RING-SNAP
|
|
| 39. |
XJDH-00377
|
[1] |
NIPPLE-GREASE 90
|
|
| 40. |
XJDH-00871
|
[1] |
VALVE
|
|
| 41. |
XJDH-00041
|
[2] |
BOLT
|
|
| 42. |
XJDH-00241
|
[2] |
WASHER-SPRING
|
|
| 43. |
XJDH-00865
|
[10] |
TRACK ROLLER ASSY(STEEL)
|
|
| 44. |
XJDH-00865
|
[4] |
TRACK ROLLER ASSY(STEEL)
|
|
| 45. |
XJDH-02866
|
[1] |
SHAFT-TRACK ROLLER
|
|
| 46. |
XJDH-02868
|
[2] |
COLLAR
|
|
| 47. |
XJDH-02865
|
[1] |
ROLLER
|
|
| 48. |
XJDH-00379
|
[1] |
PLUG
|
|
| 49. |
XJDH-02869
|
[2] |
SEAL-FLOATING
|
|
| 50. |
XJDH-02867
|
[2] |
BUSHING
|
|
| 51. |
XJDH-02863
|
[2] |
O-RING
|
|
| 52. |
XJDH-02864
|
[2] |
PIN-SPRING
|
|
| 53. |
XJDH-00082
|
[40] |
BOLT
|
|
| 54. |
XJDH-00282
|
[40] |
WASHER-H
|
|
| 55. |
XJDH-00866
|
[6] |
T/ROLLER ASSY(RUBBER)
|
|
| 56. |
XJDH-00869
|
[1] |
SHAFT-TRACK ROLLER
|
|
| 57. |
XJDH-00868
|
[2] |
COLLAR
|
|
| 58. |
XJDH-00867
|
[1] |
ROLLER-TRACK
|
|
| 59. |
XJDH-00379
|
[1] |
PLUG
|
|
| 60. |
XJDH-02869
|
[2] |
SEAL-FLOATING
|
|
| 61. |
XJDH-00870
|
[2] |
BUSHING
|
|
| 62. |
XJDH-02863
|
[2] |
O-RING
|
|
| 63. |
XJDH-01839
|
[2] |
PIN-SPRING
|
|
| 64. |
XJDH-01763
|
[2] |
CRAWLER-RUBBER
|
|
| 65. |
XJDH-01764
|
[2] |
CRAWLER ASSY(STEEL)
|
|
| 66. |
XJDH-01840
|
[44] |
PLATE-SHOE
|
|
| 67. |
XJDH-01841
|
[1] |
LINK-MASTER(L)
|
|
| 68. |
XJDH-01842
|
[1] |
LINK-MASTER(RH)
|
|
| 69. |
XJDH-01843
|
[43] |
LINK(L)
|
|
| 70. |
XJDH-01844
|
[43] |
LINK(R)
|
|
| 71. |
XJDH-01845
|
[43] |
BUSHING
|
|
| 72. |
XJDH-01846
|
[1] |
PIN-COTTER
|
|
| 73. |
XJDH-01847
|
[1] |
PIN-MASTER
|
|
| 74. |
XJDH-01848
|
[43] |
PIN
|
|
| 75. |
XJDH-01849
|
[176] |
BOLT
|
|
| 76. |
XJDH-01850
|
[176] |
NUT
|
|
| 77. |
XJDH-01532
|
[2] |
GUIDE ASSY(R)
|
|
| 78. |
XJDH-01533
|
[2] |
GUIDE ASSY(L)
|
|
| 79. |
XJDH-00081
|
[12] |
BOLT
|
|
| 80. |
XJDH-00282
|
[12] |
WASHER-H
|
|
| 81. |
XJDH-02861
|
[2] |
FRONT IDLER ASSY
|
|
| 82. |
XJDH-01851
|
[1] |
IDLER
|
|
| 83. |
XJDH-01852
|
[1] |
SHAFT
|
|
| 84. |
XJDH-01853
|
[1] |
HUB(LH)
|
|
| 85. |
XJDH-01854
|
[1] |
HUB(RH)
|
|
| 86. |
XJDH-01855
|
[2] |
BUSHING
|
|
| 87. |
XJDH-01856
|
[2] |
SEAL-OIL
|
|
| 88. |
XJDH-01857
|
[2] |
O-RING
|
|
| 89. |
XJDH-01858
|
[2] |
BOLT
|
|
| 90. |
XJDH-01859
|
[2] |
WASHER
|
|
| 91. |
XJDH-01860
|
[2] |
NUT
|
|
| 92. |
XJDH-01861
|
[1] |
PLUG
|
|
