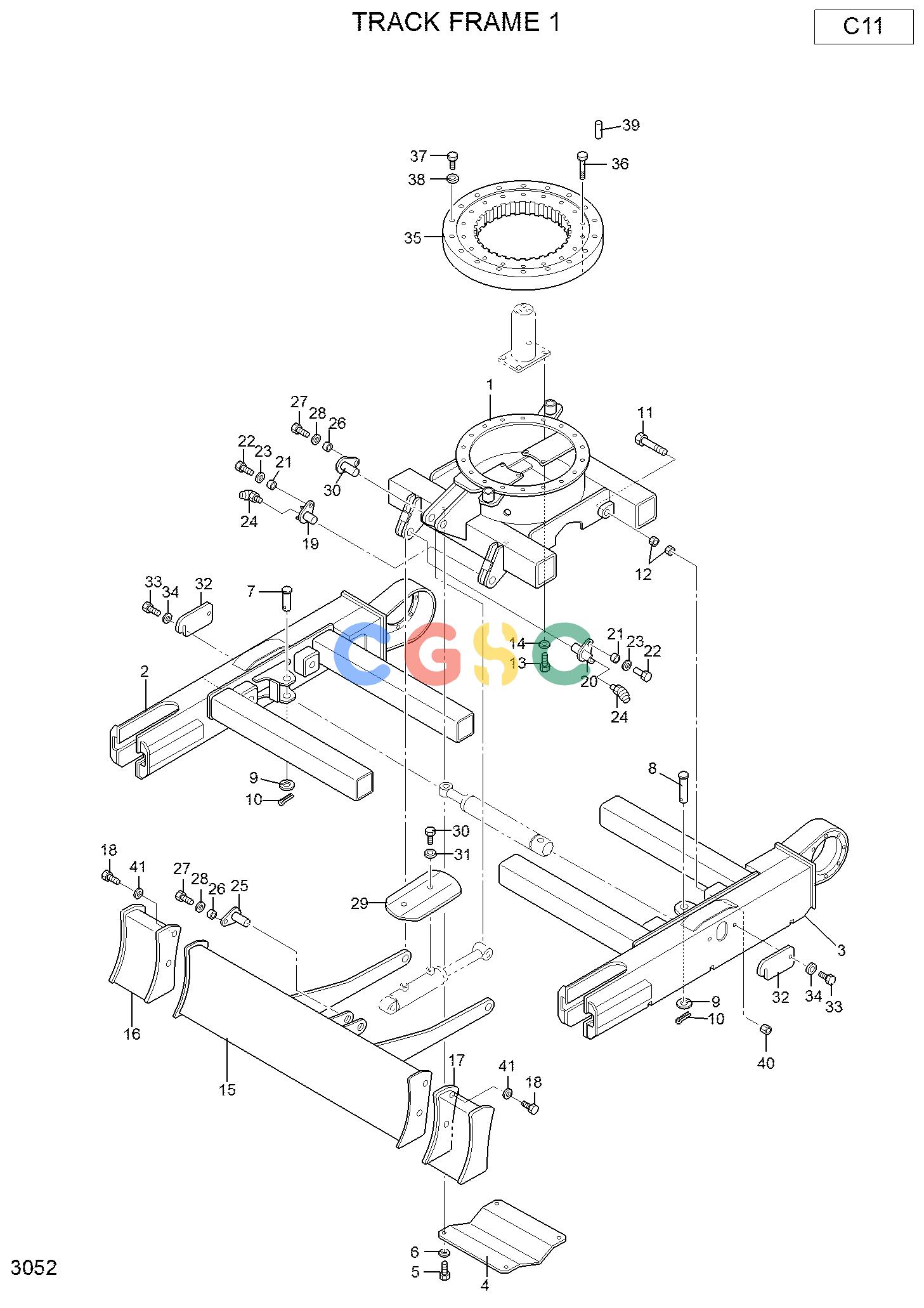

现代零件查询R75-7 TRACK FRAME 1EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
624 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-01534
|
[1] |
CHASSIS
|
|
| 2. |
XJDH-01761
|
[1] |
BEARING-SWING
|
|
| 3. |
XJDH-01528
|
[1] |
RING-TURNING
|
|
| 4. |
XJDH-00097
|
[30] |
BOLT
|
|
| 5. |
XJDH-01544
|
[2] |
PIN-KNOCK
|
|
| 6. |
XJDH-00097
|
[20] |
BOLT
|
|
| 7. |
XJDH-00096
|
[1] |
BOLT
|
|
| 8. |
XJDH-00283
|
[21] |
WASHER
|
|
| 9. |
XJDH-01391
|
[2] |
COVER-GREASE SUPPLY
|
|
| 10. |
XJDH-00057
|
[4] |
BOLT
|
|
| 11. |
XJDH-00278
|
[4] |
WASHER
|
|
| 12. |
XJDH-01535
|
[1] |
DOZER ASSY
|
|
| 13. |
XJDH-01527
|
[1] |
COVER
|
|
| 14. |
XJDH-00069
|
[2] |
BOLT
|
|
| 15. |
XJDH-00280
|
[2] |
WASHER
|
|
| 16. |
XJDH-01536
|
[1] |
PIN ASSY-DOZER CYL
|
|
| 17. |
XJDH-01538
|
[1] |
PIN-LH
|
|
| 18. |
XJDH-01537
|
[1] |
PIN-RH
|
|
| 19. |
XJDH-00377
|
[2] |
NIPPLE-GREASE 90
|
|
| 20. |
XJDH-01661
|
[4] |
COLLAR
|
|
| 21. |
XJDH-00070
|
[4] |
BOLT
|
|
| 22. |
XJDH-00280
|
[4] |
WASHER
|
|
| 23. |
XJDH-00071
|
[4] |
BOLT
|
|
| 24. |
XJDH-00280
|
[4] |
WASHER
|
|
| 25. |
XJDH-01239
|
[1] |
PLATE-STOPPER
|
|
| 26. |
XJDH-00091
|
[2] |
BOLT
|
|
| 27. |
XJDH-00280
|
[2] |
WASHER
|
|
| 28. |
XJDH-01531
|
[1] |
COVER
|
|
| 29. |
XJDH-00057
|
[4] |
BOLT
|
|
| 30. |
XJDH-00278
|
[4] |
WASHER
|
|
| 31. |
XJDH-01674
|
[1] |
PIN
|
|
