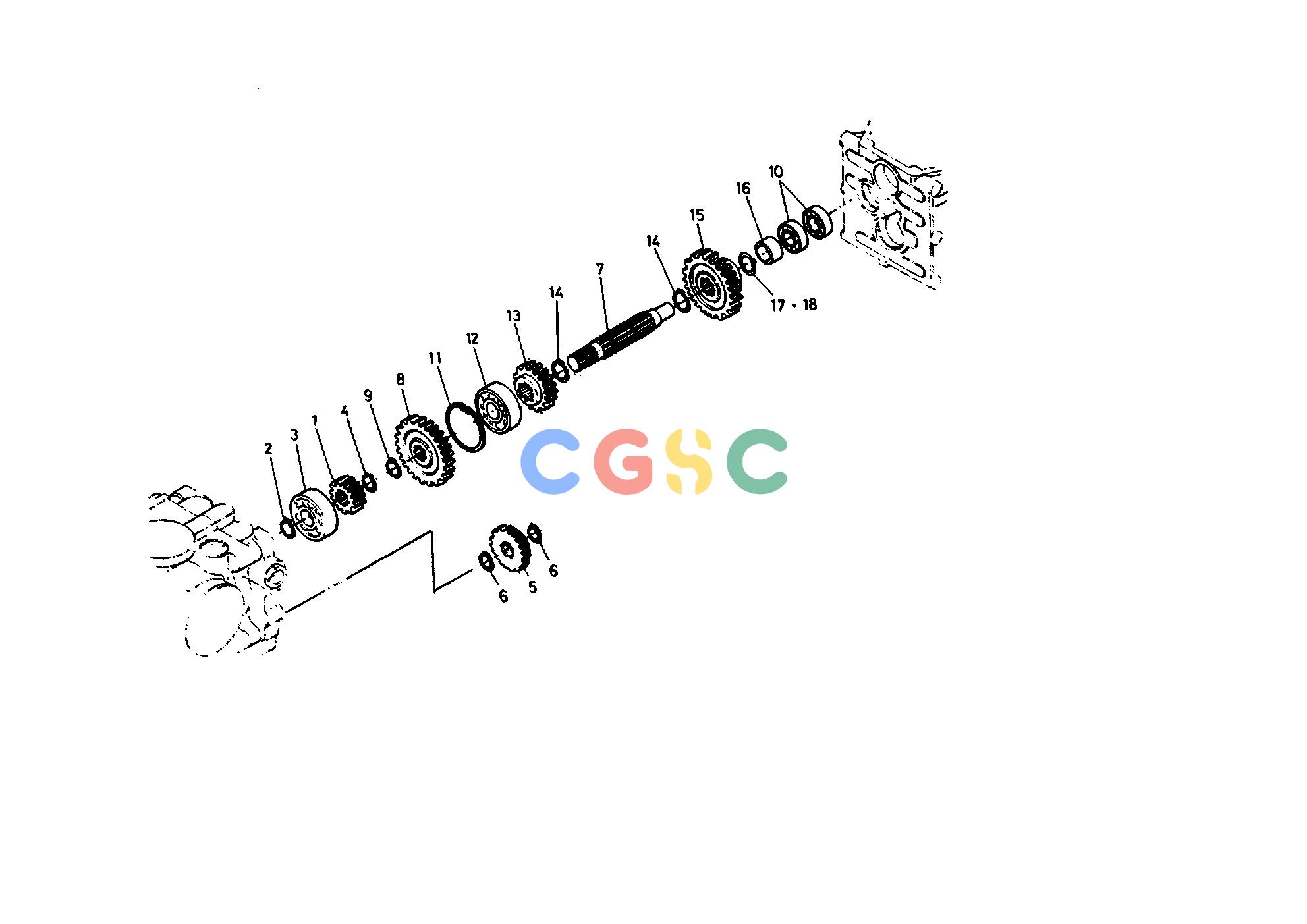

久保田零件查询T03000 1ST SHAFT 4TH SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
607 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6620414120
|
[1] |
GEAR SPUR 13
|
0.1870(lbs); 0.085
|
| 002. |
0461200200
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 003. |
0810106304
|
[1] |
BEARING BALL
|
0.3212(lbs); 0.146
|
| 004. |
0461200190
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 005. |
6620414150
|
[1] |
GEAR SPUR 16
|
0.0000(lbs); 0.000
|
| 006. |
0461200200
|
[2] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 007. |
6620414413
|
[1] |
SHAFT 4
|
0.0000(lbs); 0.000
|
| 008. |
6620414420
|
[1] |
GEAR SPUR 24
|
0.6820(lbs); 0.310
|
| 009. |
0461200200
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 010. |
0810106202
|
[2] |
BEARING BALL
|
0.0968(lbs); 0.044
|
| 011. |
0461100520
|
[1] |
CIR-CLIP INTERNAL
|
0.0198(lbs); 0.009
|
| 012. |
0810106304
|
[1] |
BEARING BALL
|
0.3212(lbs); 0.146
|
| 013. |
6620414430
|
[1] |
GEAR SPUR 15
|
0.3190(lbs); 0.145
|
| 014. |
0461200200
|
[2] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 015. |
6620414440
|
[1] |
GEAR SPUR 23
|
0.7700(lbs); 0.350
|
| 016. |
6661114470
|
[1] |
COLLAR
|
0.0418(lbs); 0.019
|
| 017. |
6620481410
|
[1] |
SHIM A
|
0.0022(lbs); 0.001
|
| 018. |
6620481420
|
[1] |
SHIM B
|
0.0022(lbs); 0.001
|
