纽荷兰零件查询(65B) - MOTORGRADERS (A2.56[001]) - MUFFLER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
980 次

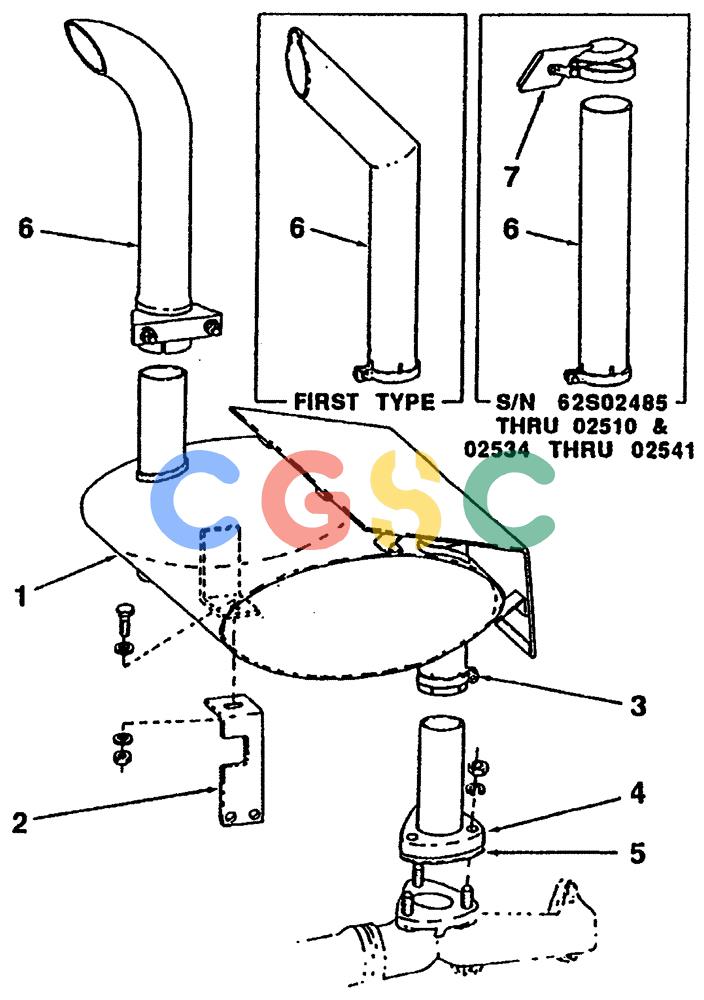

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73107574 | [1] | MUFFLER | CMI |
| . . | 70927173 | [1] | SCREW | BHBCAPSCREW,3/8»NCX1-1/8"" |
| . . | 70630753 | [2] | WASHER | BHBHASHER |
| . . | 70900367 | [1] | NUT | CMI3/8""NC Superseded by part number: 87861 |
| 2. | 73107012 | [1] | ANGLE | CMI |
| 3. | 70694905 | [1] | COLLAR | CMICLAMP Superseded by part number: 70930367 |
| . . | 70930367 | [1] | COLLAR | CMICLAMP |
| 4. | 73107011 | [1] | RIGID TUBE | CMITUBE |
| . . | 10516870 | [3] | LOCK WASHER | MKTLOCKWASHER,M10 Superseded by part number: 10571873 |
| . . | 12164721 | [3] | NUT,M10 x 1.25, Cl 10 | TTF |
| 5. | 73107008 | [1] | GASKET | CMI |
| 6. | 73112856 | [1] | RIGID TUBE | CMIPIPE,ORIGINAL EQUIP. Superseded by part number: 73129719, 73046855 |
| . . | 73129719 | [1] | EXTENSION | CMIPIPE, REPLACEMENT |
| . . | 73046855 | [1] | COLLAR | CMICLAMP |
| . . | 73123688 | [1] | EXTENSION | CMIPIPE, UN ITS #62802485 Superseded by part number: 73129719, 73046855 |
| 7. | 73123900 | [1] | COVER | CMICAP, UN IT #62502485 |
