纽荷兰零件查询(65B) - MOTORGRADERS (A2.54[001]) - MANIFOLDS - INTAKE & EXHAUST New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
824 次

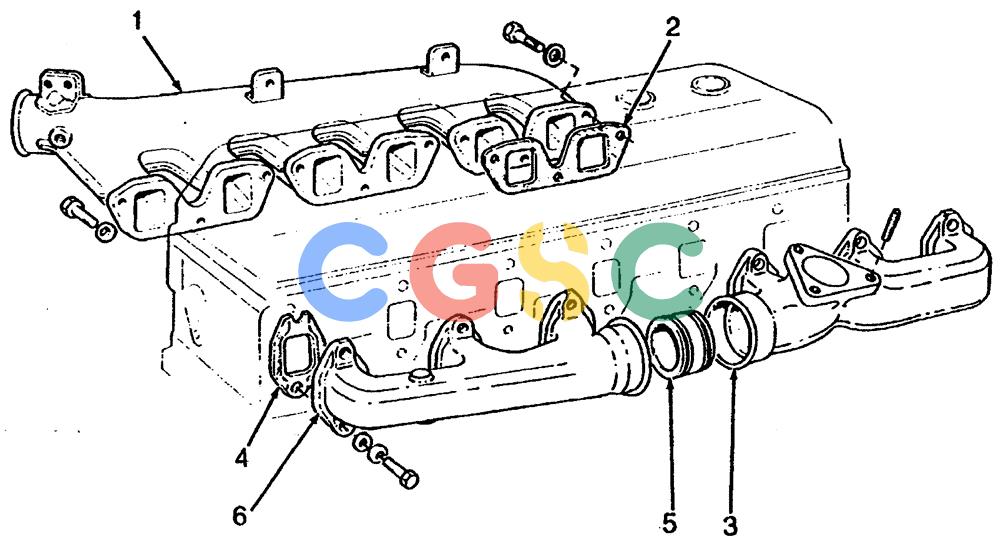

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4601822 | [1] | INLET MANIFOLD | MODMANIFOLD, INTAKE |
| . . | 16043421 | [9] | BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd | TTFBOLT, Hex, M8 x 20, 8.8 Superseded by part number: 16043424 |
| . . | 11198071 | [9] | BELLEVILLE WASHER,Belleville, M8.4 | TORWASHER, SPRING, Belleville, M8.4 Superseded by part number: |
| 2. | 4601827 | [3] | GASKET | MOD Superseded by part number: 4851921 |
| 3. | 4658344 | [1] | EXHAUST MANIFOLD | MODMANIFOLD, EXHAUST |
| . . | 16043821 | [6] | SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd | BASBOLT, Hex, M8 x 30, 8.8 Superseded by part number: 16605724 |
| . . | 10519601 | [6] | WASHER,8.15mm ID x 17mm OD x 2mm Thk | BHB Superseded by part number: 17094914 |
| . . | 13449820 | [3] | STUD | MKTM10X1.25X35MM Superseded by part number: 13449830 |
| 4. | 4601981 | [6] | MANIFOLD GASKET | MOD Superseded by part number: 4813566 |
| 5. | 4602270 | [1] | RING | FOR |
| 6. | 4658343 | [1] | EXHAUST MANIFOLD | JESMANIFOLD, EXHAUST Superseded by part number: 4817497, 4800842 |
