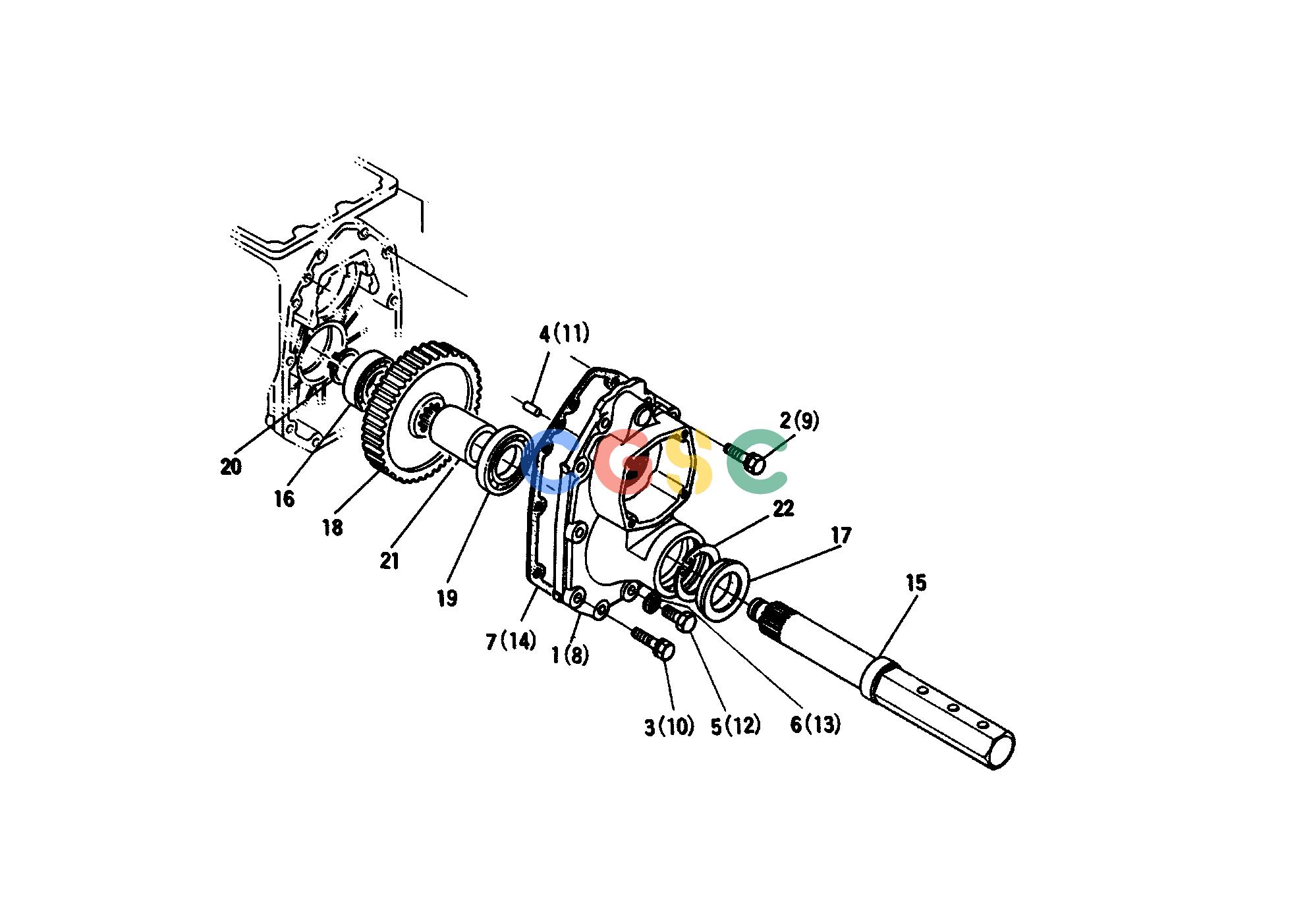

久保田零件查询T02700 AXLE CASE REAR AXLE/REAR WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
685 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6661112614
|
[1] |
CASE AXLE LH
|
0.0000(lbs); 0.000
|
| 002. |
0112351035
|
[4] |
BOLT
|
0.0550(lbs); 0.025
|
| 003. |
0112351250
|
[6] |
BOLT
|
0.1210(lbs); 0.055
|
| 004. |
0501200816
|
[2] |
PIN STRAIGHT
|
0.0154(lbs); 0.007
|
| 005. |
0633135012
|
[1] |
PLUG
|
0.0528(lbs); 0.024
|
| 006. |
0471701200
|
[1] |
WASHER SEAL
|
0.0044(lbs); 0.002
|
| 007. |
6659111240
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 008. |
6661112714
|
[1] |
CASE AXLE RH
|
0.0000(lbs); 0.000
|
| 009. |
0112351035
|
[4] |
BOLT
|
0.0550(lbs); 0.025
|
| 010. |
0112351250
|
[6] |
BOLT
|
0.1210(lbs); 0.055
|
| 011. |
0501200816
|
[2] |
PIN STRAIGHT
|
0.0154(lbs); 0.007
|
| 012. |
0633135012
|
[1] |
PLUG
|
0.0528(lbs); 0.024
|
| 013. |
0471701200
|
[1] |
WASHER SEAL
|
0.0044(lbs); 0.002
|
| 014. |
6659111240
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 015. |
6661117114
|
[2] |
AXLE REAR
|
10.2080(lbs); 4.640
|
| 016. |
0810106306
|
[2] |
BEARING BALL
|
0.7700(lbs); 0.350
|
| 017. |
6661117120
|
[2] |
SEAL OIL
|
0.1980(lbs); 0.090
|
| 018. |
6661117130
|
[2] |
GEAR SPUR 55
|
5.2800(lbs); 2.400
|
| 019. |
0810106208
|
[2] |
BEARING BALL
|
0.7810(lbs); 0.355
|
| 020. |
0461200300
|
[2] |
CIR-CLIP EXTERNAL
|
0.0066(lbs); 0.003
|
| 021. |
6661117143
|
[2] |
COLLAR
|
1.1330(lbs); 0.515
|
| 022. |
0461100800
|
[2] |
CIR-CLIP INTERNAL
|
0.0440(lbs); 0.020
|
