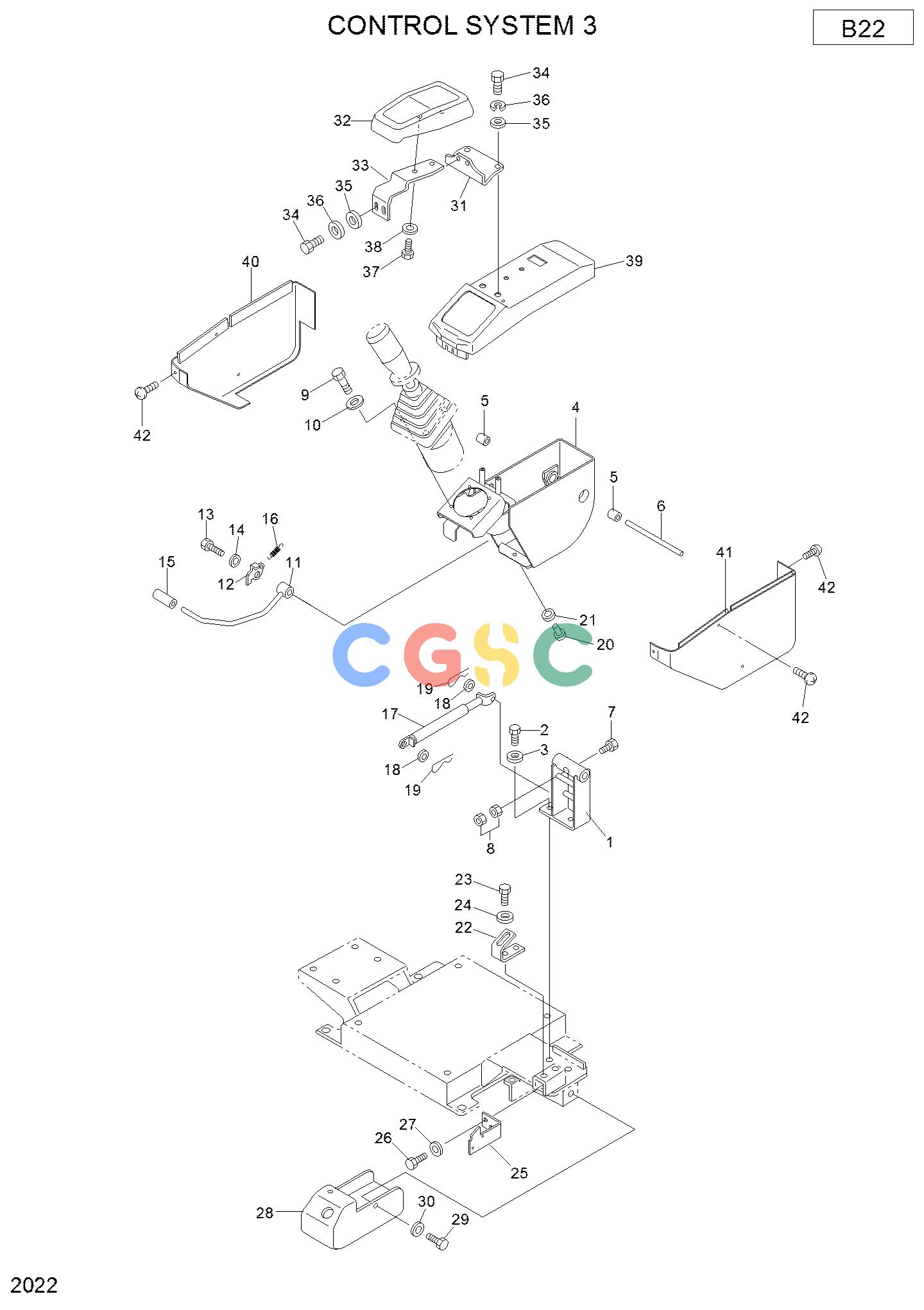

现代零件查询R75-7 CONTROL SYSTEM 3EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
215 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-01355
|
[1] |
BRACKET-STAND
|
|
| 2. |
XJDH-00057
|
[2] |
BOLT
|
|
| 3. |
XJDH-00278
|
[2] |
WASHER
|
|
| 4. |
XJDH-01597
|
[1] |
STAND-LEVER(LH)
|
|
| 5. |
XJDH-00319
|
[2] |
BEARING-DRY
|
|
| 6. |
XJDH-01599
|
[1] |
BAR
|
|
| 7. |
XJDH-00106
|
[1] |
BOLT
|
|
| 8. |
XJDH-00184
|
[2] |
NUT
|
|
| 9. |
XJDH-00024
|
[4] |
BOLT
|
|
| 10. |
XJDH-00274
|
[4] |
WASHER
|
|
| 11. |
XJDH-01245
|
[1] |
LEVER-LOCK
|
|
| 12. |
XJDH-01244
|
[1] |
PLATE
|
|
| 13. |
XJDH-00035
|
[1] |
BOLT
|
|
| 14. |
XJDH-00262
|
[1] |
WASHER
|
|
| 15. |
XJDH-01049
|
[1] |
GRIP
|
|
| 16. |
XJDH-01405
|
[1] |
SPRING-RETURN
|
|
| 17. |
XJDH-01247
|
[1] |
DAMPER
|
|
| 18. |
XJDH-00278
|
[2] |
WASHER
|
|
| 19. |
XJDH-00297
|
[2] |
PIN-SPLIT
|
|
| 20. |
XJDH-01209
|
[1] |
BOLT-PUSH
|
|
| 21. |
XJDH-00190
|
[2] |
NUT
|
|
| 22. |
XJDH-01404
|
[1] |
PLATE-LOCK
|
|
| 23. |
XJDH-00035
|
[2] |
BOLT
|
|
| 24. |
XJDH-00276
|
[2] |
WASHER
|
|
| 25. |
XJDH-01484
|
[1] |
BRACKET-SWITCH
|
|
| 26. |
XJDH-00035
|
[2] |
BOLT
|
|
| 27. |
XJDH-00276
|
[2] |
WASHER
|
|
| 28. |
XJDH-02424
|
[1] |
COWL
|
|
| 29. |
XJDH-00034
|
[3] |
BOLT
|
|
| 30. |
XJDH-00276
|
[3] |
WASHER
|
|
| 31. |
XJDH-01604
|
[1] |
BRACKET
|
|
| 32. |
XJDH-02442
|
[1] |
REST-HAND
|
|
| 33. |
XJDH-02441
|
[1] |
BRACKET(L)
|
|
| 34. |
XJDH-00013
|
[4] |
BOLT
|
|
| 35. |
XJDH-00253
|
[4] |
WASHER
|
|
| 36. |
XJDH-00238
|
[4] |
WASHER-SPRING
|
|
| 37. |
XJDH-00034
|
[2] |
BOLT
|
|
| 38. |
XJDH-00276
|
[2] |
WASHER
|
|
| 39. |
XJDH-02436
|
[1] |
COVER(L)
|
|
| 40. |
XJDH-01602
|
[1] |
COVER
|
|
| 41. |
XJDH-01603
|
[1] |
COVER
|
|
| 42. |
XJDH-00228
|
[8] |
SCREW-PAN HEAD
|
|
