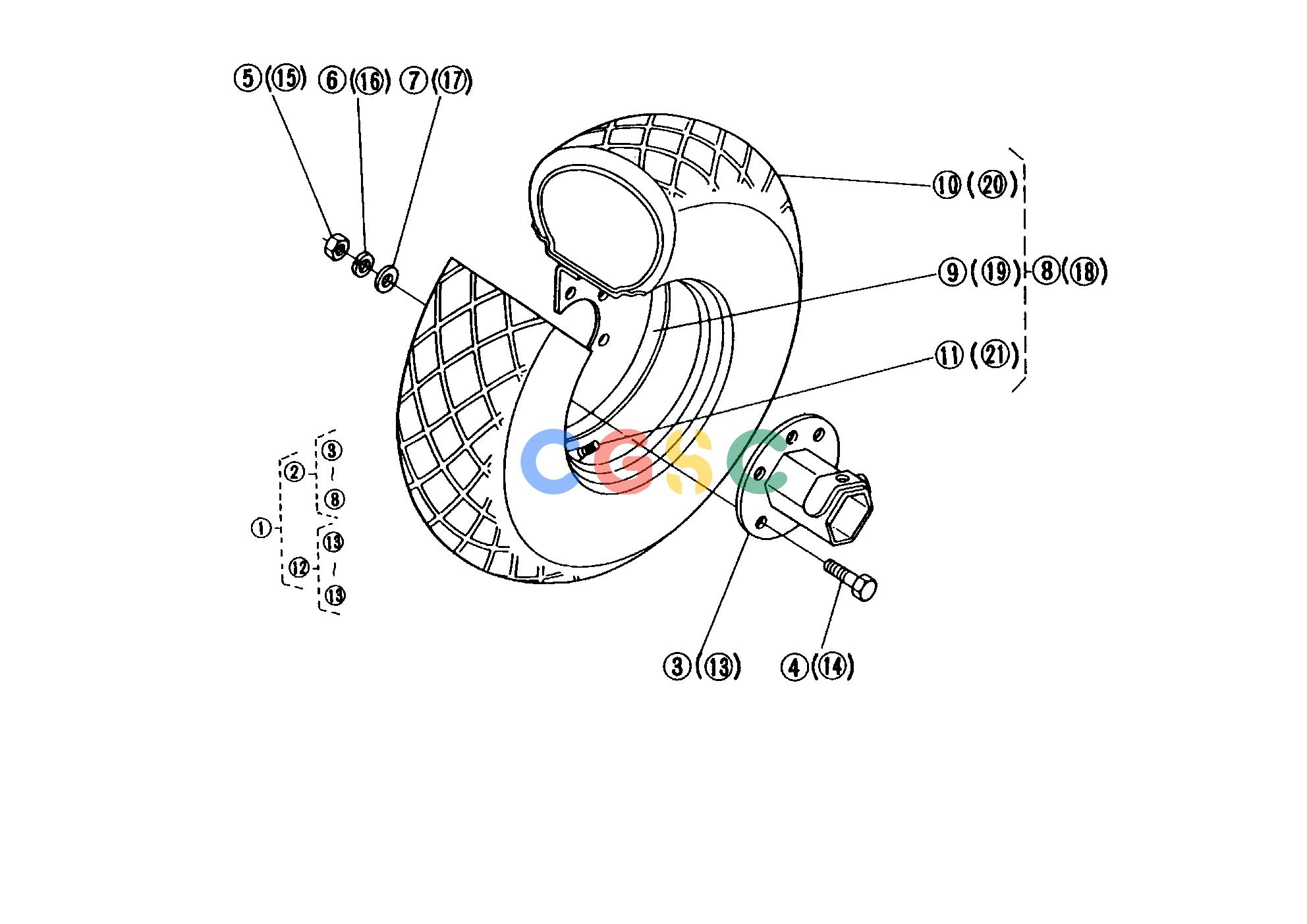

久保田零件查询T07500 REAR WHEEL [DPT EPT] REAR AXLE/REAR WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
516 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
9601660120
|
[1] |
ASSY WHEEL
|
136.4000(lbs); 62.00
|
| 002. |
9601661020
|
[1] |
ASSY WHEEL LH
|
74.8000(lbs); 34.000
|
| 003. |
6670417150
|
[1] |
HUB WHEEL
|
5.7200(lbs); 2.600
|
| 004. |
0107351435
|
[6] |
BOLT
|
0.1386(lbs); 0.063
|
| 005. |
0207650140
|
[6] |
NUT
|
0.0484(lbs); 0.022
|
| 006. |
0451250140
|
[6] |
WASHER SPRING
|
0.0154(lbs); 0.007
|
| 007. |
0401350140
|
[6] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 008. |
9601661010
|
[1] |
ASSY WHEEL LH
|
0.0000(lbs); 0.000
|
| 009. |
9601661110
|
[1] |
WHEEL
|
30.8000(lbs); 14.000
|
| 010. |
9601661130
|
[1] |
TIRE
|
31.6800(lbs); 14.400
|
| 011. |
3415911850
|
[1] |
VALVE TIRE
|
0.0286(lbs); 0.013
|
| 012. |
9601661200
|
[1] |
ASSY WHEEL RH
|
75.6800(lbs); 34.400
|
| 013. |
6670417150
|
[1] |
HUB WHEEL
|
5.7200(lbs); 2.600
|
| 014. |
0107351435
|
[6] |
BOLT
|
0.1386(lbs); 0.063
|
| 015. |
0207650140
|
[6] |
NUT
|
0.0484(lbs); 0.022
|
| 016. |
0451250140
|
[6] |
WASHER SPRING
|
0.0154(lbs); 0.007
|
| 017. |
0401350140
|
[6] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 018. |
9601661100
|
[1] |
ASSY WHEEL RH
|
0.0000(lbs); 0.000
|
| 019. |
9601661110
|
[1] |
WHEEL
|
30.8000(lbs); 14.000
|
| 020. |
9601661130
|
[1] |
TIRE
|
31.6800(lbs); 14.400
|
| 021. |
3415911850
|
[1] |
VALVE TIRE
|
0.0286(lbs); 0.013
|
