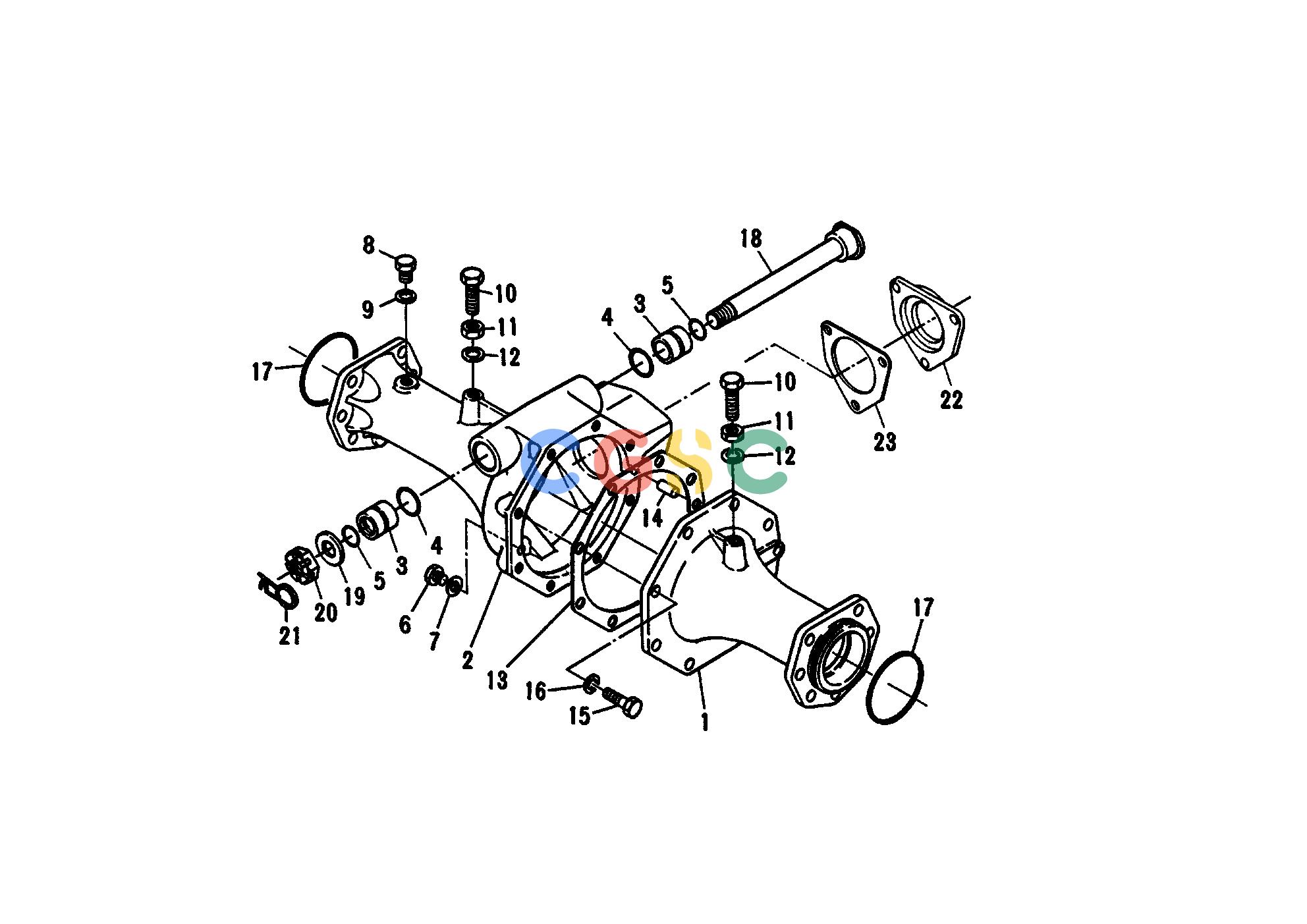

久保田零件查询T06200 FRONT AXLE ARM [DP] OLD TYPE FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
605 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6712156110
|
[1] |
ARM FRONT AXLE LH
|
12.3200(lbs); 5.600
|
| 002. |
6620456120
|
[1] |
ARM FRONT AXLE RH
|
19.8000(lbs); 9.000
|
| 003. |
6659156120
|
[2] |
BUSH
|
0.1628(lbs); 0.074
|
| 004. |
0481150250
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 005. |
0481100200
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 006. |
0633135010
|
[1] |
PLUG
|
0.0264(lbs); 0.012
|
| 007. |
0471701000
|
[1] |
WASHER SEAL
|
0.0022(lbs); 0.001
|
| 008. |
0633135012
|
[1] |
PLUG
|
0.0528(lbs); 0.024
|
| 009. |
0471701200
|
[1] |
WASHER SEAL
|
0.0044(lbs); 0.002
|
| 010. |
6659156280
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 011. |
0211250120
|
[2] |
NUT
|
0.0154(lbs); 0.007
|
| 012. |
0451250120
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 013. |
6712156130
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 014. |
0501201020
|
[1] |
PIN STRAIGHT
|
0.0286(lbs); 0.013
|
| 015. |
0115351028
|
[8] |
BOLT
|
0.0440(lbs); 0.020
|
| 016. |
0451250100
|
[8] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 017. |
0481110750
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 018. |
6680256110
|
[1] |
PIN CENTER
|
1.2760(lbs); 0.580
|
| 019. |
0401150180
|
[1] |
WASHER PLAIN
|
0.0264(lbs); 0.012
|
| 020. |
0237250180
|
[1] |
NUT SLOTTED
|
0.0418(lbs); 0.019
|
| 021. |
6661157150
|
[1] |
SPRING SET
|
0.0440(lbs); 0.020
|
| 022. |
6659156183
|
[1] |
COVER
|
0.9130(lbs); 0.415
|
| 023. |
6659156172
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
