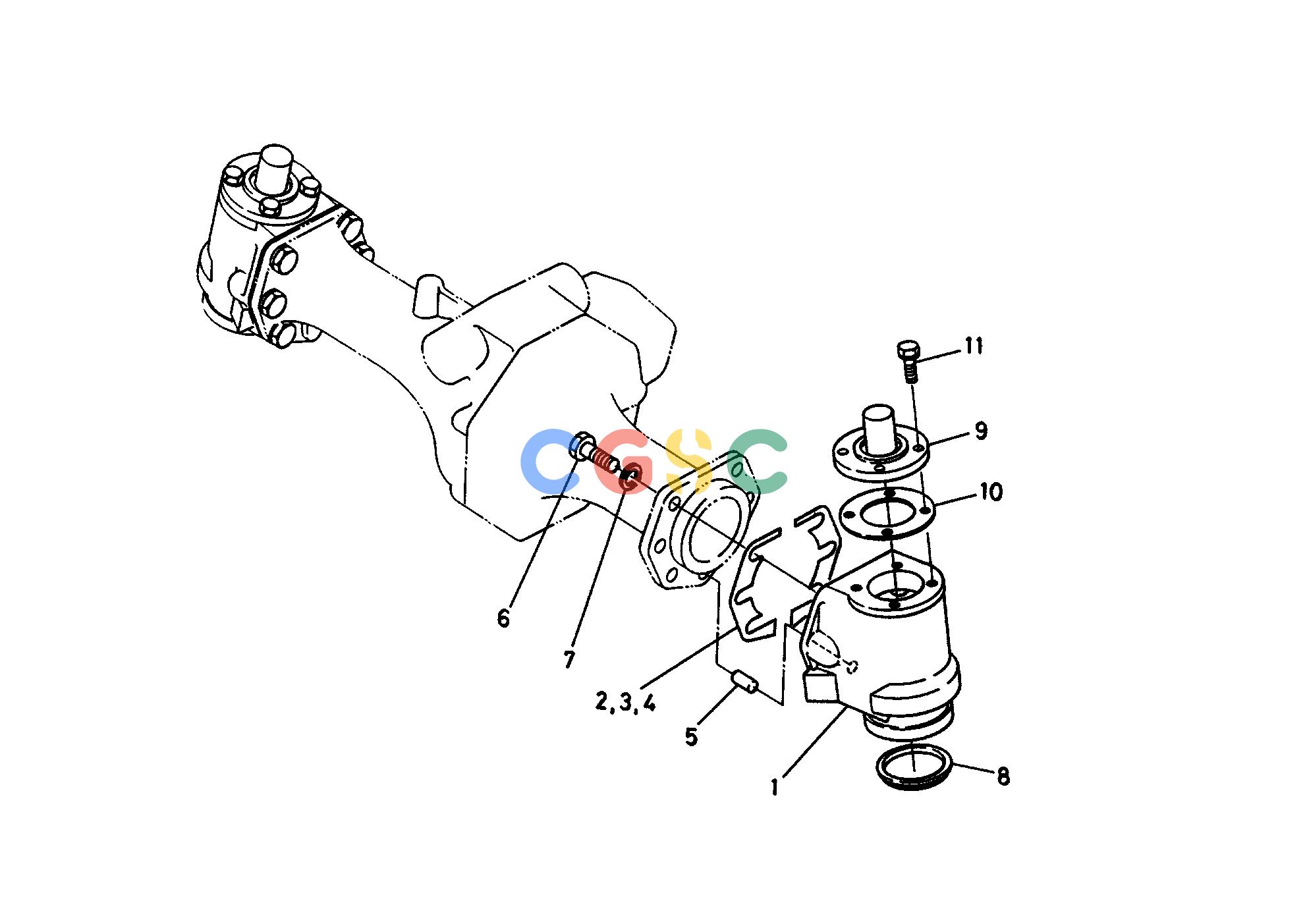

久保田零件查询T06300 BEVEL GEAR CASE [DP] OLD TYPE FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
1010 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6712156210
|
[2] |
CASE BEVEL GEAR
|
5.7200(lbs); 2.600
|
| 002. |
6712156220
|
[4] |
SHIM 1
|
0.0000(lbs); 0.000
|
| 003. |
6712156230
|
[4] |
SHIM 2
|
0.0088(lbs); 0.004
|
| 004. |
6712156240
|
[4] |
SHIM 3
|
0.0066(lbs); 0.003
|
| 005. |
0501201020
|
[2] |
PIN STRAIGHT
|
0.0286(lbs); 0.013
|
| 006. |
0115351228
|
[12] |
BOLT
|
0.0748(lbs); 0.034
|
| 007. |
0451250120
|
[12] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 008. |
6712156250
|
[2] |
SEAL DUST
|
0.0022(lbs); 0.001
|
| 009. |
6712156260
|
[2] |
SUPPORT KNUCKLE ARM
|
0.8668(lbs); 0.394
|
| 009. |
6712156263
|
[2] |
SUPPORT KNUCKLE ARM
|
0.8800(lbs); 0.400
|
| 010. |
6712156270
|
[2] |
GASKET
|
0.0000(lbs); 0.000
|
| 011. |
0112350822
|
[8] |
BOLT
|
0.0264(lbs); 0.012
|
