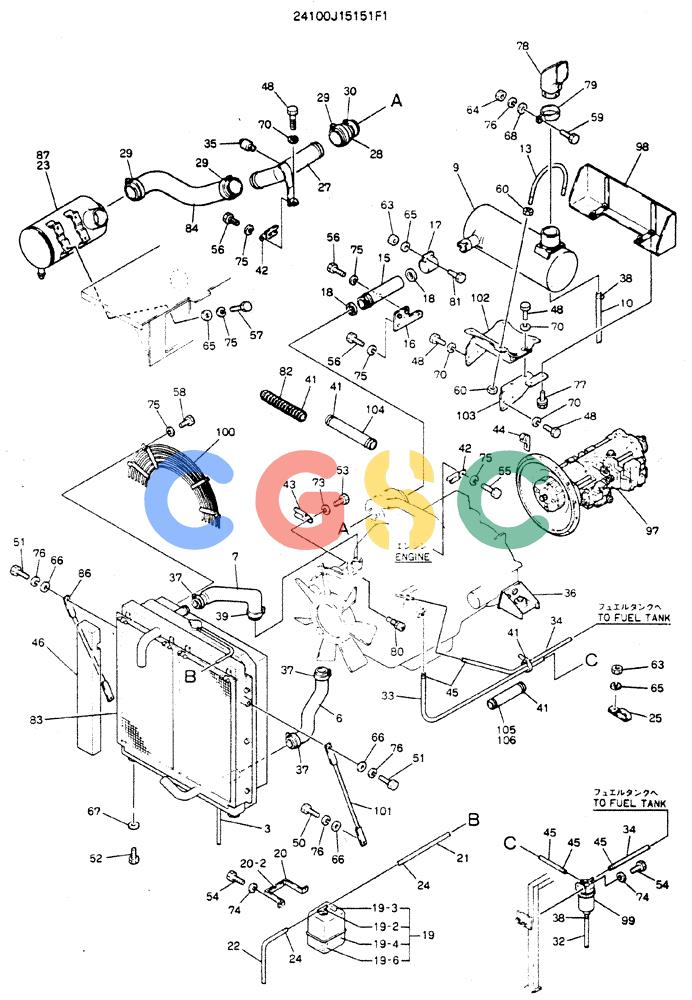

| . . | 24100J15151F1 | [1] | POWER-PLANT ASSY | |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONHOSE (RADIATOR PART) |
| 6. | 2444P807 | [1] | HOSE | KOB |
| 7. | 2444P808 | [1] | HOSE | KOB |
| 9. | 2427U1476 | [1] | MUFFLER | KOB Superseded by part number: 2427N3301 |
| 10. | 2420Z795D4 | [1] | HOSE | KOB Superseded by part number: HX11Y07100DX |
| 13. | 2420T6738 | [2] | U-BOLT | KOB |
| 15. | 2427P3776 | [1] | EXHAUST SYSTEM PIPE | KOB |
| 16. | 2416T26432 | [1] | BRACKET | KOB |
| 17. | 2432R234 | [1] | CLAMP | KOB |
| 19. | 2427U203F3 | [1] | TANK | KOBRADIATOR SUB |
| 19-2. | 2427U203S2 | [1] | HYD CONNECTOR | KOBCONDUCTOR |
| 19-3. | 2427U203S3 | [1] | LABEL | KOBCAUTION |
| 19-4. | 2427U203S4 | [1] | TANK | KOB |
| 19-6. | 2427U203S6 | [1] | SWITCH | KOBRadiator Over Flow Level |
| 20. | 2416T23254 | [1] | BRACKET | KOB |
| 20-2. | 2416R259D1 | [1] | CUSHION | KOB |
| 21. | NSS | [1] | NOT SOLD SEPARAT | CONHOSE (RADIATOR PART) |
| 22. | 2418R590D2 | [1] | HOSE | KOBHOSE |
| 23. | 2446R334F1 | [1] | ELEMENT | KOBCLEANER ASSY. AIR (SEE FIGURE 05-005) Superseded by part number: 2446R334F3, 77259205 |
| 24. | NSS | [1] | NOT SOLD SEPARAT | CONCLIP (RADIATOR PART) |
| 25. | 2432R226D12 | [1] | CLIP | KOBClamp, Double -- ID 24 x 85mm Long Superseded by part number: ZC48X24014 |
| 27. | 2420P1593 | [1] | PIPE | KOB |
| 28. | 2444Z2411 | [1] | FLEXIBLE HOSE | KOB |
| 29. | ZC15X10500 | [3] | CLIP | KOBBAND |
| 30. | ZC15X07000 | [1] | CLIP | KOBBAND |
| 32. | 4018Z1D3 | [1] | HOSE | KOB |
| 33. | 2444R2492D160 | [1] | FLEXIBLE HOSE | KOB |
| 34. | 2444R2492D300 | [2] | HOSE | KOB |
| 35. | 2450R163F1 | [1] | INDICATOR | KOB Superseded by part number: LE11P01015F1 |
| 36. | 24100N7709F1 | [1] | MTG, ENGINE (SEE FIGURE 05-003) | |
| 37. | ZC15X06000 | [3] | CLIP | KOB |
| 38. | ZC15X01000 | [2] | CLIP | KOB |
| 39. | ZC15X08000 | [1] | CLIP | KOB |
| 41. | 2432Z290D3 | [23] | CLIP | KOBWire Ties -- 154mm Long Superseded by part number: PY01P01043D3 |
| 42. | 2432R233D3 | [2] | CLIP | KOB50x16x60mm |
| 43. | 2432R233D1 | [1] | CLIP | KOB37x12x40mm |
| 44. | 2416T22522 | [1] | CLIP | KOBCLIP |
| 45. | ZC15X01500 | [6] | CLIP | KOB |
| 46. | 2479P590 | [1] | INSULATOR | KOB |
| 48. | ZS13C10025 | [9] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 50. | ZS18C12025 | [2] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 51. | ZS18C12035 | [2] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| 52. | ZS13C16030 | [2] | SCREW | KOBM16x2.0x30mm |
| 53. | ZS18C06014 | [1] | SCREW,Hex, M6 x 14mm | KOBM06x1.0x14mm |
| 54. | ZS18C08025 | [4] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 55. | ZS18C10014 | [1] | SCREW,Hex, M10 x 14mm | KOBM10x1.50x14mm |
| 56. | ZS18C10020 | [5] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 57. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 58. | ZS18F10020 | [3] | BOLT,Hex, M10 x 20mm | KOBM10x1.25x20mm |
| 59. | ZS18C12040 | [1] | SCREW,Hex, M12 x 40mm | KOBM12x1.75x40mm |
| 60. | ZN13C08007 | [8] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 63. | ZN18C10008 | [3] | NUT | KOBM10x1.50mm |
| 64. | ZN18C12010 | [1] | NUT | KOBM12x1.75mm |
| 65. | ZW16X10000 | [7] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 66. | ZW13H12000 | [4] | WASHER | KOB |
| 67. | ZW13H16000 | [2] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 68. | ZW16X12000 | [1] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 70. | ZW22X10000 | [9] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 73. | ZW26X06000 | [1] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 74. | ZW26X08000 | [4] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 75. | ZW26X10000 | [13] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 76. | ZW26X12000 | [5] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 77. | 2420T6788 | [4] | SCREW,M10 x 1.5 x 25mm | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C10025 |
| 78. | 2418P23182 | [1] | EXHAUST SYSTEM PIPE | KOBTAIL |
| 79. | 2432T2294 | [1] | CLAMP | KOB |
| 80. | 2489U268F1 | [1] | SENDER UNIT,65 Degrees C, 149 Degrees F - 115 Degrees C, 239 Degrees F | KOBTHERMO |
| 81. | ZS18C10035 | [2] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| 82. | 2418Z1333D1 | [2] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 250mm Length | KOBProtective Plastic |
| 83. | 2452U426F1 | [1] | RADIATOR | KOBSEE FIGURE 05-006 |
| 84. | 2444R1147 | [1] | HOSE | KOB |
| 86. | 2416T25929 | [1] | STAY | |
| 87. | 2446U248F1 | [1] | ELEMENT | KOBREWORK, AIR CLEANER SEE FIGURE 09-003 |
| 97. | 24100N7704F1 | [1] | PUMP ASSY, CONNECT SEE FIGURE 05-004 | |
| 98. | 2414P8324 | [1] | GUARD | KOB Superseded by part number: 2414N5328 |
| 99. | 2446U180F2 | [1] | SEPARATOR | KOBFILTER ASSY SEE FIGURE 05-007 |
| 100. | 2427N3151 | [1] | GUARD | KOBFAN |
| 101. | 2416T26586 | [1] | STAY | |
| 102. | 2416N6194 | [1] | BRACKET | BRACKET |
| 103. | 2416P17071 | [1] | BRACKET | KOB Superseded by part number: 2416P19375 |
| 104. | 2418Z1333D2 | [2] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 900mm Length | KOBProtective Plastic |
| 105. | 2418Z1333D5 | [2] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 400mm Length | KOB |
| 106. | 2418Z1333D4 | [2] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 500mm Length | KOB |
| 18. | VAME088490 | [2] | SEAL RETAINER | KOBRING, SEAL |
