神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (05-002) - ENGINE ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
413 次

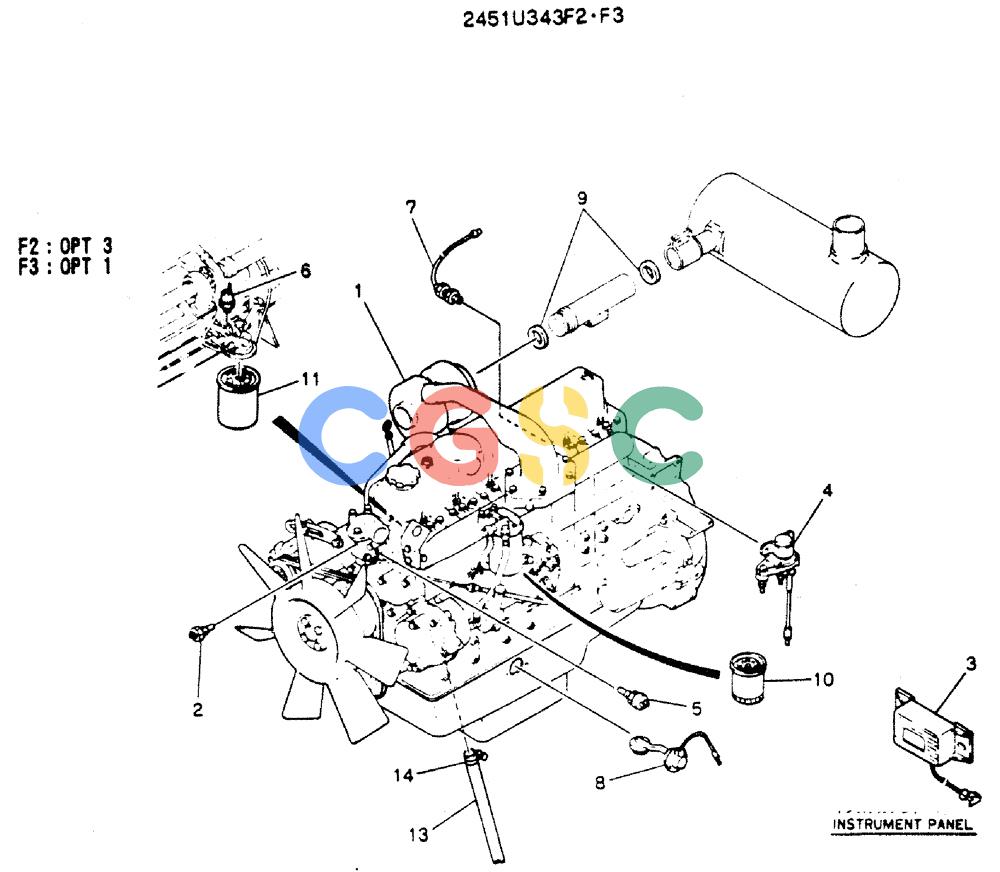

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2451U343F2 | [1] | ENGINE ASSY | ENGINE ASSY |
| . . | 2451U343F3 | [1] | ENGINE | KOB |
| 2. | 2489U268F1 | [1] | SENDER UNIT,65 Degrees C, 149 Degrees F - 115 Degrees C, 239 Degrees F | KOBTHERMO, MITSUBISHI PARTS NO.--AS FOR THE ENGINE PARTS. REFER TO FOLLOWING "ENGINE PARTS" |
| 3. | VAME049234 | [1] | RELAY | KOBSAFETY (INP) |
| 4. | VAME067626 | [1] | RELAY | KOBHEATER (E/G) Superseded by part number: VAME049306 |
| 5. | VAME049265 | [1] | SWITCH | KOBTHERMO (E/G) Superseded by part number: 134837A1 |
| 6. | VAMC840219 | [1] | SWITCH | KOBOIL PRESS (E/G) Superseded by part number: H411892 |
| 7. | VAMC845235 | [1] | SENDER UNIT | KOBSPEED Superseded by part number: 240067A1 |
| 8. | VAMC840577 | [1] | SWITCH | KOBLEVEL, OIL |
| 9. | VAME088490 | [2] | SEAL RETAINER | KOB |
| 10. | VAME035393 | [1] | ELEMENT | KOB Superseded by part number: 47500495 |
| 11. | VAME088532 | [1] | FILTER | KOBELEMENT, OIL Superseded by part number: VAME088532D |
| 13. | VAME088703 | [1] | HOSE | KOBBREATHER |
| 14. | VAMS660170 | [1] | HOSE CLIP | KOB |
