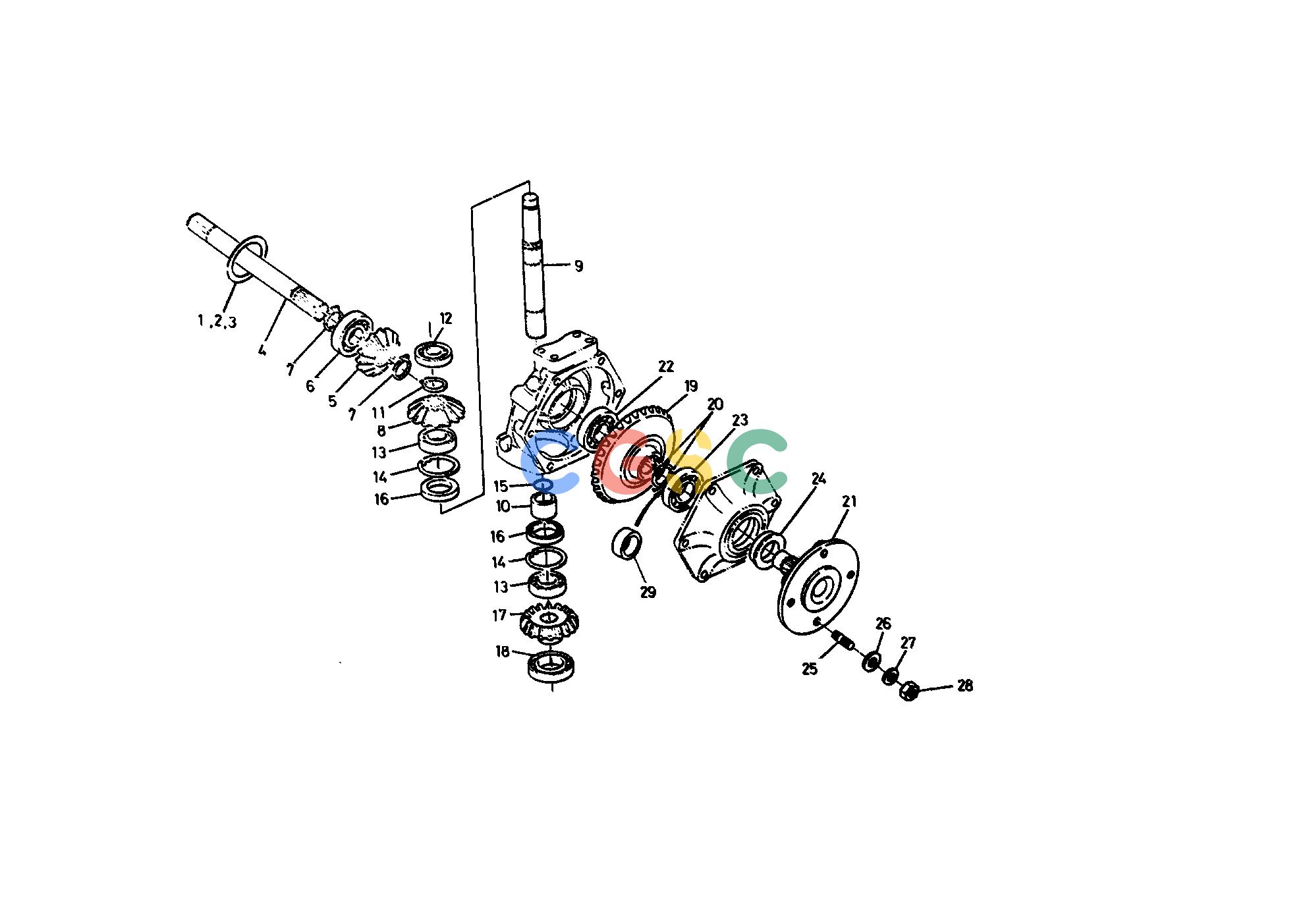

久保田零件查询T06700 BEVEL GEAR [DP] OLD TYPE FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
660 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6659114980
|
[2] |
SHIM DIFF SIDE 3
|
0.0110(lbs); 0.005
|
| 002. |
6659114990
|
[2] |
SHIM DIFF SIDE 4
|
0.0044(lbs); 0.002
|
| 003. |
6712156630
|
[2] |
SHIM DIFF SIDE
|
0.0110(lbs); 0.005
|
| 004. |
6712156640
|
[2] |
SHAFT
|
2.1560(lbs); 0.980
|
| 005. |
6712156650
|
[2] |
GEAR STR BEVEL
|
0.8360(lbs); 0.380
|
| 006. |
0810106305
|
[2] |
BEARING BALL
|
0.5060(lbs); 0.230
|
| 007. |
0461200250
|
[4] |
CIR-CLIP EXTERNAL
|
0.0044(lbs); 0.002
|
| 008. |
6712156710
|
[2] |
CEAR STR BEVEL
|
0.7700(lbs); 0.350
|
| 009. |
6712156720
|
[2] |
SHAFT BEVEL GEAR
|
1.6060(lbs); 0.730
|
| 010. |
6712156730
|
[2] |
COLLAR
|
0.1650(lbs); 0.075
|
| 011. |
0461200250
|
[2] |
CIR-CLIP EXTERNAL
|
0.0044(lbs); 0.002
|
| 012. |
0810106303
|
[2] |
BEARING BALL
|
0.2464(lbs); 0.112
|
| 013. |
6712156760
|
[4] |
BEARING BALL
|
0.0000(lbs); 0.000
|
| 014. |
0461100520
|
[4] |
CIR-CLIP INTERNAL
|
0.0198(lbs); 0.009
|
| 015. |
0481110250
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 016. |
6712156740
|
[4] |
SEAL OIL
|
0.0352(lbs); 0.016
|
| 017. |
6722156750
|
[2] |
GEAR STR BEVEL
|
1.2760(lbs); 0.580
|
| 018. |
0810106007
|
[2] |
BEARING BALL
|
0.3520(lbs); 0.160
|
| 019. |
6712156810
|
[2] |
GEAR STR BEVEL
|
4.4000(lbs); 2.000
|
| 020. |
6712156820
|
[4] |
COLLAR
|
0.0000(lbs); 0.000
|
| 021. |
6620456830
|
[2] |
HUB FRONT WHEEL
|
2.7720(lbs); 1.260
|
| 022. |
0810106305
|
[2] |
BEARING BALL
|
0.5060(lbs); 0.230
|
| 023. |
0810106206
|
[2] |
BEARING BALL
|
0.4290(lbs); 0.195
|
| 024. |
6373317150
|
[2] |
SEAL OIL
|
0.0880(lbs); 0.040
|
| 025. |
6659156564
|
[8] |
STUD
|
0.0616(lbs); 0.028
|
| 025. |
6675856970
|
[8] |
STUD
|
0.0660(lbs); 0.030
|
| 026. |
0401350120
|
[8] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 027. |
0451250120
|
[8] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 028. |
0217450120
|
[8] |
NUT
|
0.0220(lbs); 0.010
|
| 029. |
6620456840
|
[2] |
COLLAR
|
0.0440(lbs); 0.020
|
