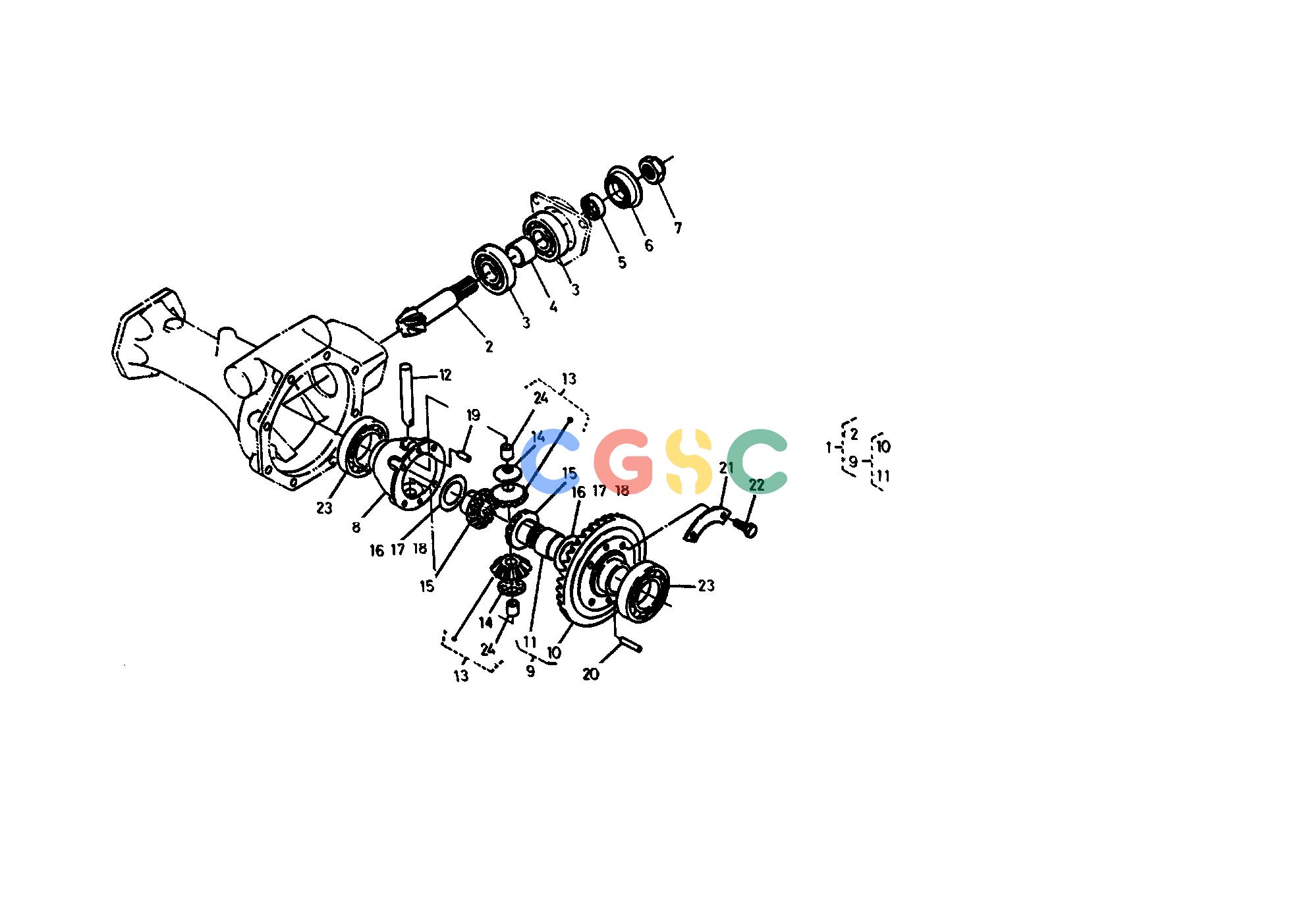

久保田零件查询T06600 FRONT DIFFERENTIAL [DP] OLD TYPE FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
124 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6712199120
|
[1] |
ASSY BEVEL GEAR 6-37
|
4.4000(lbs); 2.000
|
| 003. |
0810106305
|
[2] |
BEARING BALL
|
0.5060(lbs); 0.230
|
| 004. |
6659156460
|
[1] |
COLLAR
|
0.1078(lbs); 0.049
|
| 005. |
6659156420
|
[1] |
BUSH
|
0.0462(lbs); 0.021
|
| 006. |
6659156430
|
[1] |
SEAL OIL
|
0.0418(lbs); 0.019
|
| 007. |
3122022340
|
[1] |
NUT
|
0.0726(lbs); 0.033
|
| 008. |
6722156614
|
[1] |
CASE DIFFERENTIAL
|
1.4080(lbs); 0.640
|
| 011. |
6661114950
|
[1] |
BUSH
|
0.0704(lbs); 0.032
|
| 012. |
6721114913
|
[1] |
SHAFT DIFF PINION
|
0.2640(lbs); 0.120
|
| 013. |
6721114925
|
[2] |
PINION DIFFERENTIAL
|
0.2508(lbs); 0.114
|
| 014. |
6721114983
|
[2] |
COLLAR PINION THRUST
|
0.0220(lbs); 0.010
|
| 015. |
6721115150
|
[2] |
GEAR DIFF SIDE 1
|
0.3476(lbs); 0.158
|
| 016. |
6721115160
|
[2] |
SHIM 1
|
0.0220(lbs); 0.010
|
| 017. |
6721115170
|
[2] |
SHIM 2
|
0.0176(lbs); 0.008
|
| 018. |
6721115180
|
[2] |
SHIM 3
|
0.0220(lbs); 0.010
|
| 019. |
6659114790
|
[1] |
PIN KNOCK
|
0.0088(lbs); 0.004
|
| 020. |
6659114783
|
[1] |
PIN STRAIGHT
|
0.0220(lbs); 0.010
|
| 021. |
6721115190
|
[2] |
PLATE LOCK
|
0.0176(lbs); 0.008
|
| 022. |
0115650820
|
[6] |
BOLT
|
0.0220(lbs); 0.010
|
| 023. |
0810106009
|
[2] |
BEARING BALL
|
0.4840(lbs); 0.220
|
| 024. |
6721114930
|
[2] |
BUSH
|
0.0220(lbs); 0.010
|
