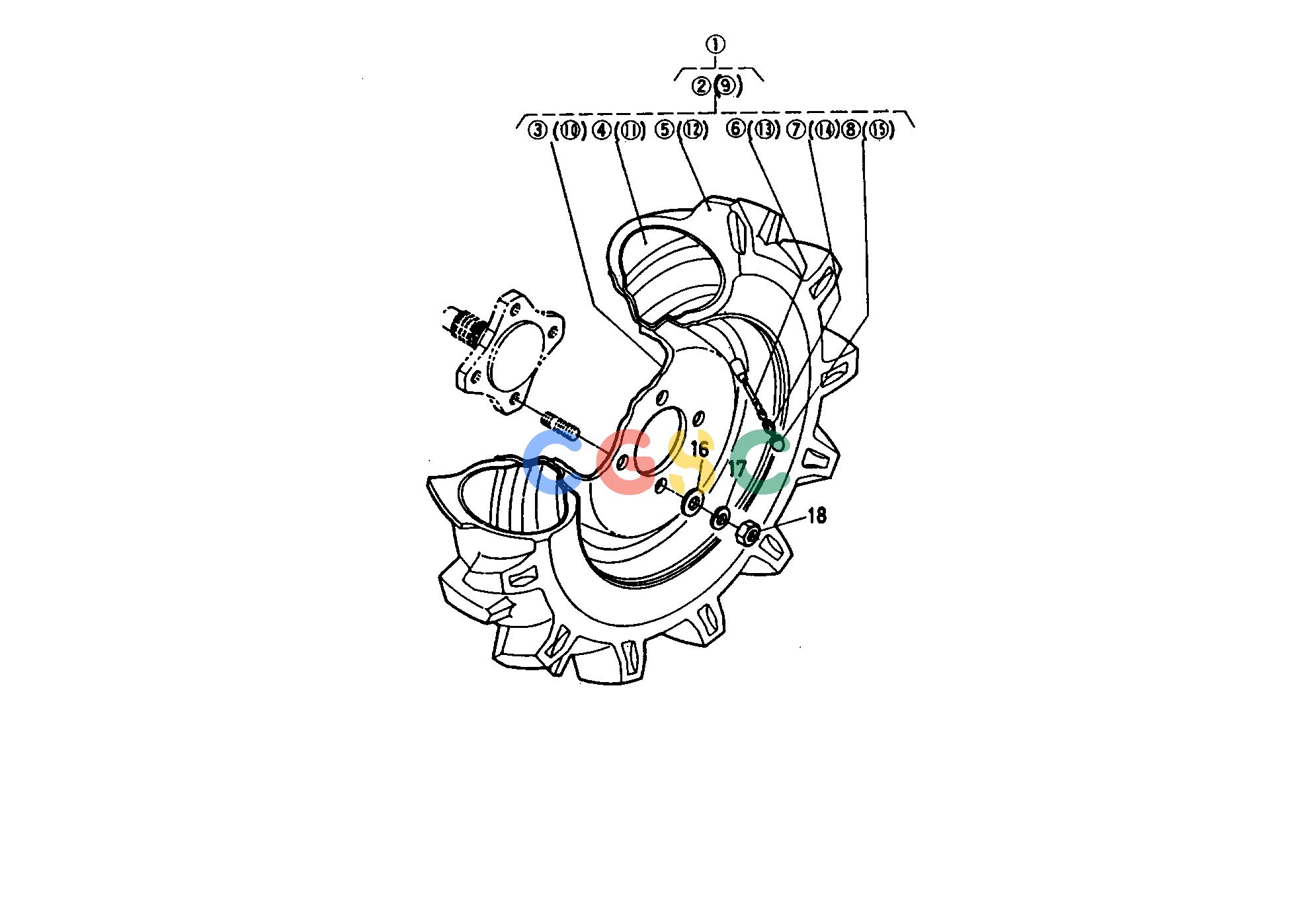

久保田零件查询T07100 FRONT WHEEL [DP-CA DP/EP-OVERSEAS] FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
896 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
9301601500
|
[1] |
ASSY FRONT WHEEL
|
0.0000(lbs); 0.000
|
| 002. |
9301501600
|
[1] |
TIRE 6-12 LH
|
0.0000(lbs); 0.000
|
| 003. |
9301601510
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 004. |
9301501120
|
[1] |
TUBE
|
1.3200(lbs); 0.600
|
| 005. |
9301601520
|
[1] |
TIRE
|
11.0000(lbs); 5.000
|
| 006. |
3215027700
|
[1] |
ASSY VALVE
|
0.0022(lbs); 0.001
|
| 007. |
3227011650
|
[1] |
CORE VALVE
|
0.0044(lbs); 0.002
|
| 008. |
3215027740
|
[1] |
CAP
|
0.0066(lbs); 0.003
|
| 009. |
9301601700
|
[1] |
TIRE 6-12 RH
|
0.0000(lbs); 0.000
|
| 010. |
9301601510
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 011. |
9301601120
|
[1] |
TUBE
|
1.5400(lbs); 0.700
|
| 012. |
9301601520
|
[1] |
TIRE
|
11.0000(lbs); 5.000
|
| 013. |
3215027700
|
[1] |
ASSY VALVE
|
0.0022(lbs); 0.001
|
| 014. |
3227011650
|
[1] |
CORE VALVE
|
0.0044(lbs); 0.002
|
| 015. |
3215027740
|
[1] |
CAP
|
0.0066(lbs); 0.003
|
| 016. |
0401350120
|
[8] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 017. |
0451250120
|
[8] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 018. |
0217450120
|
[8] |
NUT
|
0.0220(lbs); 0.010
|
