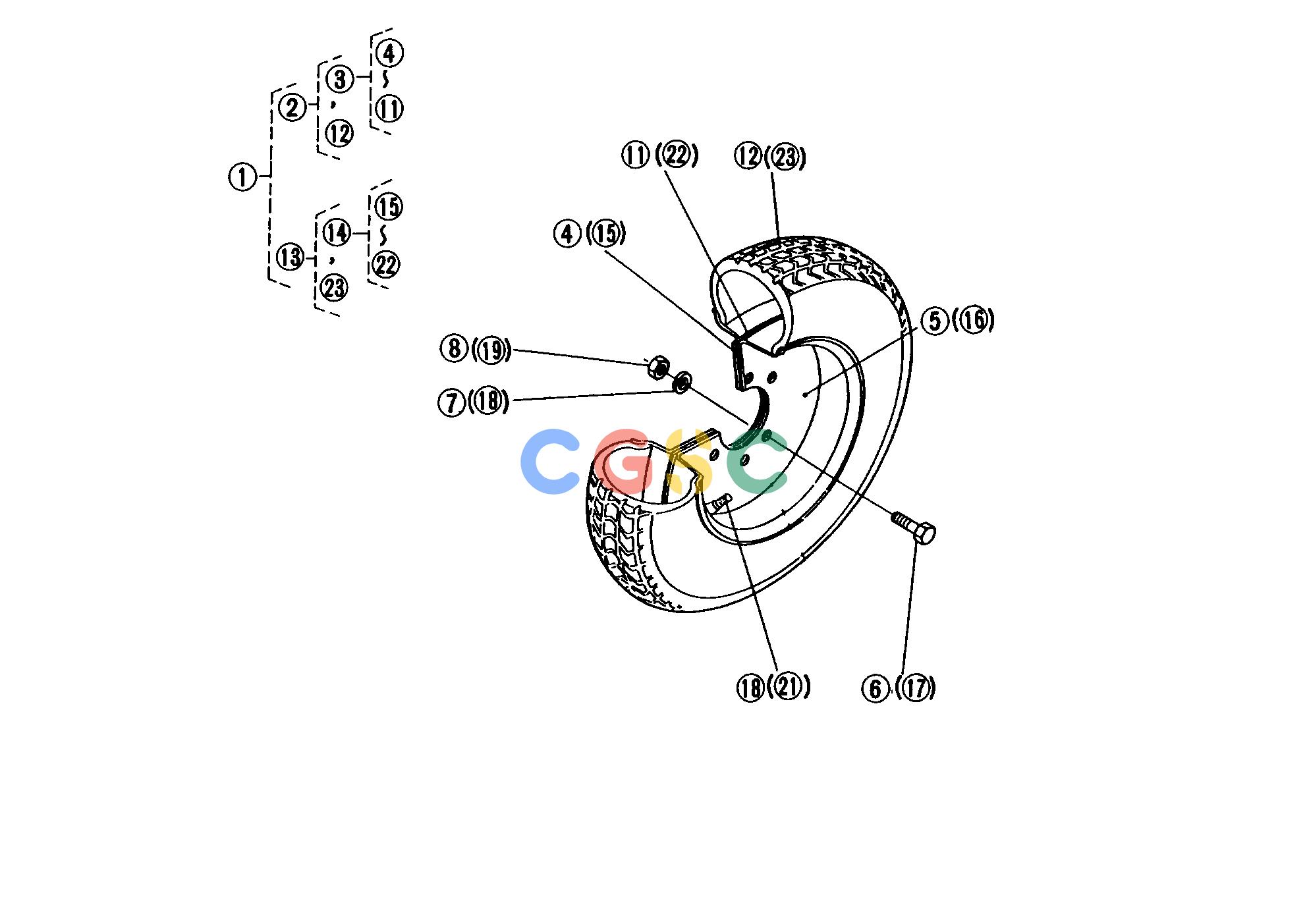

久保田零件查询T07300 FRONT WHEEL [DPT] FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
449 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
9601840320
|
[1] |
ASSY WHEEL
|
55.0000(lbs); 25.000
|
| 002. |
9601841300
|
[1] |
ASSY WHEEL LH
|
26.4000(lbs); 12.000
|
| 003. |
9601516102
|
[1] |
ASSY WHEEL
|
12.7600(lbs); 5.800
|
| 004. |
9601516110
|
[1] |
WHEEL
|
5.7200(lbs); 2.600
|
| 005. |
9601516122
|
[1] |
WHEEL
|
6.6000(lbs); 3.000
|
| 006. |
0117051022
|
[6] |
BOLT
|
0.0000(lbs); 0.000
|
| 007. |
0451250100
|
[6] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 008. |
0211850100
|
[6] |
NUT
|
0.0110(lbs); 0.005
|
| 009. |
3415911840
|
[1] |
RIM
|
10.8900(lbs); 4.950
|
| 010. |
3415911850
|
[1] |
VALVE TIRE
|
0.0286(lbs); 0.013
|
| 011. |
3415911860
|
[1] |
GASKET
|
0.1100(lbs); 0.050
|
| 012. |
9601841130
|
[1] |
TIRE
|
14.5200(lbs); 6.600
|
| 013. |
9601841400
|
[1] |
ASSY WHEEL RH
|
26.4000(lbs); 12.000
|
| 014. |
9601516102
|
[1] |
ASSY WHEEL
|
12.7600(lbs); 5.800
|
| 015. |
9601516110
|
[1] |
WHEEL
|
5.7200(lbs); 2.600
|
| 016. |
9601516122
|
[1] |
WHEEL
|
6.6000(lbs); 3.000
|
| 017. |
0117051022
|
[6] |
BOLT
|
0.0000(lbs); 0.000
|
| 018. |
0451250100
|
[6] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 019. |
0211850100
|
[6] |
NUT
|
0.0110(lbs); 0.005
|
| 020. |
3415911840
|
[1] |
RIM
|
10.8900(lbs); 4.950
|
| 021. |
3415911850
|
[1] |
VALVE TIRE
|
0.0286(lbs); 0.013
|
| 022. |
3415911860
|
[1] |
GASKET
|
0.1100(lbs); 0.050
|
| 023. |
9601841130
|
[1] |
TIRE
|
14.5200(lbs); 6.600
|
