神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (05-010) - CLUSTER, GAUGE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
752 次

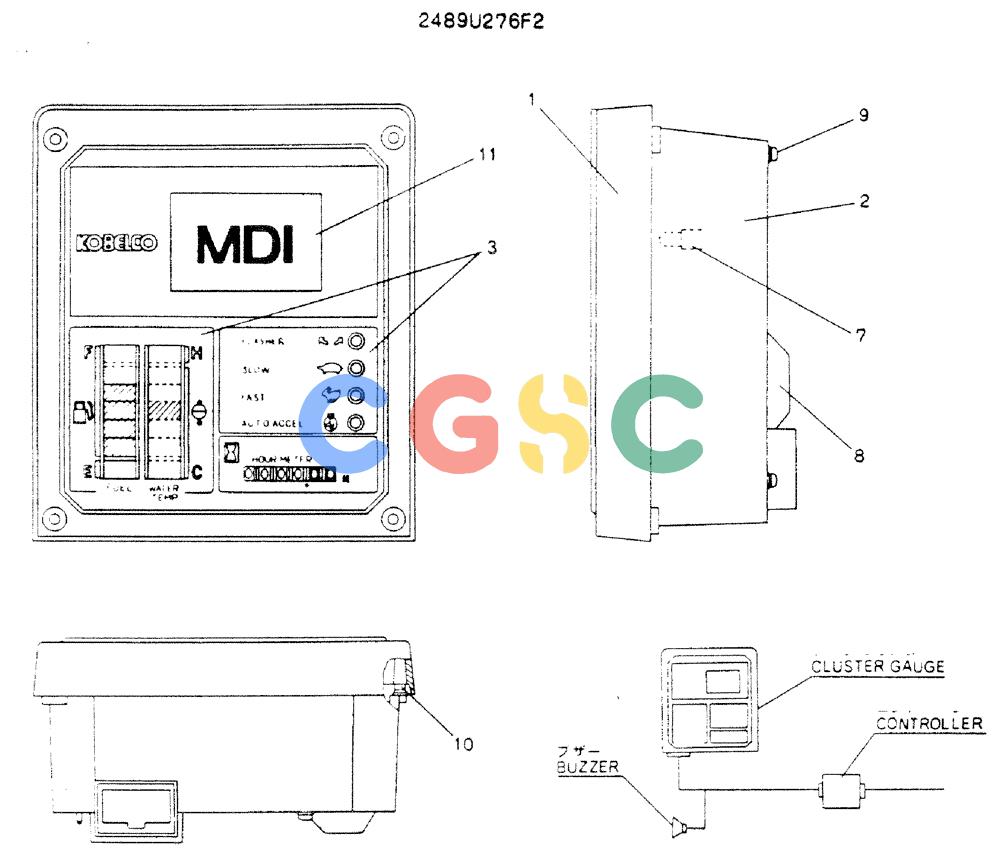

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2489U276F2 | [1] | GAUGE, CLUSTER CLUSTER, GAUGE | GAUGE, CLUSTER CLUSTER, GAUGE |
| 1. | 2489U266S1 | [1] | COVER | KOBFRONT |
| 2. | 2489U266S2 | [1] | HOUSING | KOB |
| 3. | 2489U266S3 | [1] | SIGHTGLASS | KOB |
| 7. | 2489U266S7 | [3] | BULB | KOBSOCKET & VALVE ASSY |
| 3. | 2489U266S8 | [1] | PLATE | KOB |
| 9. | 2489U266S9 | [3] | SCREW | KOB |
| 10. | 2489U266S10 | [2] | SELF-TAP SCREW | KOB |
| 11. | 2489U276S11 | [1] | FINISHER | |
