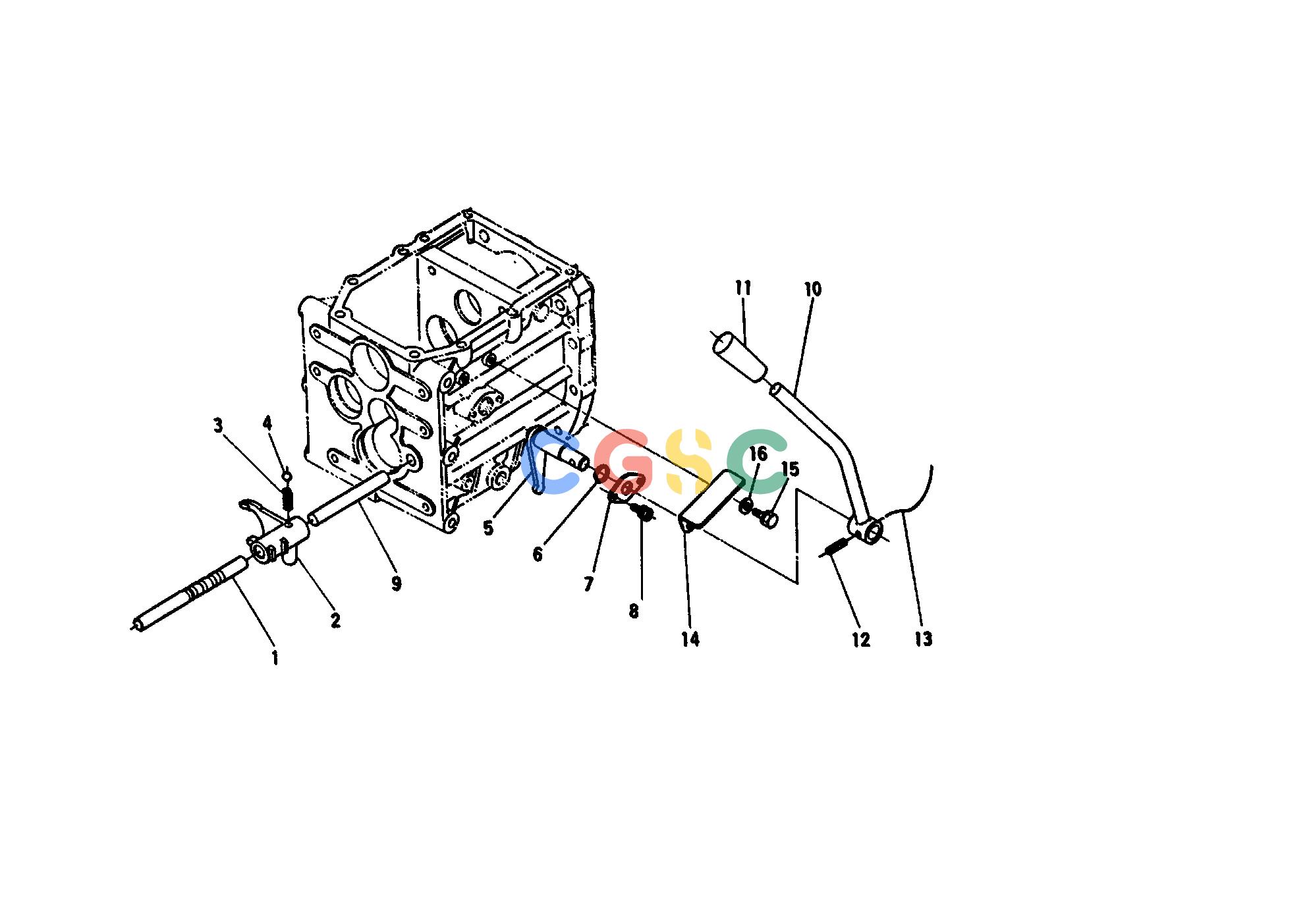

久保田零件查询T03500 ROTARY SPEED CHANGE SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
556 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6620418610
|
[1] |
FORK SHIFT
|
0.4620(lbs); 0.210
|
| 002. |
6659118210
|
[1] |
FORK SHIFT
|
0.4400(lbs); 0.200
|
| 003. |
6206118260
|
[1] |
SPRING
|
0.0044(lbs); 0.002
|
| 004. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 005. |
6659118220
|
[1] |
ARM
|
0.2640(lbs); 0.120
|
| 006. |
0481100160
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 007. |
6659118180
|
[1] |
HOLDER FORK ROD 1
|
0.0264(lbs); 0.012
|
| 008. |
0120250614
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 009. |
6661119310
|
[1] |
ROD
|
0.2838(lbs); 0.129
|
| 010. |
6661142710
|
[1] |
LEVER
|
0.5214(lbs); 0.237
|
| 011. |
5420123270
|
[1] |
GRIP LEVER
|
0.0440(lbs); 0.020
|
| 012. |
0541100622
|
[1] |
PIN SPRING
|
0.0066(lbs); 0.003
|
| 014. |
6620442170
|
[1] |
GUIDE CHANGE LEVER
|
0.0880(lbs); 0.040
|
| 015. |
0120250814
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 016. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
