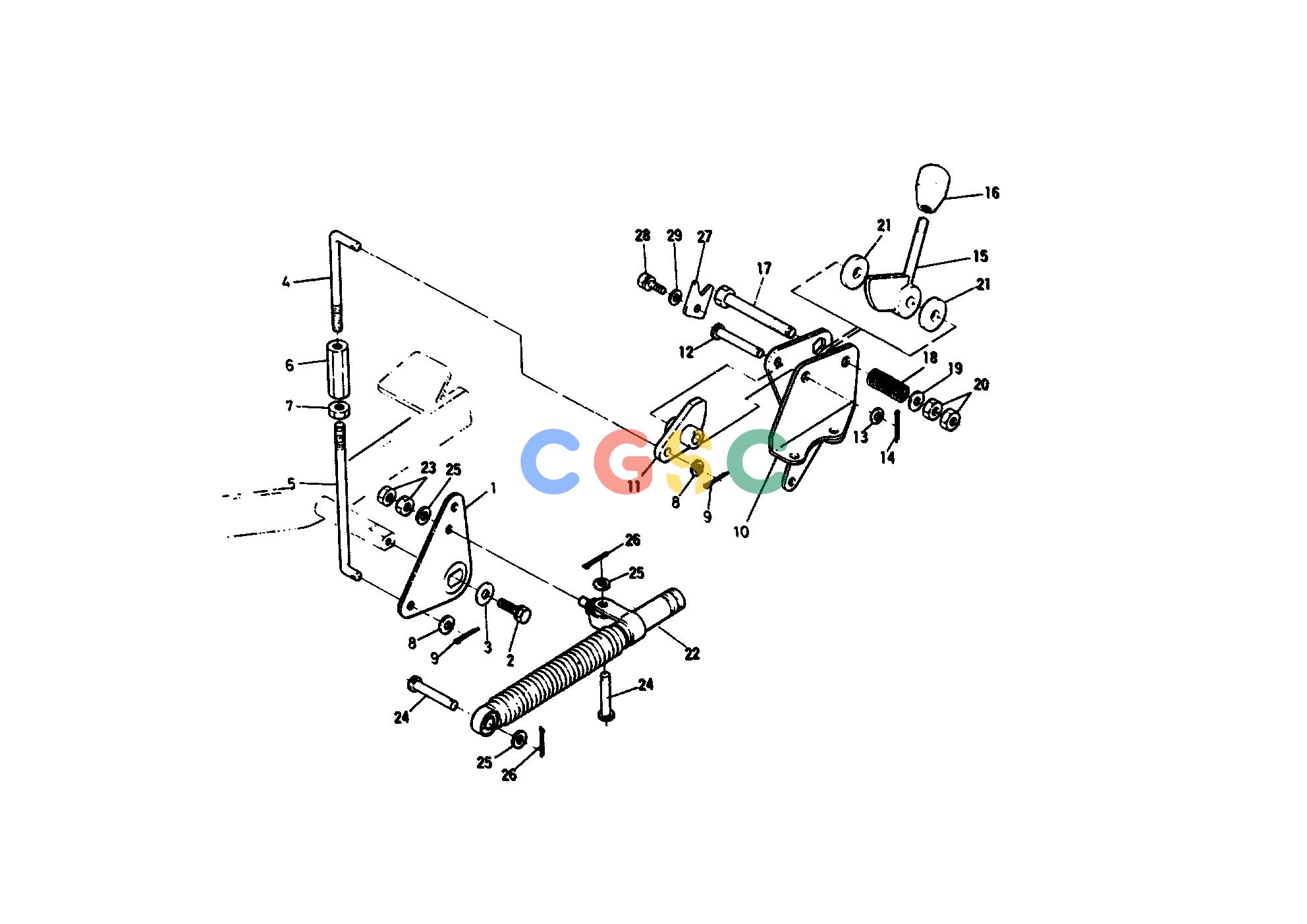

久保田零件查询T04600 SPEED CHANGE 2 SPEED CHANGE LEVEREPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
328 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6620443420
|
[1] |
PLATE CHANGE
|
0.0000(lbs); 0.000
|
| 002. |
0120250816
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 002. |
0112050816
|
[1] |
BOLT
|
0.0000(lbs); 0.000
|
| 003. |
0401550080
|
[1] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 004. |
6620443430
|
[1] |
ROD CHECK A
|
0.0880(lbs); 0.040
|
| 005. |
6620443440
|
[1] |
ROD CHECK B
|
0.2860(lbs); 0.130
|
| 006. |
6659142410
|
[1] |
TURN BACKLE
|
0.1012(lbs); 0.046
|
| 007. |
0211250080
|
[1] |
NUT
|
0.0066(lbs); 0.003
|
| 008. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 009. |
0551150215
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 010. |
6620443450
|
[1] |
PLATE CHECK
|
0.9900(lbs); 0.450
|
| 011. |
6620443460
|
[1] |
PLATE CHECK
|
0.2310(lbs); 0.105
|
| 012. |
0512251045
|
[1] |
PIN JOINT
|
0.0638(lbs); 0.029
|
| 013. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 014. |
0551150318
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 015. |
6620443470
|
[1] |
LEVER
|
0.4180(lbs); 0.190
|
| 016. |
6376342260
|
[1] |
GRIP
|
0.0462(lbs); 0.021
|
| 017. |
6620443480
|
[1] |
BOLT
|
0.1320(lbs); 0.060
|
| 018. |
6620443510
|
[1] |
SPRING
|
0.0440(lbs); 0.020
|
| 019. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 020. |
0211650100
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 021. |
6620443490
|
[2] |
PLATE
|
0.0088(lbs); 0.004
|
| 022. |
6620443530
|
[1] |
DAMPA
|
0.6600(lbs); 0.300
|
| 023. |
0211250080
|
[2] |
NUT
|
0.0066(lbs); 0.003
|
| 024. |
0512250830
|
[2] |
PIN JOINT
|
0.0308(lbs); 0.014
|
| 025. |
0401250080
|
[3] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 026. |
0551150215
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 027. |
6620443520
|
[1] |
STOPPER
|
0.0660(lbs); 0.030
|
| 028. |
0102350610
|
[1] |
BOLT
|
0.0110(lbs); 0.005
|
| 029. |
0401350060
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
