神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (06-004) - LIGHT ASSY. WORKING 2456U74F3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
912 次

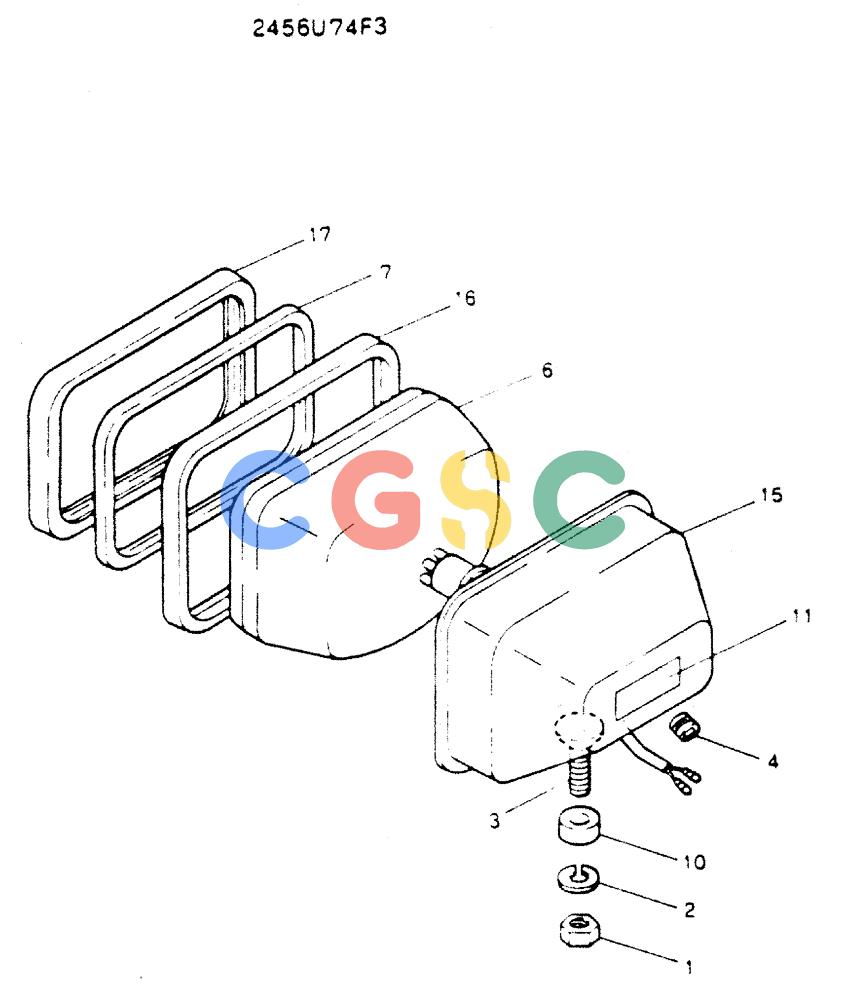

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2456U74F3 | [1] | LIGHT ASSY.,24V, 70W | KOB Superseded by part number: 2456R442F1 |
| 1. | 2456R229S8 | [1] | NUT | KOB |
| 2. | ZW26X14000 | [1] | WASHER | KOBID 14 x OD 24.5 x Th 3.5mm |
| 3. | 2456U74S3 | [1] | SCREW | KOB |
| 4. | 2456U74S4 | [1] | GROMMET | KOB |
| 6. | 2456R229S11 | [1] | SEALED BEAM UNIT | KOB Superseded by part number: 77259638, 2456R229S11M |
| 7. | 2456U74S7 | [1] | CUSHION | KOB |
| 10. | 2456U74S10 | [1] | SHEET | KOB |
| 11. | 2456U74S11 | [1] | NAME PLATE | |
| 15. | 2456U74S15 | [1] | HOUSING | HOUSING |
| 16. | 2456U74S16 | [1] | RING | |
| 17. | 2456U74S17 | [1] | RING | |
