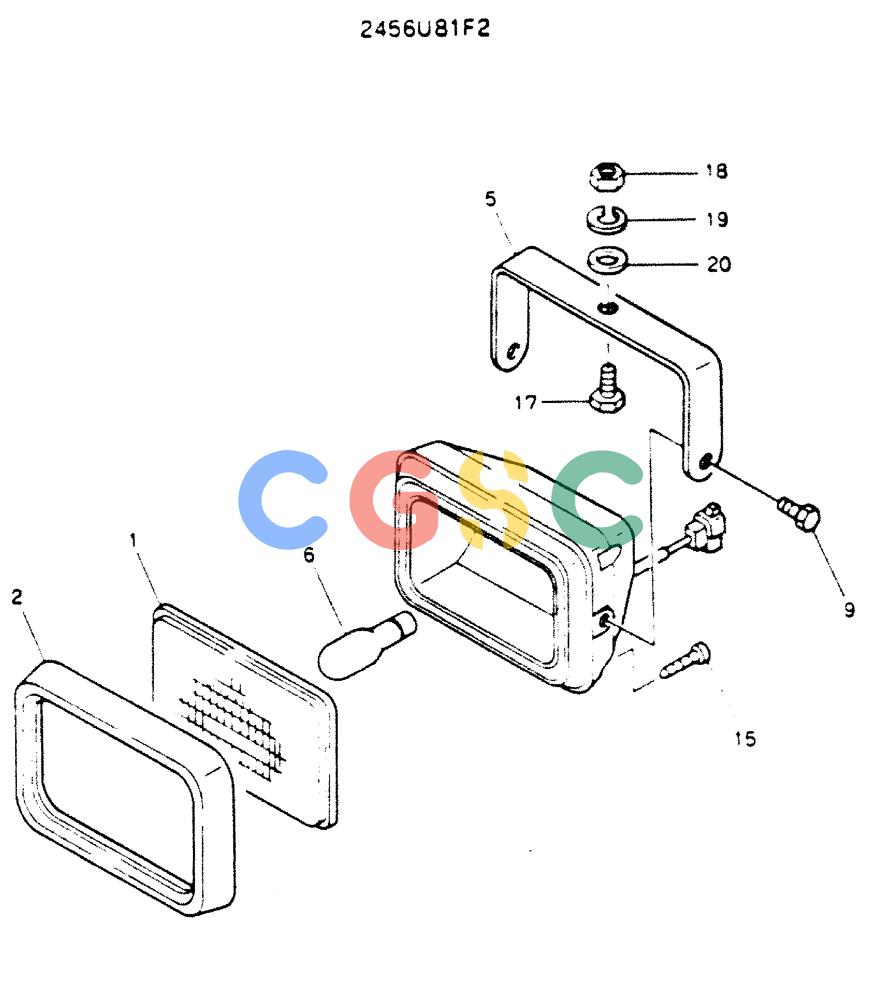

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (06-005) - LIGHT ASSY. WORKING 2456U81F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
138 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2456U81F2 | [1] | WORK LAMP | KOBLIGHT, WORKING |
| 1. | 2456U81S1 | [1] | LENS | KOB |
| 2. | 2456U81S2 | [1] | RIM | KOB |
| 5. | 2456U81S5 | [1] | STAY | |
| 6. | 2456U81S6 | [1] | BULB | KOB24Volt/70Watts Superseded by part number: YW80S00001S005 |
| 9. | 2456U81S9 | [2] | CAPSCREW | |
| 15. | 2456U81S15 | [4] | SCREW | KOBCAPSCREW |
| 17. | 2456U81S17 | [1] | CAPSCREW | |
| 18. | 2456U81S18 | [1] | NUT | |
| 19. | 2456U81S19 | [1] | LOCK WASHER | |
| 20. | 2456U81S20 | [1] | WASHER | |
