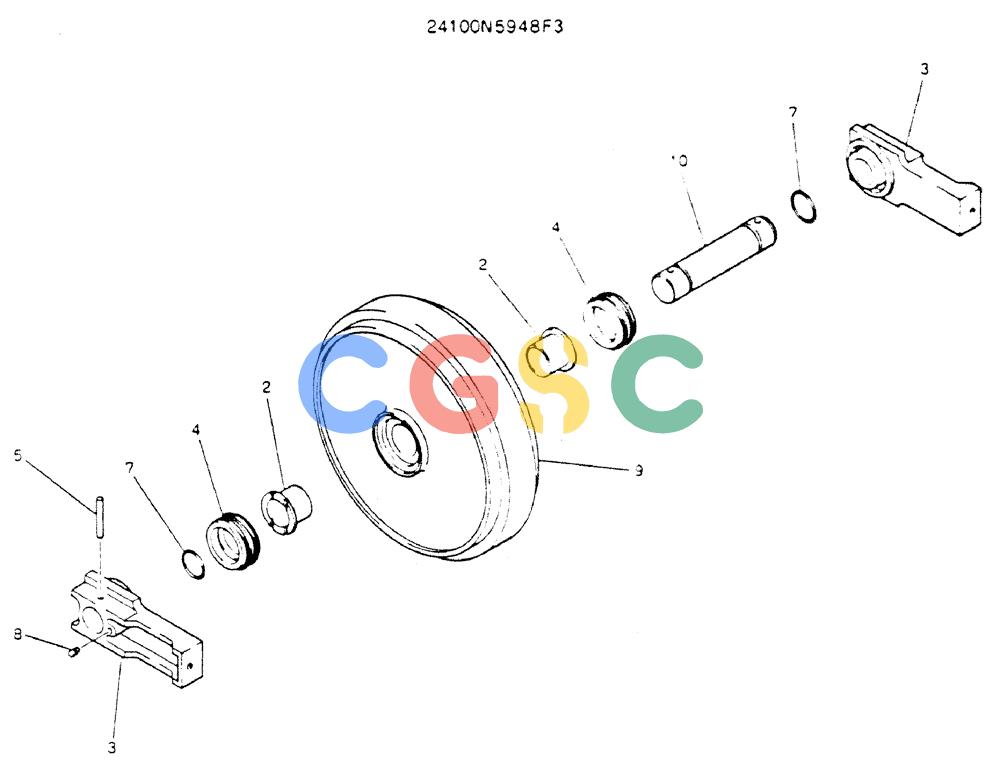

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (07-002) - IDLER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
373 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5948F3 | [1] | IDLER WHEEL | KOB Superseded by part number: 24100N6417F1 |
| 2. | 2405T1035 | [2] | BUSHING | KOBBUSHING |
| 3. | 2413N444 | [2] | SLIDE VALVE | KOB |
| 4. | R45P0018D27 | [2] | SEAL | KOB Superseded by part number: ZD58F10032 |
| 5. | 2419T2668D2 | [2] | PIN | KOB Superseded by part number: 2419T6351 |
| 7. | ZD11G06500 | [2] | O-RING,64.40mm ID x 70.60mm OD x 3.10mm | KOB |
| 8. | ZE82T02000 | [2] | PLUG | KOBPipe, 1.25" PT |
| 9. | 2413N455 | [1] | WHEEL ASSY | KOB Superseded by part number: 2413N735 |
| 10. | 2410P831 | [1] | ROLLER SHAFT | KOB |
