神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (07-001) - INSTAL. LOW Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
820 次

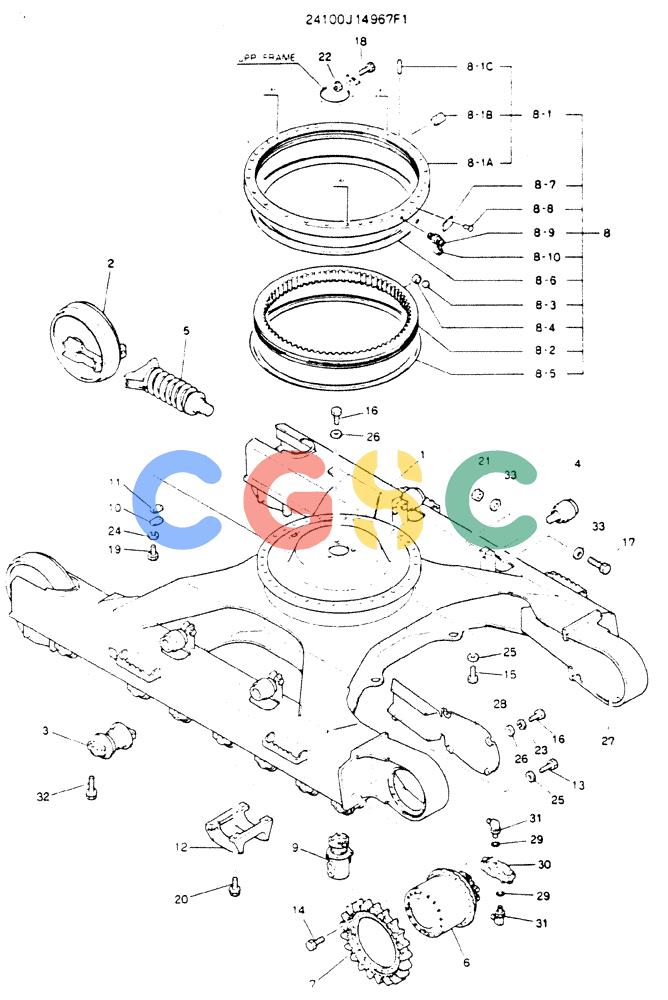

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J14967F1 | [1] | INSTAL, LOW | |
| 1. | 2422J3015 | [1] | FRAME, LOW | |
| 2. | 24100N5948F3 | [2] | IDLER WHEEL | KOBSEE FIGURE 07-002 Superseded by part number: 24100N6417F1 |
| 3. | 24100N5947F3 | [16] | ROLLER | KOBSEE FIGURE 07-003 Superseded by part number: 24100N6419F2 |
| 4. | 24100N5946F2 | [4] | ROLLER | KOBSEE FIGURE 07-004 Superseded by part number: YN64D01120F1 |
| 5. | 24100N5945F2 | [2] | SPRING | KOBTRACK, SEE FIGURE 07-005 Superseded by part number: 24100N5945F2M |
| 6. | 24100J11090F3 | [2] | HYDRAULIC MOTOR | KOBSEE FIGURE 07-006 |
| 7. | 2404N262 | [2] | SPROCKET,21 teeth, 664mm OD | KOB |
| 8. | 24100N7440F1 | [1] | SLEWING RING | KOB |
| 8-1. | 2425N371F1 | [1] | RACE, OUTER | |
| 8-1A. | 2425N371 | [1] | RACE, OUTER | |
| 8-1B. | 2420T4508 | [1] | PLUG | KOB |
| 8-1C. | 2419T1964D1 | [1] | PIN | KOBTaper -- OD 10 x 70mm Long |
| 8-2. | 2425N368 | [1] | RACE | KOBINNER |
| 8-3. | 2425T380 | [104] | BALL | KOB |
| 8-4. | 2425T381 | [104] | RETAINER | KOB |
| 8-5. | 2445P165D2 | [1] | SEAL | KOB Superseded by part number: YN40F01024D4 |
| 8-6. | 2445P165D1 | [1] | SEAL | KOB Superseded by part number: YN40F01024D4 |
| 8-7. | 2432T1265 | [1] | LABEL | KOBNAME Superseded by part number: YN22T00191P1 |
| 8-8. | 4020Z64 | [1] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 8-9. | ZG91S02000 | [2] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 8-10. | 2414Z307 | [1] | CAP | KOBCAP |
| 9. | 24100J5144F4 | [1] | FLEXIBLE JOINT | KOBSWIVEL, SEE (C.P.M.) Superseded by part number: 24100U1524F1 |
| 10. | 2422T556 | [1] | PLATE | KOB90x50x Th 06mm |
| 11. | 2418T12274 | [1] | PACKING | KOB90x50x Th 05mm -- Rubber |
| 12. | 2422N880 | [2] | GUIDE | KOBTRACK, CRAWL |
| 13. | ZS13C20065 | [32] | SCREW | KOBM20x2.50x65mm |
| 14. | ZS13C18055 | [44] | BOLT | KOBM18x2.0x55mm |
| 15. | ZS13F20070 | [36] | SCREW | KOBM20x1.50x70mm |
| 16. | ZS13C12025 | [13] | SCREW | KOBM12x1.75x25mm Superseded by part number: ZS18C12025 |
| 17. | ZS13C20100 | [4] | SCREW | KOBM20x2.50x100mm |
| 18. | ZS13C16110 | [1] | SCREW | KOBM16x2.0x110mm |
| 19. | ZS13C10014 | [2] | SCREW | KOBM10x1.50x14mm Superseded by part number: ZS18C10014 |
| 20. | 2420P1580D1 | [8] | SCREW,M18 x 1.5 x 40mm | KOBM18x1.50x40mm |
| 21. | ZN13C20016 | [4] | NUT | KOBM20x2.50mm |
| 22. | ZN13C16013 | [1] | NUT | KOBM16x2.0mm |
| 23. | ZW22X12000 | [10] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 24. | ZW22X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 25. | ZW13H20000 | [68] | WASHER | KOBID 20 x OD 40 x Th 4.5mm |
| 26. | ZW11X12000 | [13] | WASHER | KOBID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
| 27. | 2414N4188D1 | [1] | COVER | KOB |
| 28. | 2414N4188D2 | [1] | COVER | KOB |
| 29. | ZD12P02900 | [4] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 30. | 2436U1445F1 | [2] | BRAKE VALVE | KOBSEE (C.P.M.) |
| 31. | ZF33F28016 | [4] | ELBOW | KOB Superseded by part number: ZA33F28016 |
| 32. | 2420P1580D2 | [64] | SCREW,M18 x 1.5 x 70mm | KOBM18x1.50x70mm |
| 33. | ZW13H20000 | [8] | WASHER | KOBID 20 x OD 40 x Th 4.5mm |
| . . | 2445P114D7 | [1] | SEAL KIT | KOBKIT, CONSISTS OF ITEM, Serial Range: 8-5-8-6 Superseded by part number: YN40F01024D4 |
