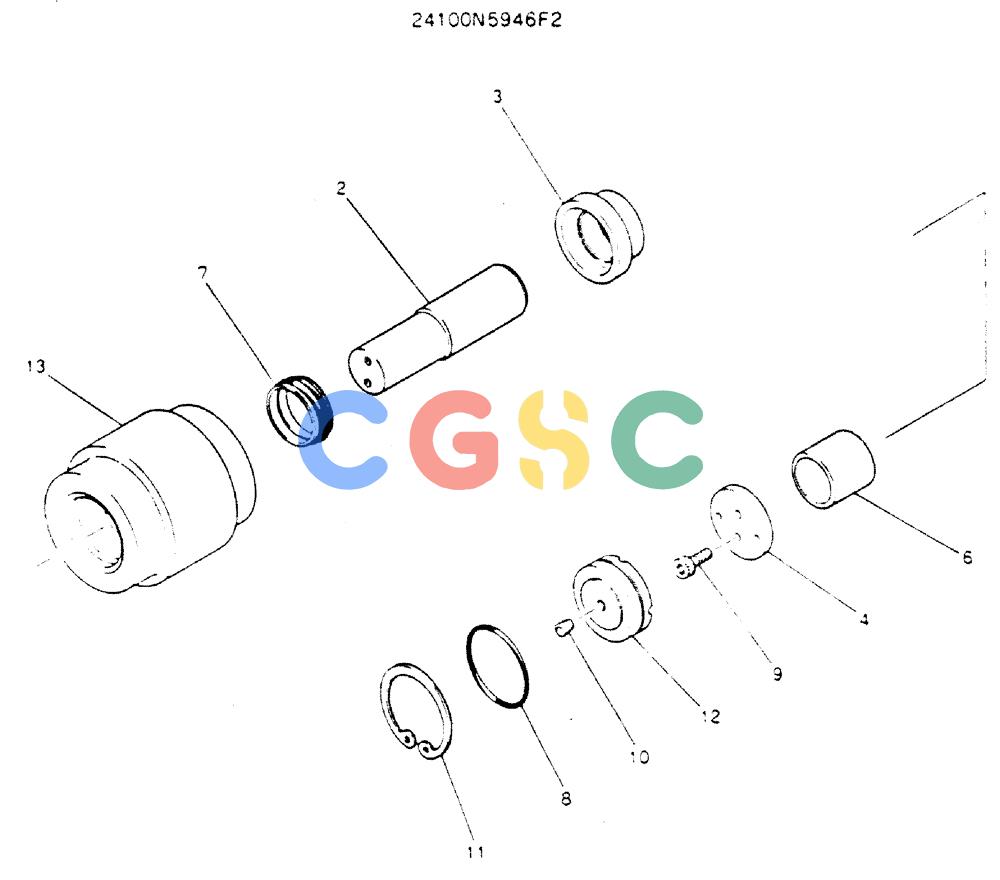

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (07-004) - ROLLER ASSY (UPPER) 24100N5946F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
246 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5946F2 | [1] | ROLLER | KOB Superseded by part number: YN64D01120F1 |
| . . | 2410P787 | [1] | SHAFT | SHAFT |
| 3. | 2418P21176 | [1] | COLLAR | KOB Superseded by part number: 2418P22958 |
| 4. | 2418T17501 | [1] | PLATE | KOB Superseded by part number: 2418T21108 |
| 6. | 2418T852 | [1] | BUSHING | |
| 7. | R45P0018D3 | [1] | SEAL | KOB Superseded by part number: ZD57F04825 |
| 8. | ZD11P06500 | [1] | O-RING | KOBID 64.6 ± 0.57 x OD 75mm |
| 9. | ZS23C10020 | [2] | SCREW,Hex Socket Head, M10 x 20mm | KOBM10x1.50x20mm |
| 10. | ZE82T04000 | [1] | PLUG | KOB1/4" PT |
| 11. | ZR26X07500 | [1] | RING | KOBRetaining -- ID 75 x OD 79.5 x Th 2.5mm |
| 12. | 2414P7550 | [1] | COVER | KOB Superseded by part number: YN64D01026P1 |
| 13. | 2413N469 | [1] | ROLLER | KOB |
| . . | 24100N5946R100 | [1] | SHAFT | KOBKIT, CONSISTS OF ITEM, Serial Range: 2-3 |
