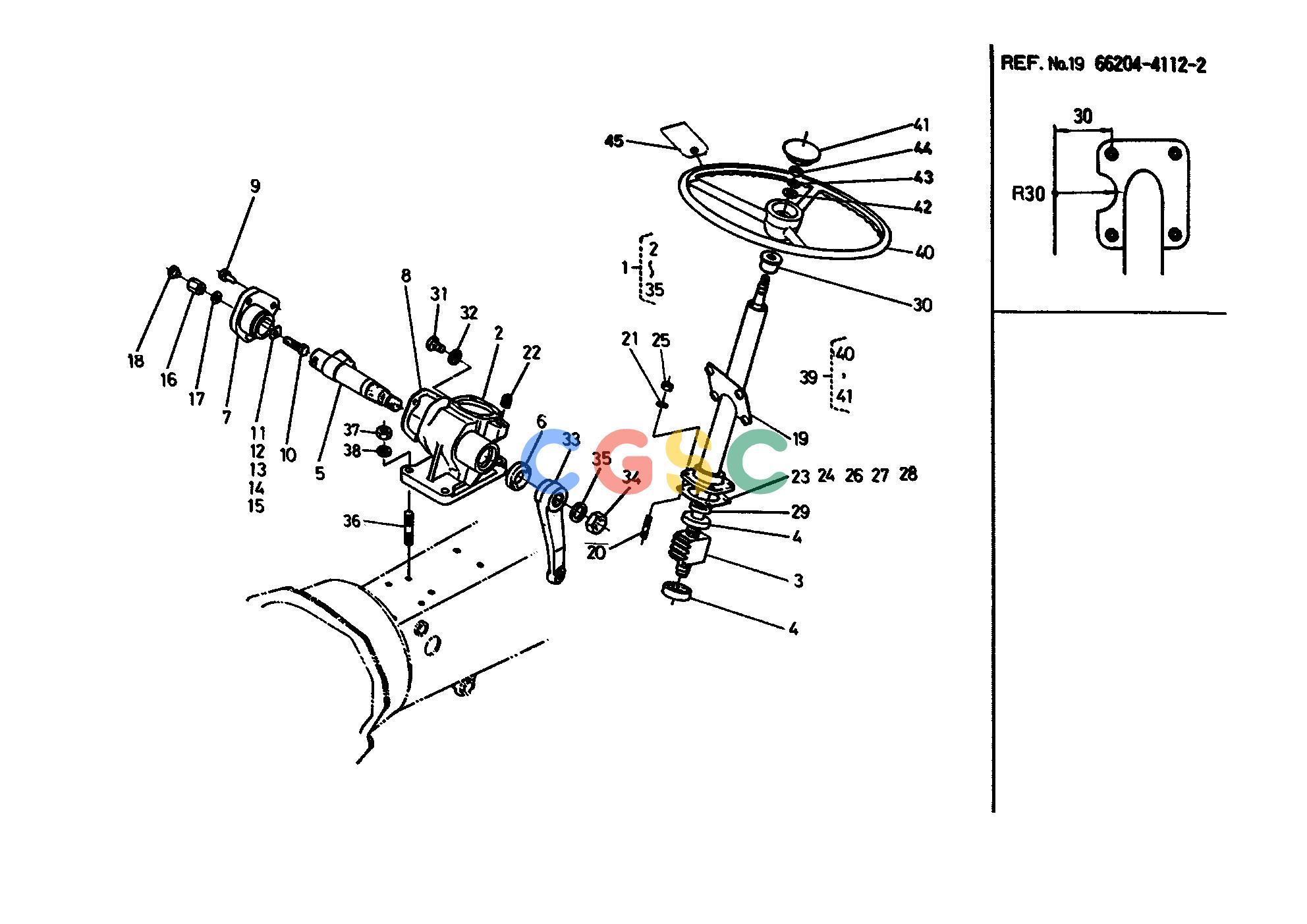

久保田零件查询T04200 STEERING STEERINGEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
459 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6620441100
|
[1] |
ASSY STEERING
|
0.0000(lbs); 0.000
|
| 001. |
6620441102
|
[1] |
ASSY STEERING
|
14.9600(lbs); 6.800
|
| 002. |
6620441110
|
[1] |
CASE STEERING GEAR
|
0.0000(lbs); 0.000
|
| 003. |
6681141200
|
[1] |
ASSY NUT BALL
|
2.2000(lbs); 1.000
|
| 003. |
H668041202
|
[1] |
ASSY NUT BALL
|
2.2000(lbs); 1.000
|
| 004. |
6681141140
|
[2] |
BEARING THRUST BALL
|
0.0990(lbs); 0.045
|
| 005. |
6681141150
|
[1] |
SHAFT SECTOR
|
1.1440(lbs); 0.520
|
| 005. |
H668041150
|
[1] |
SHAFT SECTOR
|
1.1440(lbs); 0.520
|
| 006. |
0950022358
|
[1] |
SEAL OIL
|
0.0220(lbs); 0.010
|
| 007. |
6681141160
|
[1] |
COVER SIDE
|
0.6600(lbs); 0.300
|
| 008. |
6681141170
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 009. |
0112050822
|
[3] |
BOLT
|
0.0000(lbs); 0.000
|
| 010. |
6681141180
|
[1] |
SCREW ADJUSTING
|
0.0286(lbs); 0.013
|
| 011. |
6681141190
|
[1] |
COLLAR ADJUSTING 1
|
0.0044(lbs); 0.002
|
| 012. |
6681141210
|
[1] |
COLLAR ADJUSTING 2
|
0.0022(lbs); 0.001
|
| 013. |
6681141220
|
[1] |
COLLAR ADJUSTING 3
|
0.0022(lbs); 0.001
|
| 014. |
6681141230
|
[1] |
COLLAR ADJUSTING 4
|
0.0022(lbs); 0.001
|
| 015. |
6681141240
|
[1] |
COLLAR ADJUSTING 5
|
0.0022(lbs); 0.001
|
| 016. |
6681141250
|
[1] |
NUT
|
0.0594(lbs); 0.027
|
| 017. |
0471400080
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 018. |
6101118140
|
[1] |
PLUG
|
0.0044(lbs); 0.002
|
| 019. |
6620441120
|
[1] |
POST STEERING
|
0.0000(lbs); 0.000
|
| 019. |
6620441122
|
[1] |
POST STEERING
|
1.1000(lbs); 0.500
|
| 019. |
H662041120
|
[1] |
POST STEERING
|
1.1000(lbs); 0.500
|
| 020. |
0151350822
|
[4] |
STUD
|
0.0220(lbs); 0.010
|
| 021. |
0451250080
|
[4] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 022. |
3415016640
|
[1] |
PLUG
|
0.0330(lbs); 0.015
|
| 023. |
6681141320
|
[1] |
SHIM 1
|
0.0022(lbs); 0.001
|
| 024. |
6681141330
|
[1] |
SHIM 2
|
0.0000(lbs); 0.000
|
| 025. |
0211450080
|
[4] |
NUT
|
0.0110(lbs); 0.005
|
| 026. |
6681141340
|
[1] |
SHIM 3
|
0.0022(lbs); 0.001
|
| 027. |
6681141350
|
[1] |
SHIM 4
|
0.0022(lbs); 0.001
|
| 028. |
6681141360
|
[1] |
SHIM 5
|
0.0066(lbs); 0.003
|
| 029. |
0950016287
|
[1] |
SEAL OIL
|
0.0220(lbs); 0.010
|
| 030. |
6659141250
|
[1] |
BUSH POST
|
0.0330(lbs); 0.015
|
| 031. |
0633135010
|
[1] |
PLUG
|
0.0264(lbs); 0.012
|
| 032. |
0471701000
|
[1] |
WASHER SEAL
|
0.0022(lbs); 0.001
|
| 033. |
6620441410
|
[1] |
ARM PITMAN
|
0.8800(lbs); 0.400
|
| 034. |
0217250160
|
[1] |
NUT
|
0.0374(lbs); 0.017
|
| 035. |
0451250160
|
[1] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 036. |
0151751028
|
[4] |
STUD
|
0.0484(lbs); 0.022
|
| 037. |
0211850100
|
[4] |
NUT
|
0.0110(lbs); 0.005
|
| 038. |
0451250100
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 039. |
6661141400
|
[1] |
ASSY WHEEL STEERING
|
0.0000(lbs); 0.000
|
| 041. |
6661141420
|
[1] |
CAP STEERING WHEEL
|
0.0572(lbs); 0.026
|
| 042. |
0401350120
|
[1] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 043. |
0451250120
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 044. |
0217250120
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 045. |
3521718370
|
[1] |
CARD INSTRUCTION
|
0.0022(lbs); 0.001
|
