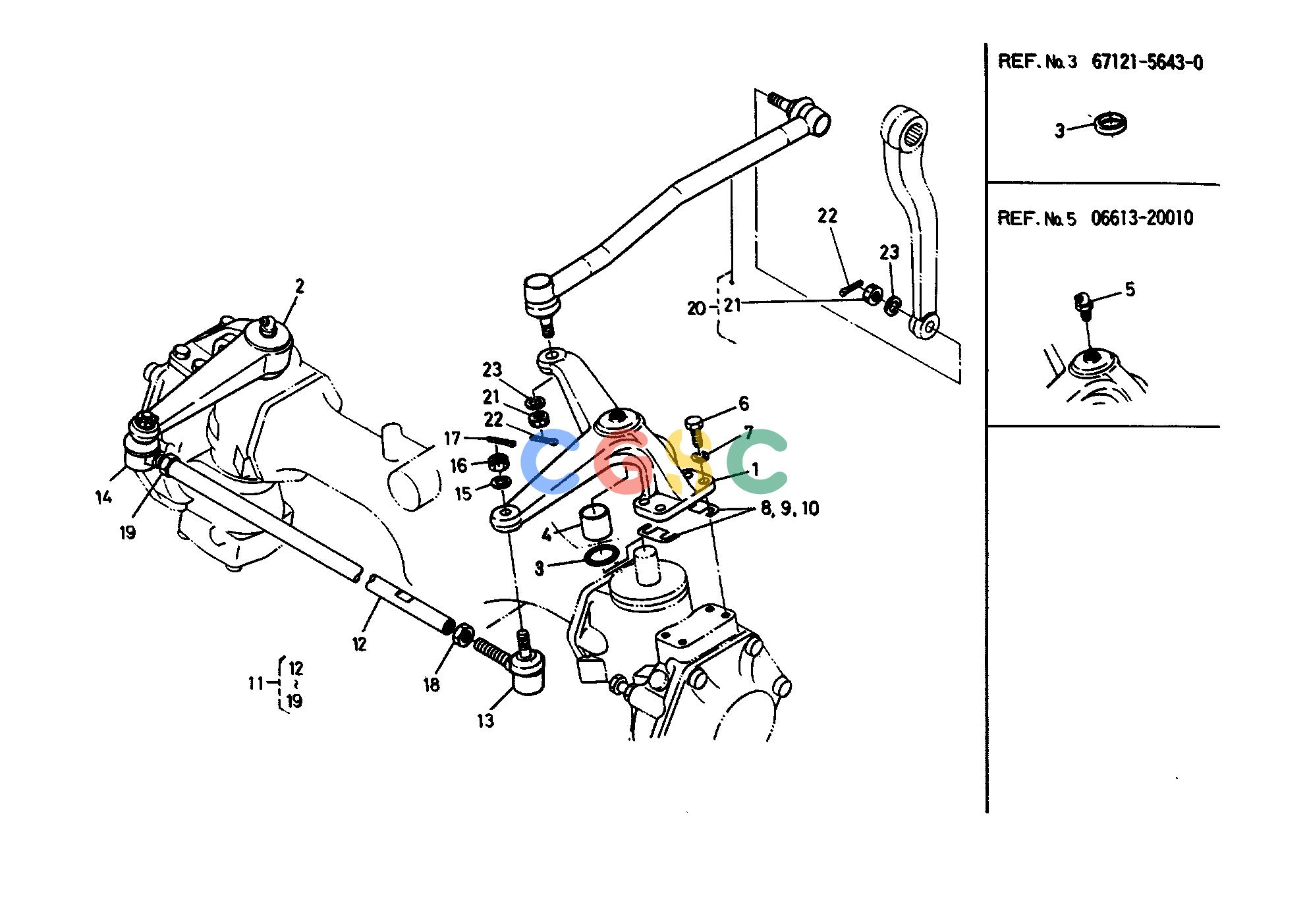

久保田零件查询T06500 KNUCKLE ARM [DP] OLD TYPE STEERINGEPC Kubota online

广数供应链运营团队, 15 02月, 2025，浏览： 944 次

Pos.	Part No	Qty	Parts name	Comments
001.	6722156410	[1]	ARM KNUCKLE LH	; <=11833 4.4880(lbs); 2.040
001.	6722156412	[1]	ARM KNUCKLE LH	; =>11834 4.4440(lbs); 2.020
002.	6712156420	[1]	ARM KNUCKLE RH	; <=11833 3.4100(lbs); 1.550
002.	6712156423	[1]	ARM KNUCKLE RH	; =>11834 1.1880(lbs); 0.540
003.	6712156430	[2]	SEAL DUST	; <=11833 0.0176(lbs); 0.008
003.	0481100250	[2]	O RING	; =>11834 0.0022(lbs); 0.001
004.	6712156440	[2]	BUSH	0.0440(lbs); 0.020
005.	0661320010	[2]	NIPPLE GREASE	; <=11833 0.0220(lbs); 0.010
006.	0115351028	[8]	BOLT	0.0440(lbs); 0.020
007.	0451250100	[8]	WASHER SPRING	0.0066(lbs); 0.003
008.	6712156450	[4]	SHIM 1	0.0044(lbs); 0.002
009.	9712156460	[4]	SHIM 2	0.0000(lbs); 0.000
010.	6712156470	[4]	SHIM 3	0.0022(lbs); 0.001
011.	9712156500	[1]	ASSY ROD TIE 2	REF.NO.012 TO 019 0.0000(lbs); 0.000
012.	6712156510	[1]	ROD TIE 2	1.8700(lbs); 0.850
013.	6712156520	[1]	END TIE ROD LH	0.5280(lbs); 0.240
014.	6712156530	[1]	END TIE ROD RH	0.5060(lbs); 0.230
015.	0451250100	[2]	WASHER SPRING	0.0066(lbs); 0.003
016.	6659156780	[2]	NUT SLOTTED	0.0220(lbs); 0.010
017.	0551152520	[2]	PIN SPLIT	0.0022(lbs); 0.001
018.	0217250120	[1]	NUT	0.0220(lbs); 0.010
019.	6712156540	[1]	SCREW	0.0154(lbs); 0.007
020.	6620457100	[1]	ASSY LINK DRAG	REF.NO.021 5.0600(lbs); 2.300
021.	6659156780	[2]	NUT SLOTTED	0.0220(lbs); 0.010
022.	0551152528	[2]	PIN SLIT	0.0022(lbs); 0.001
023.	0451250100	[2]	WASHER SPRING	0.0066(lbs); 0.003
