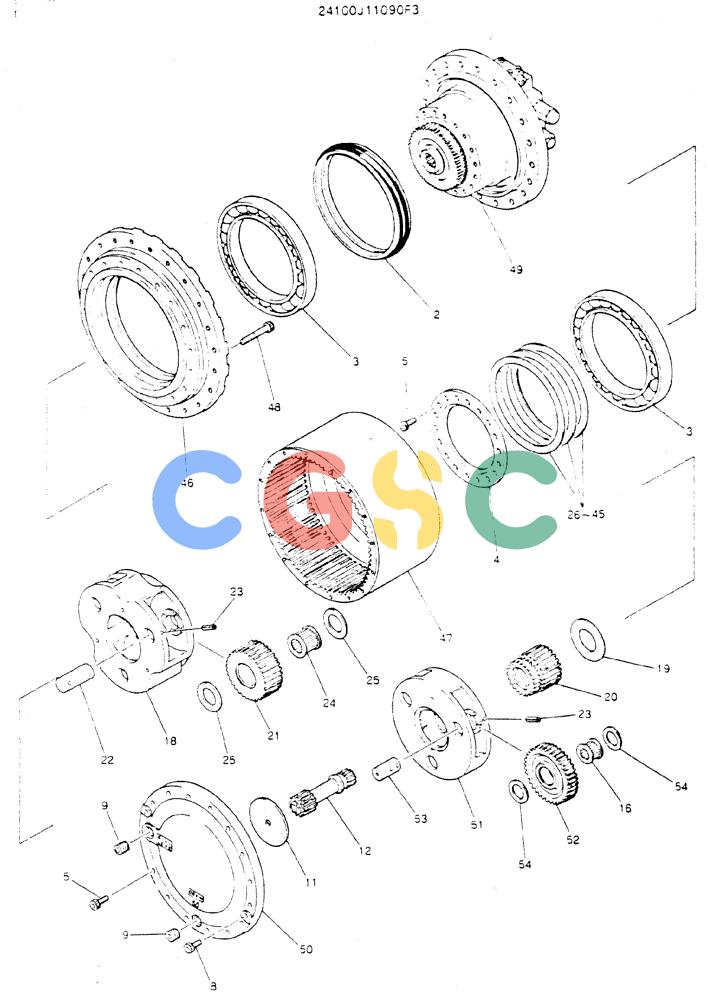

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (07-006) - REDUSTION UNIT (PROPEL) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
918 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J11090F3 | [1] | HYDRAULIC MOTOR | KOBUNIT |
| 2. | ZD57F30040 | [1] | SEAL | KOB Superseded by part number: ZD58F30040 |
| 3. | 2425R217 | [2] | BEARING | KOB |
| 4. | 2418N4714 | [1] | RETAINER | KOB |
| 5. | ZS23C10025 | [34] | SCREW,Hex Socket Head, M10 x 25mm | KOBM10x1.50x25mm Superseded by part number: ZS28C10025 |
| 8. | ZS23C10014 | [2] | BOLT,Hex Socket Head, M10 x 14mm | KOBM10x1.50x14mm Superseded by part number: ZS28C10014 |
| 9. | ZE82T12000 | [2] | PLUG | KOB3/4" PT |
| 11. | 2418T19791 | [1] | SPACER | KOB |
| 12. | 2401P1272 | [1] | SUN GEAR | KOB |
| 16. | 2425Z531 | [3] | NEEDLE BEARING | KOB |
| 18. | 2413J372 | [1] | DIFF. SPIDER | KOBSPIDER |
| 19. | 2418P20198D4 | [1] | SPACER | KOB |
| 20. | 2401P1273 | [1] | SUN GEAR | KOB |
| 21. | 2401P1275 | [3] | PINION | KOBPLANETARY |
| 22. | 2410T342 | [3] | ROLLER SHAFT | KOB |
| 23. | ZP26D06032 | [6] | ROLL PIN | KOB |
| 24. | 2425Z529 | [3] | NEEDLE BEARING | KOBBEARING, NEEDLE |
| 25. | 2418T19790 | [6] | THRUST WASHER | KOB |
| 26. | 2420P1534D1 | [1] | SHIM | KOB1.1 |
| 27. | 2420P1534D2 | [1] | SHIM | KOB1.2 |
| 28. | 2420P1534D3 | [1] | SHIM | KOB1.3 Superseded by part number: 2420P1534D4 |
| 29. | 2420P1534D4 | [1] | SHIM | KOB1.4 |
| 30. | 2420P1534D5 | [1] | SHIM | KOB1.5 |
| 31. | 2420P1534D6 | [1] | SHIM | KOB1.6 |
| 32. | 2420P1534D7 | [1] | SHIM | KOB1.7 |
| 33. | 2420P1534D8 | [1] | SHIM | KOB1.8 |
| 34. | 2420P1534D9 | [1] | SHIM | KOB1.9 |
| 35. | 2420P1534D10 | [1] | SHIM | KOB2.0 |
| 36. | 2420P1534D11 | [1] | SHIM | KOB2.1 |
| 37. | 2420P1534D12 | [1] | SHIM | KOB2.2 |
| 38. | 2420P1534D13 | [1] | SHIM | KOB2.3 |
| 39. | 2420P1534D14 | [1] | SHIM | KOB2.4 |
| 40. | 2420P1534D15 | [1] | PIN | KOBSHIM 2.5 |
| 41. | 2420P1534D16 | [1] | SHIM | KOB2.6 |
| 42. | 2420P1534D17 | [1] | SHIM | KOB2.7 |
| 43. | 2420P1534D18 | [1] | SHIM | KOB2.8 |
| 44. | 2420P1534D19 | [1] | SHIM | KOB2.9 |
| 45. | 2420P1534D20 | [1] | SHIM | KOB3.0 |
| 46. | 2418N4716 | [1] | HUB | KOB |
| 47. | 2401N469 | [1] | RING GEAR | KOB |
| 48. | ZS23C16075 | [18] | SCREW,Hex Socket Head, M16 x 75mm | KOBM16x2.0x75mm |
| 49. | 2441U820F1 | [1] | MOTOR | KOBSEE (C.P.M.) |
| 50. | 2414N4376 | [1] | COVER | KOB |
| 51. | 2413J380 | [1] | DIFF. SPIDER | KOBSPIDER |
| 52. | 2401P1323 | [3] | PINION | KOB |
| 53. | 2410T363 | [3] | ROLLER SHAFT | KOB |
| 54. | 2418T20981 | [6] | THRUST WASHER | KOB |
