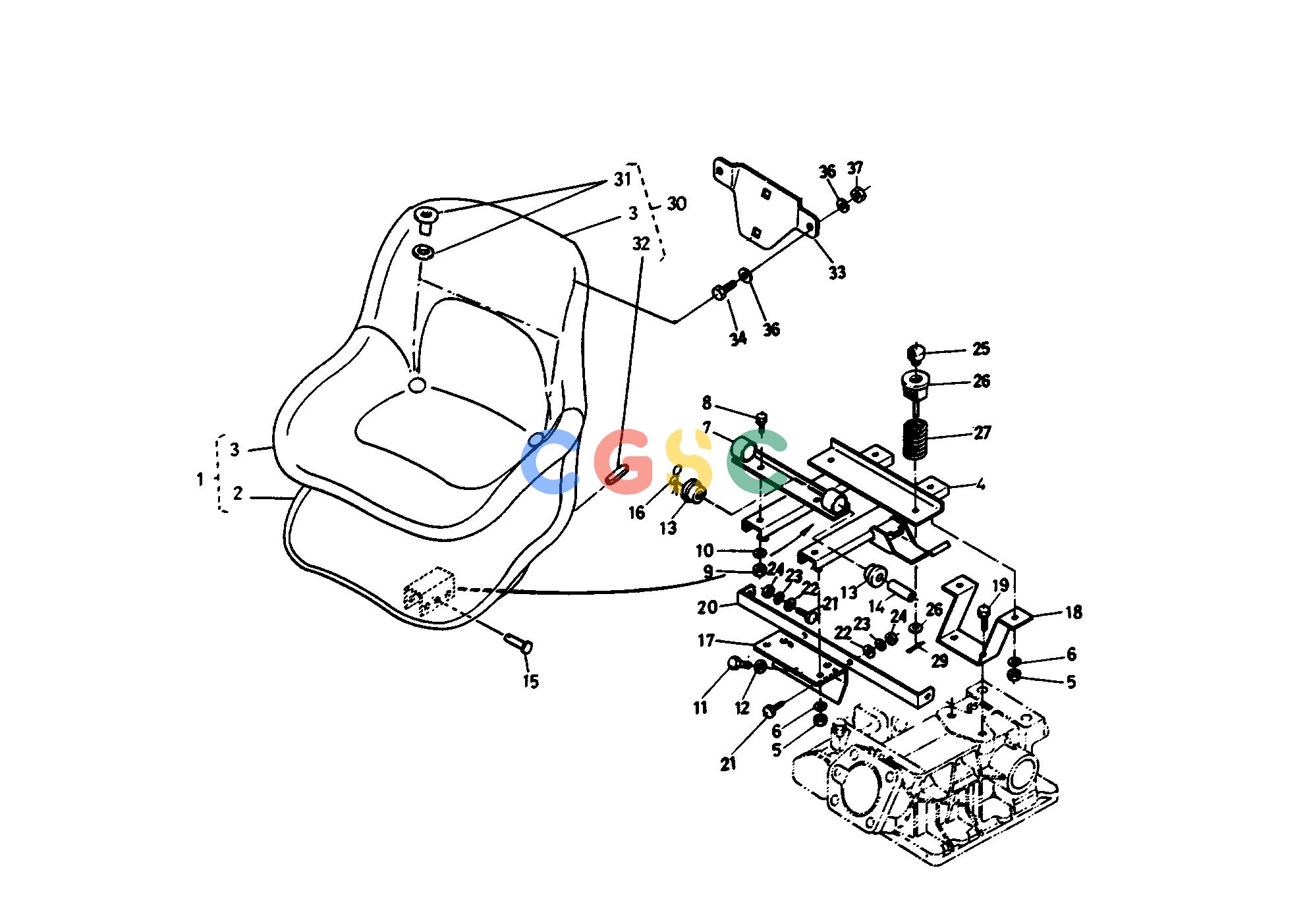

久保田零件查询T04700 SEAT HOOD (BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
886 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6671145900
|
[1] |
ASSY SEAT
|
10.5600(lbs); 4.800
|
| 004. |
6620445930
|
[1] |
ADJUSTER SEAT
|
4.6200(lbs); 2.100
|
| 005. |
0211850100
|
[4] |
NUT
|
0.0110(lbs); 0.005
|
| 006. |
0451250100
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 007. |
6620445940
|
[1] |
SUPPORT SEAT FRONT
|
0.6380(lbs); 0.290
|
| 008. |
0115050814
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 009. |
0211450080
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 010. |
0451250080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 011. |
6671136440
|
[2] |
BOLT
|
0.0990(lbs); 0.045
|
| 012. |
0451250120
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 013. |
6659141540
|
[4] |
CUSHION
|
0.0220(lbs); 0.010
|
| 014. |
6659141550
|
[2] |
COLLAR
|
0.0440(lbs); 0.020
|
| 015. |
0512251045
|
[2] |
PIN JOINT
|
0.0638(lbs); 0.029
|
| 016. |
0551651000
|
[2] |
PIN SNAP
|
0.0044(lbs); 0.002
|
| 017. |
6620445950
|
[1] |
BRACKET FRONT
|
0.0000(lbs); 0.000
|
| 018. |
6620445960
|
[1] |
BRACKET REAR
|
0.0000(lbs); 0.000
|
| 019. |
0112350825
|
[2] |
BOLT
|
0.0286(lbs); 0.013
|
| 020. |
6620445990
|
[1] |
STAY FENDER
|
0.0000(lbs); 0.000
|
| 021. |
0115050820
|
[4] |
BOLT
|
0.0242(lbs); 0.011
|
| 022. |
0401350080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 023. |
0451250080
|
[4] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 024. |
0211450080
|
[4] |
NUT
|
0.0110(lbs); 0.005
|
| 025. |
3216018440
|
[2] |
CUSHION
|
0.0286(lbs); 0.013
|
| 026. |
6620445970
|
[2] |
SUPPORT SPRING
|
0.2200(lbs); 0.100
|
| 027. |
6620445980
|
[2] |
SPRING SEAT
|
0.2200(lbs); 0.100
|
| 028. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 029. |
0551150215
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 030. |
6670483500
|
[1] |
ASSY COVER SEAT
|
0.8800(lbs); 0.400
|
| 031. |
3511085050
|
[4] |
EYE-LET
|
0.0110(lbs); 0.005
|
| 032. |
3511085060
|
[3] |
PROTECTOR
|
0.0220(lbs); 0.010
|
| 033. |
6670454950
|
[1] |
BRACKET EMBLEM SMV
|
0.0000(lbs); 0.000
|
| 034. |
0105050616
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 035. |
0401350060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 036. |
0451250060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 037. |
0201450060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
