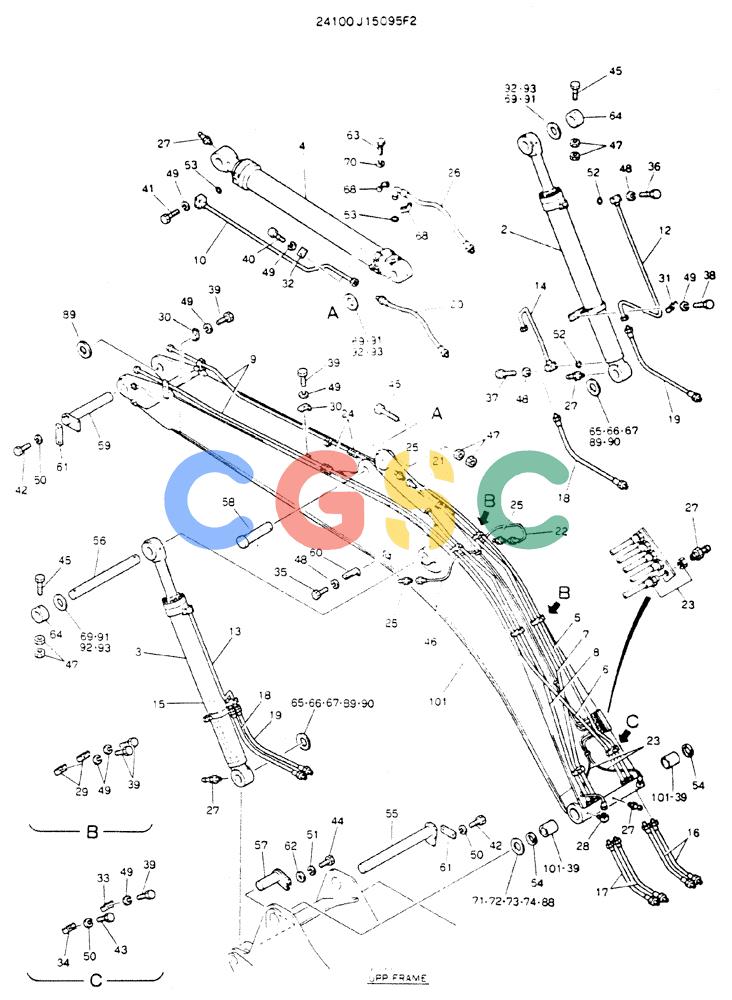

| . . | 24100J15095F2 | [1] | BOOM ASSY, 5.6M | |
| 2. | 2438U1106F1 | [1] | CYLINDER | KOBSEE (C.P.M.) |
| 3. | 2438U1107F1 | [1] | CYLINDER | KOBSEE (C.P.M.) Superseded by part number: 2438U1106F1 |
| 4. | 2438U1108F1 | [1] | CYLINDER | KOBSEE (C.P.M.) |
| 5. | 2418P26577 | [1] | TUBE | TUBE |
| 6. | 2418P26578 | [1] | TUBE | TUBE |
| 7. | 2418P27922 | [1] | RIGID TUBE | KOB |
| 8. | 2418P26580 | [1] | TUBE | KOB |
| 9. | 2418P26581 | [2] | RIGID TUBE | KOB |
| 10. | 2418P22219D1 | [1] | RIGID TUBE | KOB |
| 12. | 2418P21595D1 | [1] | TUBE | KOB |
| 13. | 2418P21595D2 | [1] | RIGID TUBE | KOB |
| 14. | 2418P12146D1 | [1] | RIGID TUBE | KOB |
| 15. | 2418P12146D2 | [1] | RIGID TUBE | KOB |
| 16. | ZX26T12094 | [2] | FLEXIBLE HOSE | KOB Superseded by part number: 2444R1177D2 |
| 17. | 2444R1090D1 | [2] | HOSE | KOB |
| 18. | ZX26T12080 | [2] | FLEXIBLE HOSE | KOBHOSE Superseded by part number: 2444R1177D1 |
| 19. | ZX26N10080 | [2] | FLEXIBLE HOSE | KOB Superseded by part number: ZX28N10080 |
| 20. | ZX26T16080 | [2] | FLEXIBLE HOSE | KOB Superseded by part number: 2444R1175D1 |
| 21. | 2444R1117D305 | [1] | FLEXIBLE HOSE,6.40mm ID x 3050mm L | KOB3050mm Long Superseded by part number: HX21E04305DY |
| 22. | 2444R1117D235 | [1] | HOSE,6.40mm ID x 2350mm L | KOB Superseded by part number: HX21E04235DY |
| 23. | 2444R1117D088 | [2] | HOSE,6.40mm ID x 880mm L | KOB Superseded by part number: HX21E04090DY |
| 24. | ZF23B28000 | [2] | HYD CONNECTOR | KOB Superseded by part number: 47641651 |
| 25. | ZH22Z04000 | [3] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 26. | 2444R1100D1 | [1] | FLEXIBLE HOSE | KOB900mm Long (35-7/16 in) Superseded by part number: 2444R2522D1 |
| 27. | ZG91S02000 | [9] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 28. | ZH32Z04000 | [2] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 29. | 2432T2434 | [4] | CLAMP | KOBDouble Line -- 129x38x15mm (Ø29xØ36mm) |
| 30. | ZC26X28014 | [4] | CLAMP | KOBSingle Line -- 75x37x38mm (Ø28mm) |
| 31. | 2432T2242 | [2] | CLAMP | KOBDouble -- 106x38x12mm (Ø23xØ29mm) |
| 32. | 2432T2363 | [1] | CLAMP | KOB Superseded by part number: YN42H01078P1 |
| 33. | ZC36X28014 | [1] | CLAMP | KOBDouble Line -- 100x38x16mm (Ø30mm) |
| 34. | ZC36X35016 | [1] | CLAMP | KOB |
| 35. | ZS13C10020 | [1] | SCREW | KOBM10x1.50x20mm Superseded by part number: ZS18C10020 |
| 36. | ZS13C10060 | [8] | SCREW | KOBM10x1.50x60mm Superseded by part number: ZS18C10060 |
| 37. | ZS13C10070 | [8] | SCREW | KOBM10x1.50x70mm Superseded by part number: ZS18C10070 |
| 38. | ZS13C12050 | [2] | SCREW | KOBM12x1.75x50mm Superseded by part number: ZS18C12050 |
| 39. | ZS13C12055 | [9] | SCREW | KOBM12x1.75x55mm Superseded by part number: ZS18C12055 |
| 40. | ZS13C12065 | [1] | SCREW | KOB Superseded by part number: ZS18C12065 |
| 41. | ZS13C12090 | [4] | SCREW | KOBM12x1.75x90mm Superseded by part number: ZS18C12090 |
| 42. | ZS13C14030 | [4] | SCREW | KOBM14x2.0x30mm Superseded by part number: ZS18C14030 |
| 43. | ZS13C14065 | [1] | SCREW | KOBM14x2.0x65mm Superseded by part number: ZS18C14065 |
| 44. | ZS13C16030 | [2] | SCREW | KOBM16x2.0x30mm |
| 45. | 2420T4330D2 | [3] | SCREW,M16 x 2 x 150mm | KOBM16x2.0x150mm Superseded by part number: HS18C16150G1 |
| 46. | 2444R1117D245 | [1] | HOSE,6.40mm ID x 2450mm L | KOB Superseded by part number: HX21E04245DY |
| 47. | ZN13C16013 | [6] | NUT | KOBM16x2.0mm |
| 48. | ZW22X10000 | [17] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 49. | ZW22X12000 | [16] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 50. | ZW22X14000 | [5] | LOCK WASHER | KOBID 14 x OD 24.5 x Th 3.5mm Superseded by part number: ZW26X14000 |
| 51. | ZW22X16000 | [2] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 52. | ZD12P02600 | [4] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 53. | ZD12P03400 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 54. | 2445R220D6 | [2] | SEAL,90mm ID x 105mm OD x 6mm Thk | KOBDust -- ID 90 X OD 105 x Th 6mm |
| 55. | 2419T4651 | [1] | PIN | KOB Superseded by part number: 2419T7607, 2419T5490 |
| 56. | 2419P1707D1 | [1] | PIN | KOB |
| 57. | 2419P3687 | [2] | PIN | KOB |
| 58. | 2419P3414 | [1] | LARGE PIN | KOBPIN, LARGE |
| 59. | 2419T6440 | [1] | PIN | KOB Superseded by part number: 2419T7613 |
| 60. | 2416T13056 | [1] | BRACKET | KOB |
| 61. | 2418T12469 | [2] | PLATE | KOB150 x 50 x Th 12mm, 2-Ø16 Holes |
| 62. | 2418T17550 | [2] | PLATE | KOBID 18 x OD 60 x Th 06mm |
| 63. | ZS23C12040 | [4] | SCREW,Hex Socket Head, M12 x 40mm | KOBM12x1.75x40mm |
| 64. | 2411T671D5 | [2] | BOSS | KOB |
| 65. | B16T0442D3 | [2] | SHIM,150mm OD x 82mm ID x 1.2mm Thk | KOBID 82 x OD 150 x Th 1.2mm |
| 66. | B16T0442D4 | [2] | SHIM,82mm ID x 150mm OD x 1.6mm Thk | KOBID 82 x OD 150 x Th 1.6mm |
| 67. | B16T0442D6 | [2] | SHIM,150mm OD x 82mm ID x 2.3mm Thk | KOBID 82 x OD 150 x Th 2.3mm |
| 68. | ZE13X16000 | [2] | FLANGE | KOBClamp, Half -- (Incls. Capscrew & Lockwasher) |
| 69. | B16T0442D62 | [3] | SHIM,87mm ID x 140mm OD x 1.6mm Thk | KOBID 87 x OD 140 x Th 1.6mm |
| 70. | ZW22K12000 | [4] | LOCK WASHER | KOBID 12.2 x OD 17.8 x Th 2.5mm |
| 71. | B16T0442D40 | [1] | SHIM,92mm ID x 160mm OD x 0.9mm Thk | KOBID 92 x OD 160 x Th 0.9mm |
| 72. | B16T0442D13 | [1] | SHIM,160mm OD x 92mm ID x 1.2mm Thk | KOBID 92 x OD 160 x Th 1.2mm |
| 73. | B16T0442D14 | [1] | SHIM,160mm OD x 92mm ID x 1.6mm Thk | KOBID 92 x OD 160 x Th 1.6mm |
| 74. | B16T0442D15 | [1] | SHIM,160mm OD x 92mm ID x 2.3mm Thk | KOBID 92 x OD 160 x Th 2.3mm |
| 88. | B16T0442D53 | [1] | SHIM,92mm ID x 160mm OD x 0.5mm Thk | KOBID 92 x OD 160 x Th 0.5mm |
| 89. | B16T0442D52 | [3] | SHIM,82mm ID x 100mm OD x 0.5mm Thk | KOBID 82 x OD 150 x Th 0.5mm |
| 90. | B16T0442D39 | [2] | SHIM,82mm ID x 150mm OD x 0.9mm Thk | KOBID 82 x OD 150 x Th 0.9mm |
| 91. | B16T0442D76 | [3] | SHIM,140mm OD x 87mm ID x 1.2mm Thk | KOBID 87 x OD 140 x Th 1.2mm |
| 92. | B16T0442D77 | [3] | SHIM,87mm ID x 140mm OD x 0.9mm Thk | KOBID 87 x OD 140 x Th 0.9mm |
| 93. | B16T0442D78 | [3] | SHIM,87mm ID x 140mm OD x 0.5mm Thk | KOBID 87 x OD 140 x Th 0.5mm |
| 101. | 2411J4693F1 | [1] | BOOM | |
| 101-39. | 2405T1837 | [2] | BUSHING | KOB |
