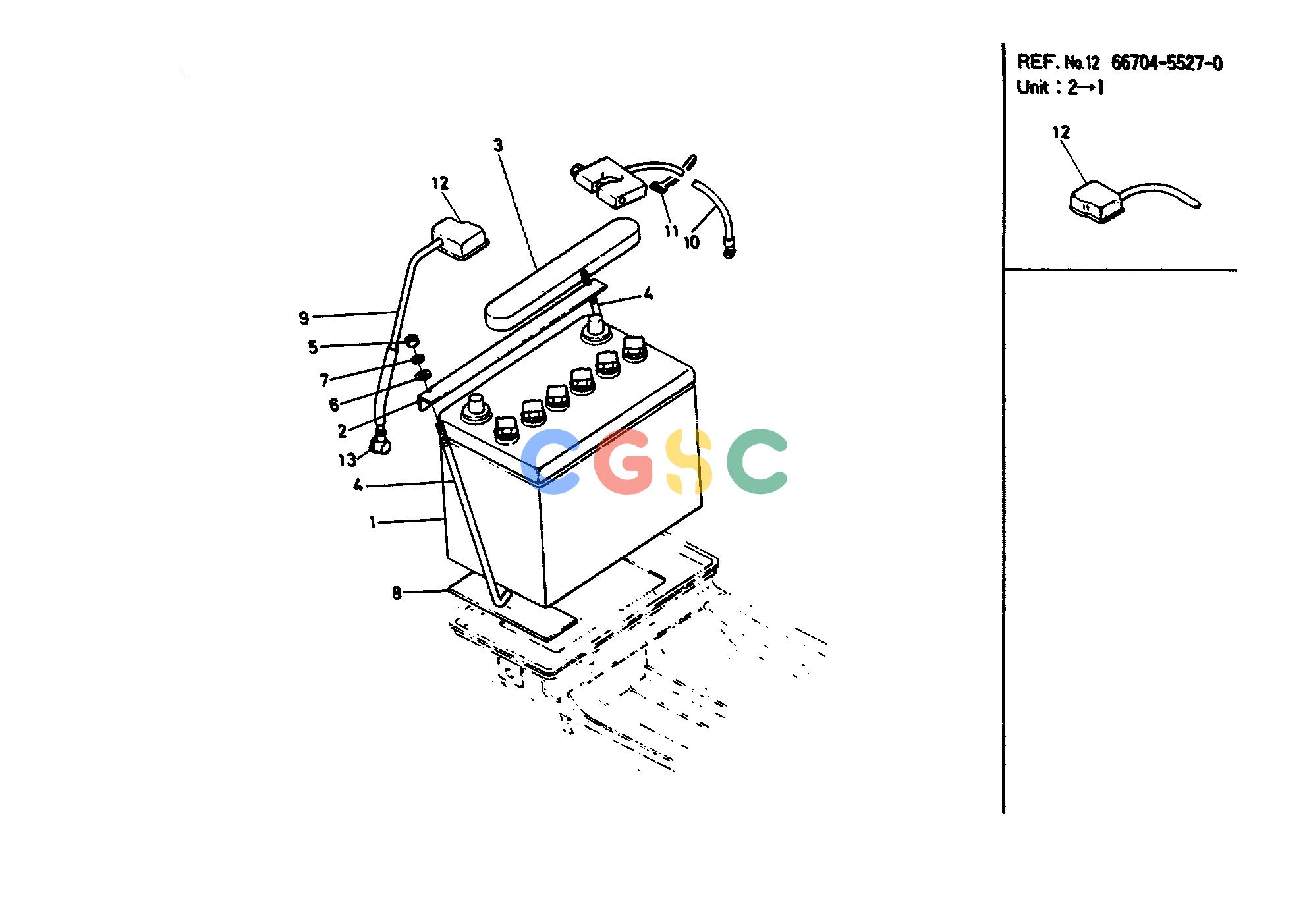

久保田零件查询T05600 BATTERY ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
956 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6670455430
|
[1] |
BATTERY
|
20.4600(lbs); 9.300
|
| 002. |
6659154480
|
[1] |
RETAINER BATTERY
|
0.0000(lbs); 0.000
|
| 002. |
6670454482
|
[1] |
RETAINER BATTERY
|
0.3080(lbs); 0.140
|
| 003. |
6664155430
|
[1] |
COVER BATTERY
|
0.1540(lbs); 0.070
|
| 004. |
6659154490
|
[2] |
BOLT
|
0.1056(lbs); 0.048
|
| 005. |
0201450060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 006. |
0401350060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 007. |
0451250060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 008. |
6659154510
|
[2] |
CUSHION BATTERY
|
0.0440(lbs); 0.020
|
| 009. |
6670955450
|
[1] |
CORD BATTERY
|
0.5500(lbs); 0.250
|
| 009. |
H667055430
|
[1] |
CORD BATTERY
|
0.5500(lbs); 0.250
|
| 010. |
6670455460
|
[1] |
CORD BATTERY
|
0.3630(lbs); 0.165
|
| 011. |
3435029380
|
[1] |
CLAMP
|
0.0022(lbs); 0.001
|
| 012. |
6670455270
|
[1] |
CAP TERMINAL
|
0.0330(lbs); 0.015
|
| 013. |
6659155190
|
[1] |
CAP TERMINAL
|
0.0264(lbs); 0.012
|
