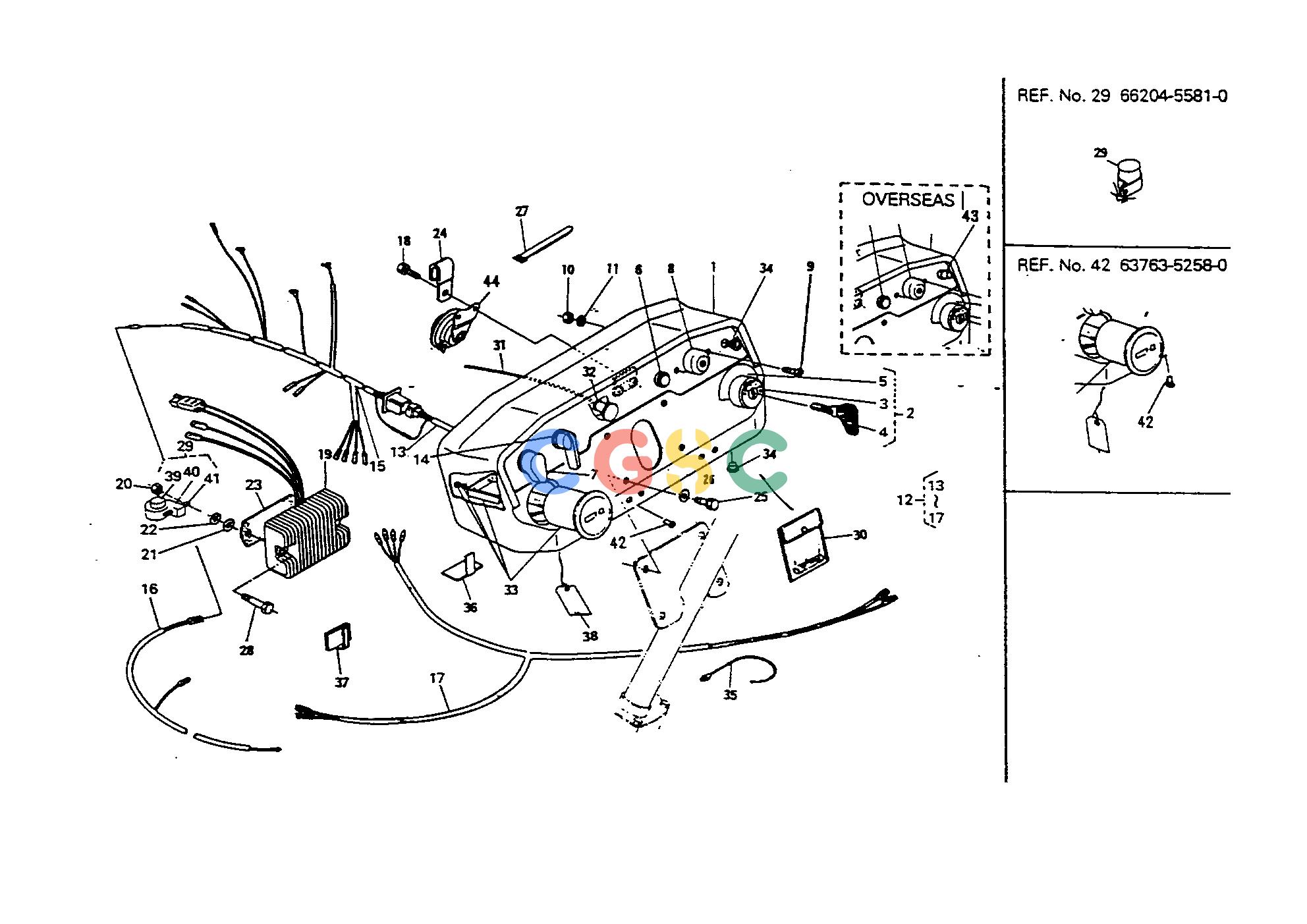

久保田零件查询T05700 PANEL ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
889 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6620455112
|
[1] |
PANEL
|
0.0000(lbs); 0.000
|
| 002. |
6670655120
|
[1] |
ASSY SWITCH STARTER
|
0.5632(lbs); 0.256
|
| 003. |
6671155130
|
[1] |
SWITCH STARTER
|
0.5302(lbs); 0.241
|
| 004. |
6671155140
|
[2] |
KEY
|
0.0000(lbs); 0.000
|
| 005. |
6670655150
|
[1] |
LABEL STARTER SWITCH
|
0.0022(lbs); 0.001
|
| 006. |
6671155290
|
[1] |
ASSY LAMP OIL
|
0.0352(lbs); 0.016
|
| 007. |
5531141120
|
[1] |
SWITCH
|
0.1100(lbs); 0.050
|
| 008. |
1523165950
|
[1] |
LAMP GLOW
|
0.0990(lbs); 0.045
|
| 009. |
0105050512
|
[2] |
BOLT
|
0.0066(lbs); 0.003
|
| 010. |
0205450050
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 011. |
0451250050
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 012. |
6620455162
|
[1] |
ASSY WIRE HARNESS
|
1.3420(lbs); 0.610
|
| 012. |
6620155160
|
[1] |
ASSY WIRE HARNESS
|
2.3980(lbs); 1.090
|
| 013. |
6620455170
|
[1] |
WIRE HARNESS 1
|
0.6270(lbs); 0.285
|
| 013. |
6670455173
|
[1] |
WIRE HARNESS 1
|
0.5852(lbs); 0.266
|
| 014. |
6662155190
|
[1] |
SWITCH LIGHTING
|
0.1474(lbs); 0.067
|
| 015. |
6620455182
|
[1] |
WIRE HARNESS 2
|
0.4400(lbs); 0.200
|
| 015. |
6670455180
|
[1] |
WIRE HARNESS 2
|
0.4312(lbs); 0.196
|
| 016. |
6671155190
|
[1] |
WIRE HARNESS 3
|
0.0374(lbs); 0.017
|
| 017. |
6620455192
|
[1] |
WIRE HARNESS 4
|
0.2090(lbs); 0.095
|
| 018. |
0120250612
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 019. |
1537264600
|
[1] |
REGULATOR
|
0.4840(lbs); 0.220
|
| 020. |
0201450060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 021. |
0401350060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 022. |
0451250060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 023. |
6670455260
|
[1] |
CUSHION
|
0.0198(lbs); 0.009
|
| 024. |
1331369750
|
[1] |
ASSY CLAMP CORD
|
0.0000(lbs); 0.000
|
| 025. |
0112050818
|
[4] |
BOLT
|
0.0000(lbs); 0.000
|
| 026. |
0401350080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 027. |
3435029380
|
[2] |
CLAMP
|
0.0022(lbs); 0.001
|
| 028. |
0105050640
|
[2] |
BOLT
|
0.0000(lbs); 0.000
|
| 029. |
6620455810
|
[1] |
UNIT
|
0.0000(lbs); 0.000
|
| 029. |
6620455812
|
[1] |
ASSY UNIT
|
0.1320(lbs); 0.060
|
| 030. |
6659155520
|
[1] |
ASSY FUSE
|
0.0088(lbs); 0.004
|
| 031. |
6671143510
|
[1] |
WIRE DECOMPRESS
|
0.2046(lbs); 0.093
|
| 032. |
0401150100
|
[1] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 033. |
6670455310
|
[1] |
METER HOUR
|
0.4840(lbs); 0.220
|
| 034. |
3511032420
|
[3] |
PLUG
|
0.0044(lbs); 0.002
|
| 035. |
6670455510
|
[1] |
BAND
|
0.0044(lbs); 0.002
|
| 036. |
6661155190
|
[6] |
CLAMP 2
|
0.0022(lbs); 0.001
|
| 037. |
6670655220
|
[10] |
CLAMP
|
0.0044(lbs); 0.002
|
| 038. |
6670647380
|
[1] |
CARD CAUTION
|
0.0022(lbs); 0.001
|
| 039. |
6620455830
|
[1] |
BODY
|
1.1000(lbs); 0.500
|
| 040. |
6620455840
|
[1] |
BAND
|
0.0132(lbs); 0.006
|
| 041. |
6620455820
|
[1] |
STAY
|
0.0220(lbs); 0.010
|
| 042. |
6376352580
|
[2] |
RUBBER
|
0.0022(lbs); 0.001
|
| 042. |
1315167160
|
[2] |
PLUG
|
0.0220(lbs); 0.010
|
| 042. |
3415934290
|
[1] |
PLUG
|
0.0088(lbs); 0.004
|
| 043. |
5471141830
|
[1] |
SWITCH
|
0.0308(lbs); 0.014
|
| 044. |
6659155300
|
[1] |
ASSY HORN
|
0.3300(lbs); 0.150
|
