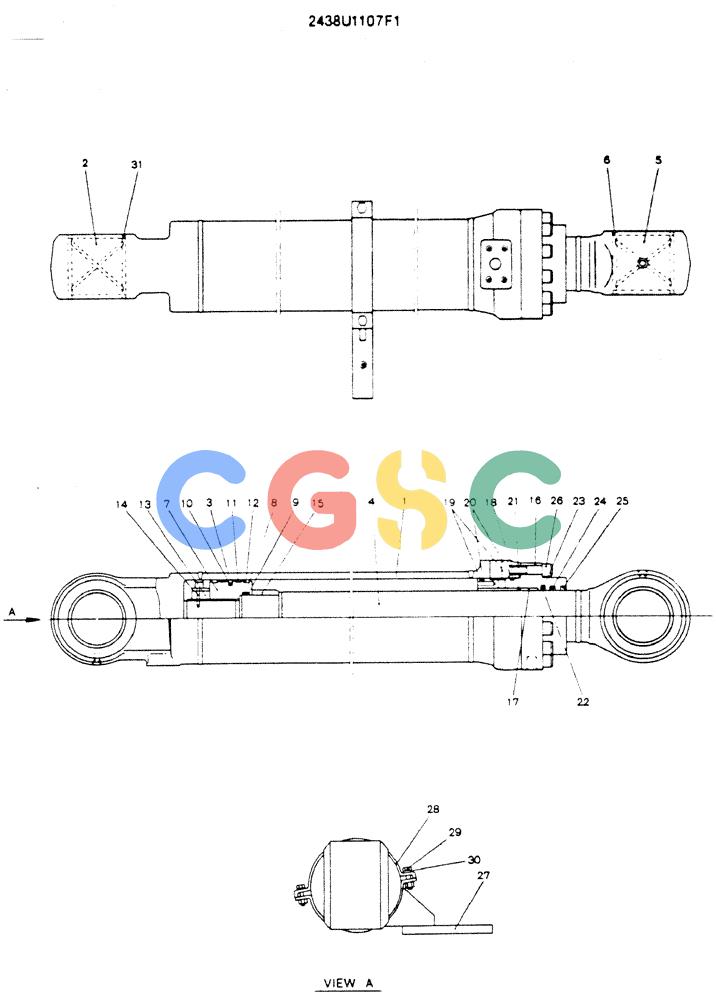

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (15-002) - CYLINDER ASSY (L. H. BOOM) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
398 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2438U1107F1 | [1] | CYLINDER | KOBASSY CONSISTS OF THE FOLLOWING PARTS Superseded by part number: 2438U1106F1 |
| 1. | 2438U1106S1 | [1] | BARREL | KOB |
| 2. | 2438U1106S2 | [1] | BUSHING | KOBID 79.29mm x OD 90.12mm x H 89.98mm |
| 3. | R45P0049D9 | [1] | SEAL | KOBSLIPPER |
| 4. | 2438U1106S4 | [1] | PISTON ROD | KOB |
| 5. | 2438U1106S5 | [1] | BUSHING | KOBID 84.33mm x OD 95.18mm x H 90.02mm |
| 6. | 2438U1106S6 | [2] | SEAL | KOB |
| 7. | 2438U1106S7 | [1] | PISTON | KOBPISTON |
| 8. | ZD12G07500 | [1] | O-RING,74.40mm ID x 80.60mm OD x 3.10mm | KOBID 74.4mm x OD 77.5mm |
| 9. | ZD75G07500 | [2] | RING | KOBBACK UP |
| 10. | R45P0051D14 | [1] | O-RING | KOB |
| 11. | 2438U1106S11 | [2] | WEAR RING | KOB |
| 12. | 2438U996S12 | [2] | WEAR RING | KOB |
| 13. | 2438U995S11 | [1] | NUT | KOB |
| 14. | 2438U308S45 | [1] | LOCKING RING | KOBLOCK |
| 15. | 2438U1106S15 | [1] | RING | RING |
| 16. | 2438UU06S16 | [1] | COVER, ROD | |
| 17. | 2438U1106S17 | [1] | BUSHING | KOB |
| 18. | 2438U278S24 | [1] | CLIP | KOB |
| 19. | ZD12G12000 | [2] | O-RING,3.1mm Thk x 119.4mm ID, 90 Duro | KOBO-Ring -- ID 119.40 ± 0.98 x OD 125mm |
| 20. | ZD75G12000 | [2] | BACK-UP RING | KOB |
| 21. | 2438U1106S21 | [1] | RING | KOB |
| 22. | 2438U278S25 | [1] | RING | KOBSEAL Superseded by part number: R45P0050D3 |
| 23. | 45291D125 | [1] | O-RING | |
| 24. | 2438U914D1S21 | [1] | PACKING | KOB Superseded by part number: 2438U307S35 |
| 25. | 2438U914S28 | [1] | DUST CAP | KOB Superseded by part number: 2438U914D1S28 |
| 26. | ZS23C14055 | [12] | SCREW,Hex Socket Head, M14 x 55mm | KOBM14x2.0x55mm |
| 27. | 2438U1106S27 | [1] | BRACKET | KOB |
| 28. | 2438U914D1S24 | [1] | U-BRACKET | KOB |
| 29. | ZS16C10030 | [2] | CAPSCREW | KOBSCREW M10x1.50x30mm Superseded by part number: ZS18C10030 |
| 30. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 31. | 2438U1106S31 | [2] | SEAL | KOB Superseded by part number: 2438U1109S28 |
| . . | 2438U1106R100 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 19-25 Superseded by part number: 2438U1106R100P |
| . . | 2438U1106R200 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 3, 8-12 |
| . . | 2438U1106R300 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 3, 8-12, 19-25 |
| . . | 2438U1106R400 | [1] | CYLINDER | KOBREPAIR KIT CONSISTS OF ITEM 1-26, 31 Superseded by part number: 2438U1106F1 |
