神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (15-003) - CYLINDER ASSY (ARM) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
623 次

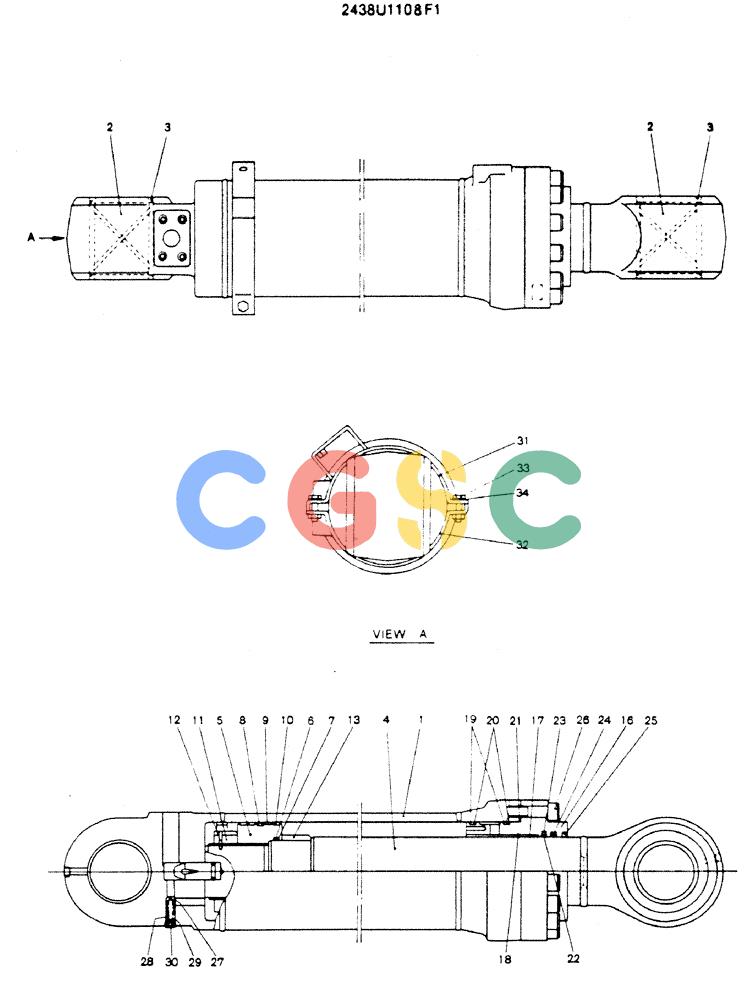

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2438U1108F1 | [1] | CYLINDER | KOBASSY (ARM) CONSISTS OF THE FOLLOWING PARTS |
| 1. | 2438U1108S1 | [1] | TUBE | KOB |
| 2. | 2438U1108S2 | [2] | BUSHING | KOB |
| 3. | 2438U1106S6 | [4] | SEAL | KOB |
| 4. | 2438U1108S4 | [1] | PISTON ROD | KOB |
| 5. | 2438U941S5 | [1] | PISTON | KOB |
| 6. | ZD12G09000 | [1] | O-RING,89.40mm ID x 95.60mm OD x 3.10mm | KOBID 89.40 ± 0.77 x OD 95mm |
| 7. | ZD75G09000 | [2] | RING | KOB |
| 8. | 2438U982S6 | [1] | SEAL | KOB |
| 9. | 2438U1108S9 | [2] | RING, WEAR | |
| 10. | 2438U941S10 | [2] | WEAR RING | KOB |
| 11. | 2438U941S11 | [1] | NUT | KOBPISTON |
| 12. | 2438U588S11 | [1] | LOCKING RING | KOBLOCK |
| 13. | 2438U1108S13 | [1] | RING | KOB |
| 16. | 2438U1108S16 | [1] | COVER ASSY | KOB |
| 17. | 2438U1108S17 | [1] | BUSHING | KOB |
| 18. | 2418U112D74 | [1] | CLIP | KOB |
| 19. | ZD12G14000 | [2] | O-RING,139.40mm ID x 145.60mm OD x 3.10mm | KOBID 139.40 ± 1.12 x OD 145mm |
| 20. | ZD75G14000 | [2] | RING | KOBRING, BACK UP |
| 21. | 2438U1108S21 | [1] | RING | |
| 22. | R45P0050D11 | [1] | SEAL | KOB |
| 23. | 45Z91D117 | [1] | O-RING | KOB |
| 24. | 24838U17-18 | [1] | KIT | KOBPACKING ROD Superseded by part number: 2438U1965S11 |
| 25. | 2438U588S38 | [1] | DUST CAP | KOB |
| 26. | ZS23C16065 | [16] | SCREW,Hex Socket Head, M16 x 65mm | KOBM16x2.0x65mm |
| 27. | 2438U921S29 | [1] | CHECK VALVE | KOBORIFICE |
| 28. | 2438U921S32 | [1] | SPRING | KOB |
| 29. | 2438U921S28 | [1] | SPACER | KOB |
| 30. | ZE82T06000 | [1] | PLUG | KOBPipe, 3/8" PT |
| 31. | 2438U1108S31 | [1] | BRACKET | KOB |
| 32. | 2438U921S25 | [1] | BUCKET | KOBBRACKET |
| 33. | ZS16C10030 | [2] | CAPSCREW | KOBSCREW M10x1.50x30mm Superseded by part number: ZS18C10030 |
| 34. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| . . | 2438U1108R100 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 19-25 Superseded by part number: 2438U1108R100P |
| . . | 2438U1108R200 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 6-10 Superseded by part number: 2438U1108R200P |
| . . | 2438U1108R300 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 6-10, 19-25 Superseded by part number: 2438U1108R300P |
