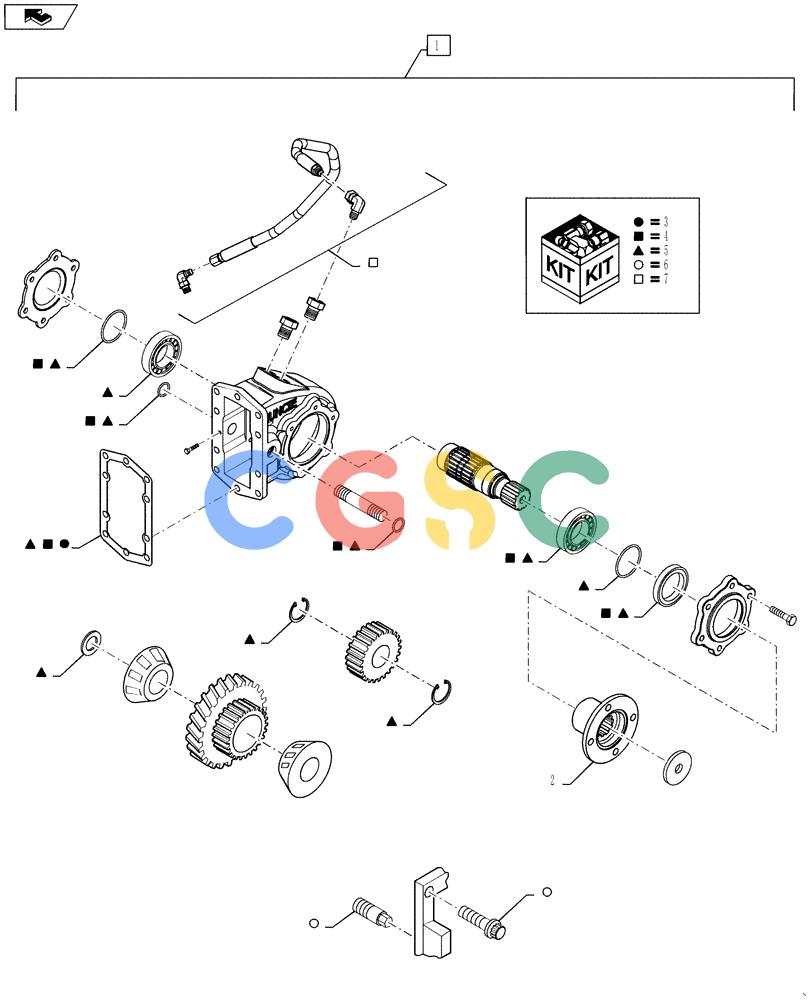

凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (35.220.05) - PTO GEARBOX Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
548 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN304157
|
[1] |
GEARBOX
|
BN
PTO Gearbox, RH, With 1-1/2" Dia 10 Tooth Splined Output Shaft, Complete, Includes Ref 2 - 7
|
| 1. |
BN304157R
|
[1] |
REMAN-PTO GEARBOX A.
|
BN
810 FLEX-AIR APPLICATOR, PTO Gearbox, RH, Complete (2/12-)
|
| 1. |
BN304157C
|
[1] |
CORE-PTO GEARBOX A.
|
BN
Return Number
|
| 2. |
87272067
|
[1] |
FLANGE
|
BN
|
| 3. |
87272068
|
[1] |
REPAIR KIT
|
BN
Mounting Gasket, Located Between Transmission and PTO, And Instructions
|
| 4. |
87272069
|
[1] |
REPAIR KIT
|
BN
Includes Mounting Gasket, Output Shaft Seal, 2 Output Shaft Orings, 2 Orings
|
| 5. |
87272630
|
[1] |
REPAIR KIT
|
BN
Internal Seal Kit, Inlcudes Bearings, Mounting Gasket, Shims, Snap Rings, Orings, And Shaft Seal
|
| 6. |
87272631
|
[1] |
REPAIR KIT
|
BN
Mounting Bolts, Includes 8 12pt Screws And 2 Alignment Studs
|
| 7. |
87265711
|
[1] |
HYDRAULIC HOSE,28.00", SAE 100R5
|
BN
PTO To Transmission, Includes 2 Elbows
|
