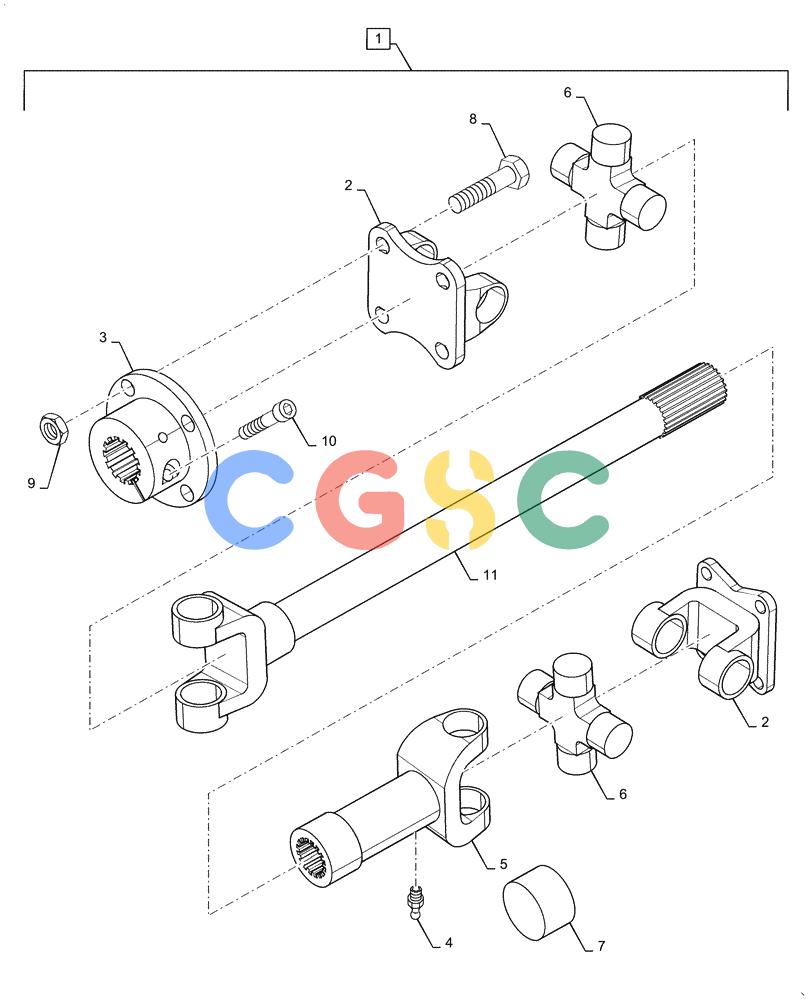

凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (35.220.06) - HYDRAULIC DRIVELINE, 4 WHEELER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
931 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84188742
|
[1] |
DRIVE SHAFT
|
BN
Hydrostatic Pump, Includes Ref 2 - 11
|
| 2. |
BN306563
|
[2] |
FLANGE
|
BN
Yoke
|
| 3. |
BN313375
|
[1] |
FLANGE
|
BN
Pinch
|
| 4. |
80714
|
[2] |
LUBE NIPPLE,1/4"-28 NPT x .54" lg
|
PA
Superseded by part number: 87414
|
| 5. |
BN313372
|
[1] |
YOKE
|
BN
Slip
|
| 6. |
R2713
|
[1] |
BEARING ASSY
|
CAS
Cross Superseded by part number: V107034
|
| 7. |
84192220
|
[1] |
DUST CAP
|
BN
|
| 8. |
86050212
|
[4] |
BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8
|
WIN
|
| 9. |
86637736
|
[4] |
NUT,7/16"-14, GB
|
FAR
|
| 10. |
280257
|
[1] |
HEX SOC SCREW,3/8" - 24 x 1 1/4"
|
GI
CS HSH P .38-24X1.25
|
| 11. |
84192584
|
[1] |
PTO SHAFT
|
BN
Yoke, Incl 6
|
