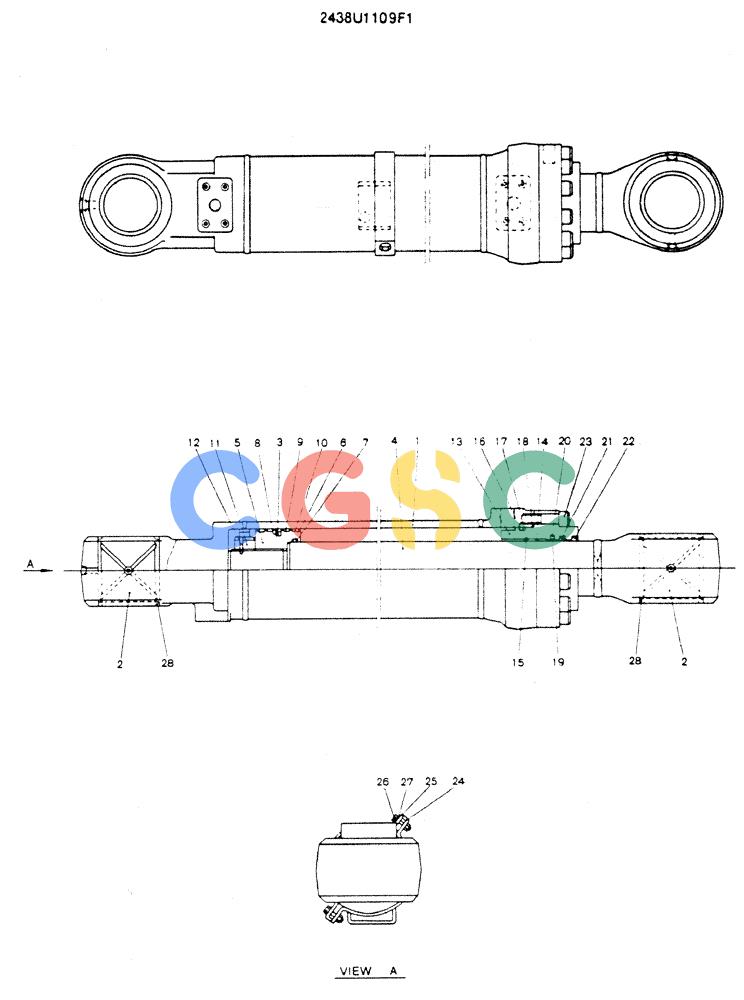

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (15-004) - CYLINDER ASSY (BUCKET) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
650 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2438U1109F1 | [1] | CYLINDER | KOBASSY (BUCKET) CONSISTS OF THE FOLLOWING PARTS |
| 1. | 2438U1109S1 | [1] | BARREL | KOB |
| 2. | 2438U1106S2 | [2] | BUSHING | KOBID 79.29mm x OD 90.12mm x H 89.98mm |
| 3. | R45P0049D2 | [1] | SEAL | KOB |
| 4. | 2438U1109S4 | [1] | PISTON ROD | KOB |
| 5. | 2438U1109S5 | [1] | PISTON | KOBPISTON |
| 6. | ZD12G08000 | [1] | O-RING,79.40mm ID x 85.60mm OD x 3.10mm | KOBID 79.40 ± 0.69 x OD 85mm |
| 7. | ZD75G08000 | [2] | BACK-UP RING | KOB |
| 8. | R45P0051D4 | [1] | O-RING | KOB |
| 9. | 2438U1109S9 | [2] | WEAR RING | KOB |
| 10. | 2438U995S10 | [2] | WEAR RING | KOB |
| 11. | 2438U995S11 | [1] | NUT | KOBPISTON |
| 12. | 2438U308S45 | [1] | LOCKING RING | KOB |
| 13. | 2438U1109S13 | [1] | COVER | KOB |
| 14. | 2438U1109S14 | [1] | BUSHING | KOB |
| 15. | 2438U718S22 | [1] | CLIP | KOB |
| 16. | ZD12G11500 | [1] | O-RING,114.40mm ID x 120.60mm OD x 3.10mm | KOBID 114.40 ± 0.94 x OD 120mm |
| 17. | ZD75G11500 | [1] | BACK-UP RING | KOB |
| 18. | 2438U1106S21 | [1] | RING | KOB |
| 19. | R45P0050D9 | [1] | RUBBER SEAL | KOBSTEP |
| 20. | 45Z91D44 | [1] | O-RING | KOB |
| 21. | 2418U130D34 | [1] | PACKING | KOBSEAL Superseded by part number: Y0496604500 |
| 22. | 2438U928S33 | [1] | SEAL | KOBDUST |
| 23. | ZS23C14055 | [12] | SCREW,Hex Socket Head, M14 x 55mm | KOBM14x2.0x55mm |
| 24. | 2438U995S24 | [1] | U-BRACKET | KOB |
| 25. | 2438U915S22 | [1] | BAND | KOBBRACKET |
| 26. | ZS16C10030 | [2] | CAPSCREW | KOBSCREW M10x1.50x30mm Superseded by part number: ZS18C10030 |
| 27. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 28. | 2438U1109S28 | [4] | SEAL | KOBDUST |
| . . | 2438U1109R100 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 3, 6-10 Superseded by part number: 2438U1109R100P |
| . . | 2438U1109R200 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 16-22 Superseded by part number: 2438U1109R200P |
| . . | 2438U1109R300 | [1] | REPAIR KIT | KOBREPAIR CONSISTS OF ITEM 3, 6-10, 16-22 Superseded by part number: 2438U1109R300P |
