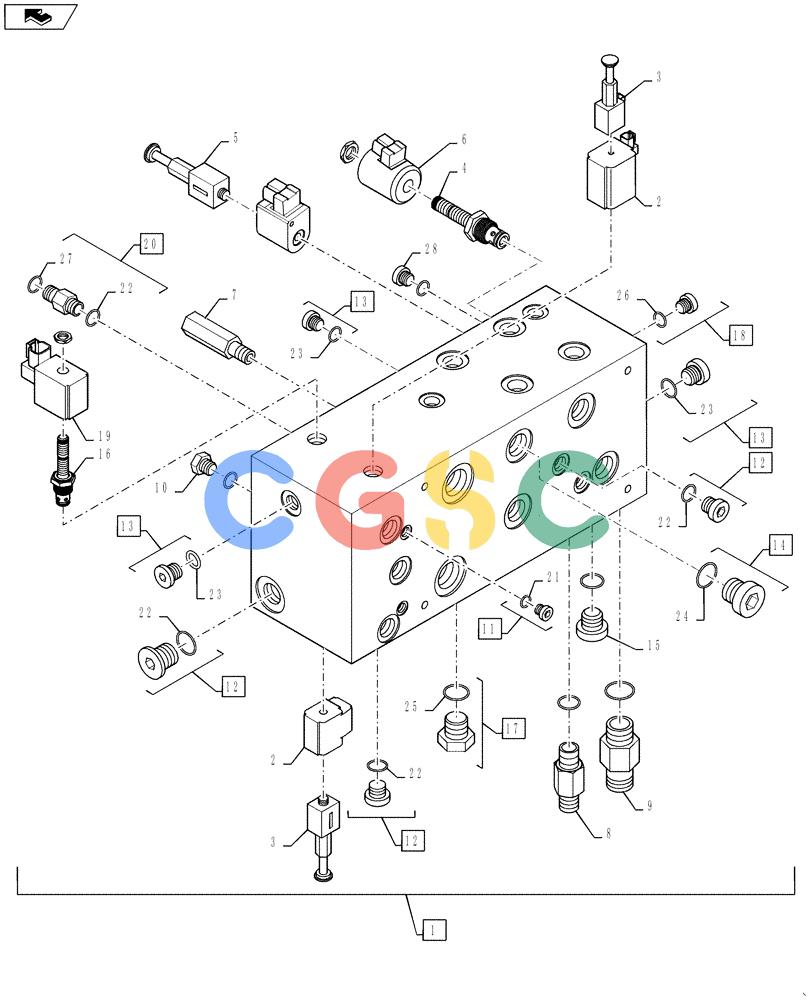

凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (35.359.02[02]) - VALVE BREAKDOWN, SINGLE BIN Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
164 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87267743
|
[1] |
HYDRAULIC VALVE
|
BN
Single Bin, Without Fittings, Includes Ref 2 - 26 Superseded by part number: 87267733
|
| 2. |
87267935
|
[2] |
COIL
|
CUR
12V, DC
|
| 3. |
BN303849
|
[2] |
SOLENOID VALVE
|
BN
2/3 Way
|
| 4. |
BN303851
|
[1] |
SOLENOID VALVE
|
BN
2/2 Way
|
| 5. |
87267925
|
[2] |
COIL,12V
|
BN
12V DC
|
| 6. |
BN303853
|
[1] |
HYDRAULIC VALVE
|
BN
2/2 Way Solenoid
|
| 7. |
BN324995
|
[1] |
CHECK VALVE
|
BN
30 PSI
|
| 8. |
BN303855
|
[1] |
VALVE PRESSURE RELIE
|
BN
2700 PSI
|
| 9. |
BN303857
|
[1] |
HYDRAULIC VALVE
|
BN
Flow Control
|
| 10. |
87266994
|
[1] |
VALVE PRESSURE RELIE
|
BN
2175 PSI
|
| 11. |
86529630
|
[4] |
PLUG,Hex Soc, 3/8"-24 ORB
|
WIN
Includes Ref 21
|
| 12. |
9625178
|
[7] |
PLUG,9/16" - 18 ORB
|
BEL
Includes Ref 22
|
| 13. |
86625138
|
[11] |
PLUG,7/18" - 14
|
FAR
Includes Ref 23
|
| 14. |
9841223
|
[4] |
PLUG,1-1/16" - 12 ORB
|
BEL
Includes Ref 24
|
| 15. |
BN303865
|
[1] |
PLUG
|
BN
Orfice, .020"
|
| 16. |
87270622
|
[1] |
HYDRAULIC VALVE
|
BN
Prop Flow Control
|
| 17. |
218-5210
|
[1] |
PLUG,Hex, 3/4"-16 ORB
|
CAS
Includes Ref 25 Superseded by part number: 72186290, 86590562
|
| 18. |
87649288
|
[1] |
PLUG
|
BN
7/16"-20 ORB, Socket Head, Includes Ref 26
|
| 19. |
87267936
|
[1] |
COIL
|
BN
12V, DC
|
| 20. |
BN302646
|
[2] |
FITTING
|
BN
11/16-16 ORFS x 9/16-18 ORB, Includes Ref 22 and 27
|
| 21. |
86513328
|
[4] |
O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro
|
GI
3/8", ORB
|
| 22. |
9617873
|
[9] |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
|
NH
9/16", ORB
|
| 23. |
167269
|
[11] |
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
|
WIN
7/8", ORB
|
| 24. |
167266
|
[4] |
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
|
NH
1-1/16", ORB
|
| 25. |
128825
|
[1] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
|
NH
3/4", ORB
|
| 26. |
165202
|
[1] |
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
|
WIN
7/16", ORB
|
| 27. |
9993141
|
[2] |
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
|
BAS
11/16", ORFS
|
| 28. |
BN303859
|
[1] |
PLUG
|
BN
Orfice, .242"
|
