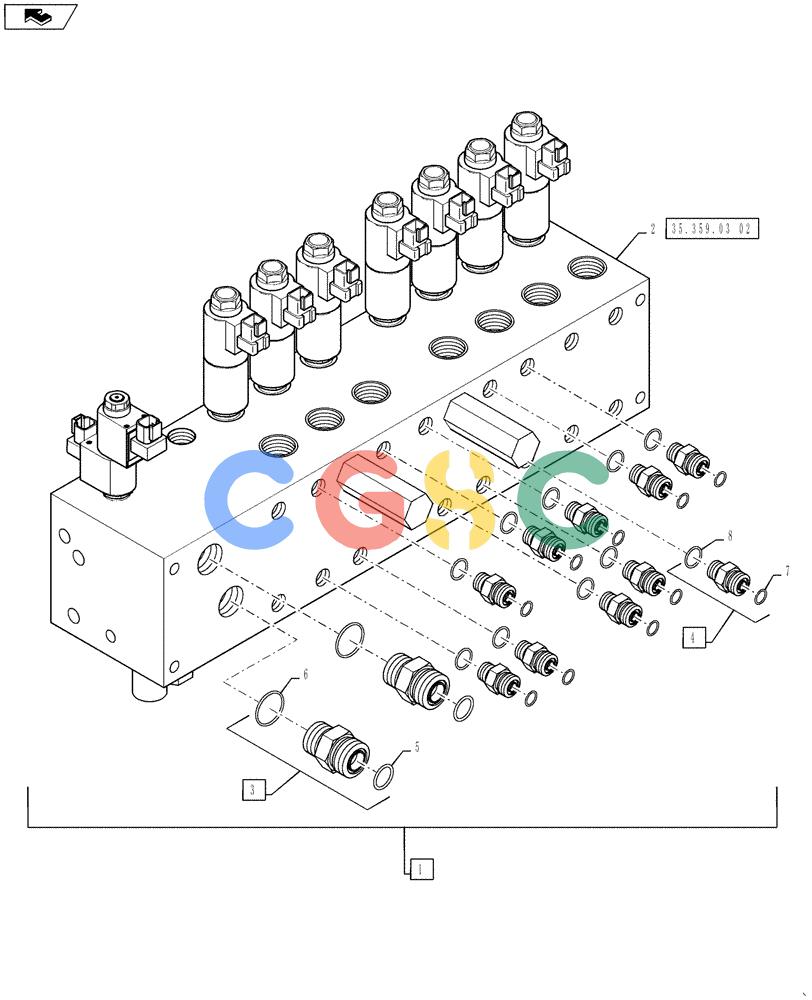

凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (35.359.03[01]) - 7 SECTION VALVE BANK Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
662 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
344011A1
|
[1] |
HYDRAULIC VALVE
|
BN
7 Section Manifold
|
| 2. |
87267722
|
[1] |
VALVE
|
BN
7 Section Manifold, Without Fittings
|
| 3. |
BN302655
|
[3] |
FITTING
|
BN
1-3/16"-12 ORFS x 1-1/16"-12 ORB, Includes Ref 5 and 6
|
| 4. |
BN302646
|
[14] |
FITTING
|
BN
11/16-16 ORFS x 9/16-18 ORB, Includes Ref 7 and 8
|
| 5. |
9992298
|
[3] |
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
|
BHB
1-3/16", ORFS
|
| 6. |
167266
|
[3] |
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
|
NH
1-1/16", ORB
|
| 7. |
9993141
|
[14] |
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
|
BAS
11/16", ORFS
|
| 8. |
9617873
|
[14] |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
|
NH
9/16", ORB
|
