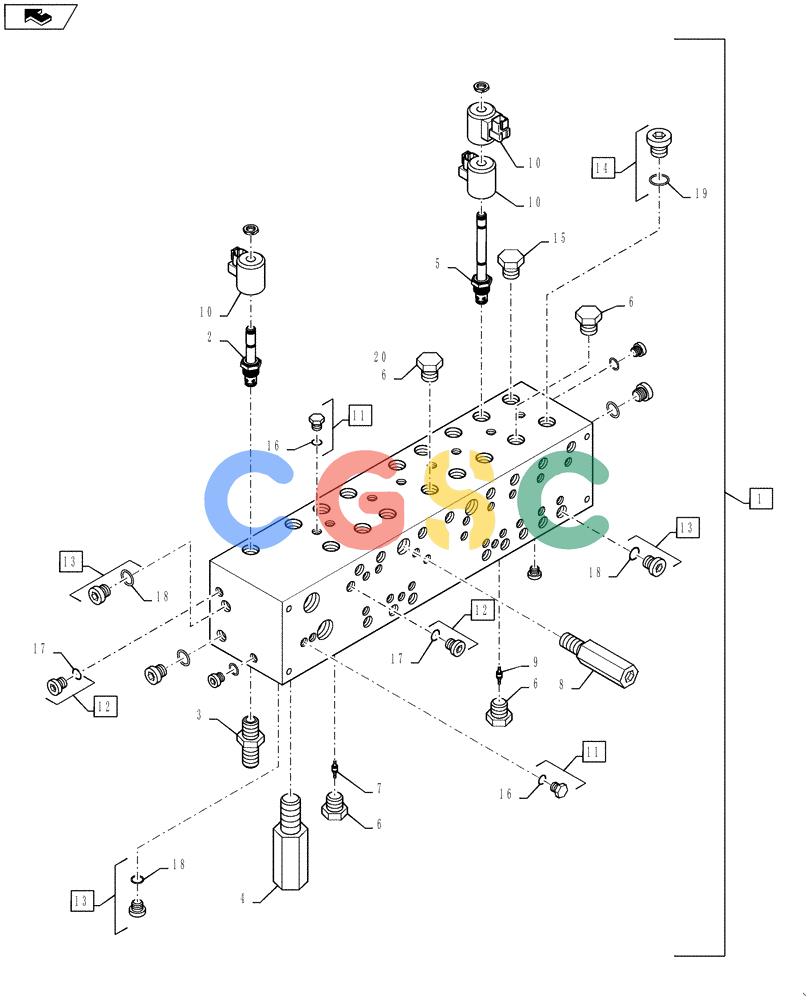

凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (35.359.03[02]) - 7 SECTION VALVE BANK BREAKDOWN Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
741 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87267722
|
[1] |
VALVE
|
BN
7 Section Manifold, Without Fittings
|
| 2. |
BN318091
|
[1] |
SOLENOID VALVE
|
BN
2/2 Way
|
| 3. |
BN318087
|
[1] |
CONTROL
|
BN
Flow
|
| 4. |
BN303856
|
[1] |
VALVE PRESSURE RELIE
|
BN
1800 PSI
|
| 5. |
343278A1
|
[7] |
VALVE
|
BN
3/4 Way
|
| 6. |
87590496
|
[14] |
VALVE
|
A
Check, 100 PSI
|
| 7. |
343286A1
|
[2] |
PISTON
|
BN
Pilot
|
| 8. |
87267924
|
[2] |
VALVE PRESSURE RELIE
|
BN
174PSI
|
| 9. |
343280A1
|
[5] |
PISTON
|
BN
Pilot
|
| 10. |
87267925
|
[15] |
COIL,12V
|
BN
12V DC
|
| 11. |
86632547
|
[64] |
PLUG,Hex, 5/16"-24 ORB
|
FAR
Includes Ref 16
|
| 12. |
87649288
|
[5] |
PLUG
|
BN
7/16"-20 ORB, Socket Head, Includes Ref 17
|
| 13. |
218-5209
|
[5] |
PLUG,Hex, 9/16"-18 ORB
|
CAS
Includes Ref 18 Superseded by part number: 9625178
|
| 14. |
218-5210
|
[2] |
PLUG,Hex, 3/4"-16 ORB
|
CAS
Includes Ref 19 Superseded by part number: 72186290, 86590562
|
| 15. |
87267926
|
[1] |
PLUG
|
BN
Cavity
|
| 16. |
86010510
|
[64] |
O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro
|
PA
5/16", ORB
|
| 17. |
165202
|
[5] |
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
|
WIN
7/16", ORB
|
| 18. |
9617873
|
[5] |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
|
NH
9/16", ORB
|
| 19. |
128825
|
[2] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
|
NH
3/4", ORB
|
| 20. |
343287A1
|
[2] |
PLUG
|
BN
Orfice, .069
|
