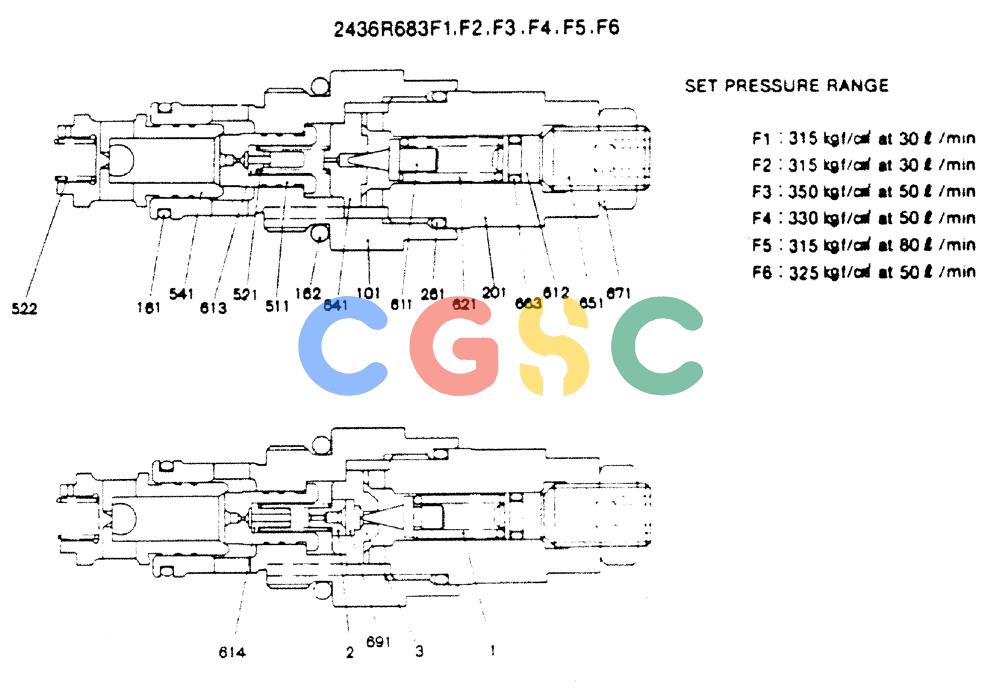

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R683F1~F6 | [1] | VALVE ASSY, RELIEF CONSISTS OF THE FOLLOWING PARTS | |
| 1. | 2436R683S1 | [1] | SPRING | KOBF2, F3, F4, F5, F6 |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT F2, F3, F4, F5, F6 |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, SPRING F2, F3, F4, F5, F6 |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 161. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 162. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 201. | 2436R683S201 | [1] | PLUG | KOB |
| 261. | ZD12P02200 | [1] | O-RING | KOBID 21.80 ± 0.24 x OD 26mm |
| 511. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 521. | 2436R683S521 | [1] | SPRING | KOB |
| 522. | 2436R683S522 | [1] | SPRING | KOB |
| 541. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT 1 |
| 611. | NSS | [1] | NOT SOLD SEPARAT | CONPOPPET |
| 612. | 2436R682S521 | [1] | SEAT | KOBSPRING |
| 613. | 2436R683S613 | [1] | SEAT, SPRING(NOT AVAILABLE) F1 | SEAT, SPRING(NOT AVAILABLE) F1 |
| 614. | 2436R750S614 | [1] | SEAT, SPRING F2, F3, F4, F5, F6 | |
| 621. | 2436R683S621 | [1] | SPRING | KOBF1 Superseded by part number: 2436R683S1 |
| 641. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT 2 F1 |
| 651. | 2436R683S651 | [1] | SET SCREW | KOBSET |
| 663. | ZD12P00600 | [1] | O-RING | KOBID 05.80 ± 0.15 x OD 09mm |
| 671. | 2436R683S671 | [1] | NUT | KOB Superseded by part number: ZN18C12007 |
| 691. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER F2, F3, F4, F5, F6 |
