神钢零件查询(MD240BLC) - EXCAVATOR ASN LL1488 (1/80-12/06) (01-001) - FRAME ASSY, UPP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
494 次

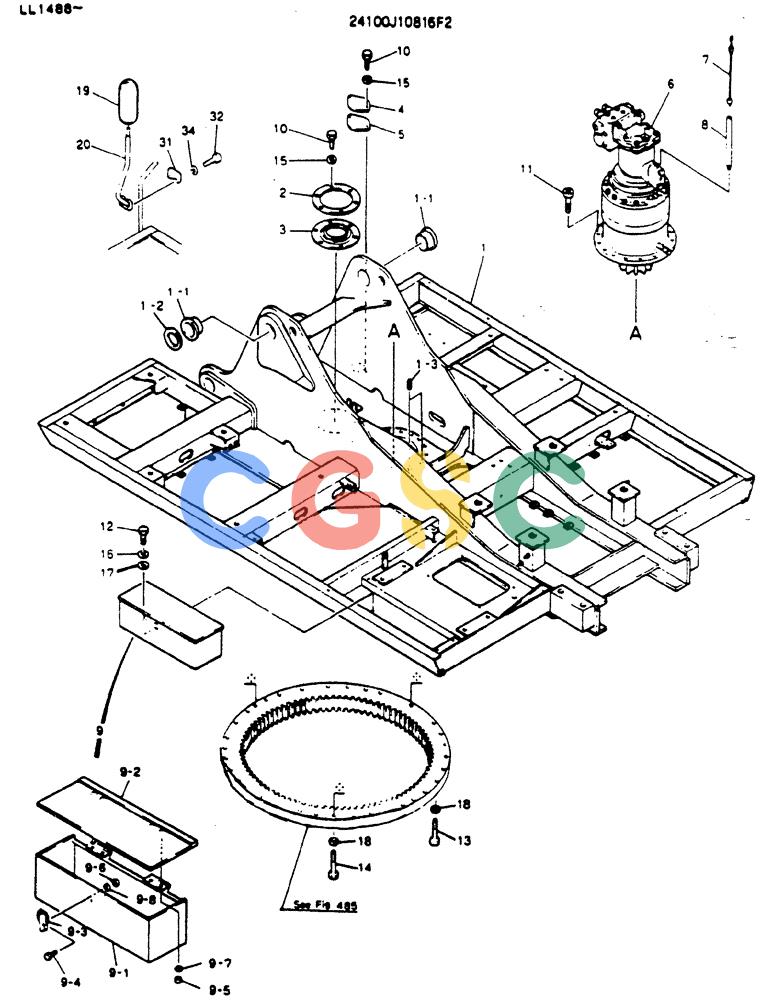

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J10816F2 | [1] | FRAME ASSY.UPP | |
| 1. | 2422J2872 | [1] | FRAME,UPP | |
| 1-1. | 2405T1260 | [2] | BUSHING | KOB |
| 1-2. | 2414T2795 | [1] | COVER | KOB |
| 1-3. | ZS83C20020 | [2] | SCREW | KOBSet -- M20x2.50x20mm |
| 2. | 2414T2341 | [1] | COVER | KOB Superseded by part number: YN52F01158P1 |
| 3. | 2414Z234 | [1] | COVER | KOB |
| 4. | 2418T12125 | [1] | PLATE | KOB Superseded by part number: YN52F01159P1 |
| 5. | 2416Z434 | [1] | PACKING | KOBRubber |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONMOTOR ASSY,SWING SEE FIGURE 004 |
| 7. | 2420R561D1 | [1] | DIPSTICK | KOB |
| 8. | 2420T4039C2D7 | [1] | RIGID TUBE | KOB |
| 9. | 24100P2570F1 | [1] | BOX ASSY, TOOL | BOX ASSY, TOOL |
| 9-1. | 2414N3807 | [1] | BOX,TOOL | |
| 9-2. | 2414N3808 | [1] | COVER | |
| 9-3. | 2432Z451 | [1] | CATCH | KOB |
| 9-4. | ZS31C03008 | [2] | SCREW,Phillips Drive, Pan HD, M3 x 8mm | KOBM03x0.5x08mm |
| 9-5. | ZN16C08007 | [4] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 9-6. | ZN11C03003 | [2] | NUT | KOBM03x0.5mm |
| 9-7. | ZW22X08000 | [4] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 9-8. | ZW26X03000 | [2] | LOCK WASHER | HIT |
| 10. | ZS13C10025 | [8] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 11. | ZS23C20065 | [16] | SCREW,Hex Socket Head, M20 x 65mm | KOBM20x2.5x65mm |
| 12. | ZS18C12020 | [2] | SCREW,Hex, M12 x 20mm | KOBM12x1.75x20mm |
| 13. | ZS13C20120 | [30] | SCREW | KOBM20x2.50x120mm |
| 14. | 2420Z1201 | [3] | SCREW | KOB |
| 15. | 2418T5373C2 | [8] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 16. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 17. | 2418T10357 | [2] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 18. | ZW13U20000 | [33] | WASHER | |
| 19. | 2456Z253 | [1] | MIRROR | KOBBACK |
| 20. | 2416P13732 | [1] | STAY | KOB Superseded by part number: 2416P13732D2 |
| 31. | 2432T4113 | [1] | CLAMP | KOB Superseded by part number: 2432T4113D2 |
| 32. | ZS18C08040 | [2] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| 34. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
