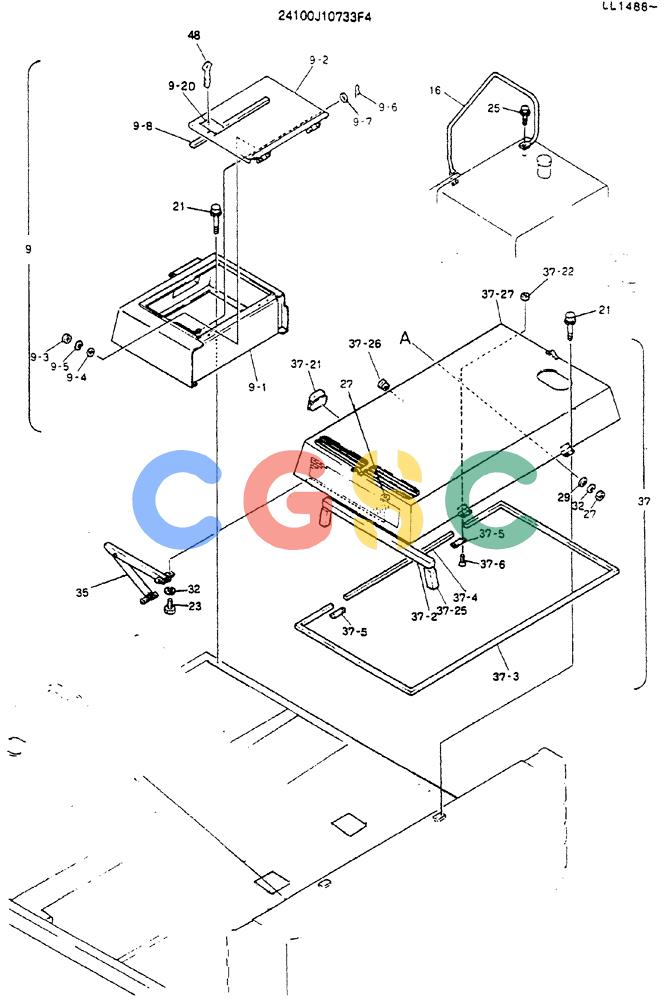

| . . | 24100J10733F4 | [1] | GUARD ASSY | |
| 5. | 2414P6721F1 | [1] | COVER ASSY | COVER ASSY |
| 5-3. | 2416Z512 | [1] | INSULATOR | KOB |
| 6. | 2414P6006 | [1] | COVER | COVER |
| 7. | 2414T4373F1 | [1] | COVER ASSY | KOB |
| 7-1. | 2414P6724 | [1] | COVER | |
| 7-2. | 2479T1260 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 7-3. | 2418T8864 | [5] | WASHER | KOB |
| 8. | 2414P6723 | [1] | COVER | COVER |
| 9. | 24100N5741F1 | [1] | BOX | KOB |
| 9-1. | 2414N3774 | [1] | BOX | BOX |
| 9-2. | 2414P4175 | [1] | COVER | KOB |
| 9-2D. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 9-3. | ZN12C12010 | [4] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 9-4. | ZW16X12000 | [4] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 9-5. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 9-6. | 2419R9D3 | [1] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 9-7. | ZW11X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 9-8. | 2416Z440D5 | [1] | CUSHION | KOB |
| 10. | 2414T2864F1 | [1] | COVER ASSY | COVER ASSY |
| 10-1. | 2414P4145 | [1] | COVER | |
| 10-2. | 2479T1241 | [1] | INSULATION,SOUND | |
| 11. | 2414T2865F1 | [1] | COVER ASSY | COVER ASSY |
| 11-1. | 2414P4144 | [1] | COVER | |
| 11-2. | 2416T13474 | [1] | INSULATOR | INSULATOR |
| 11-3. | 2416Z525 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 11-4. | 2416Z545 | [1] | INSULATOR | INSULATOR |
| 12. | 2416J882 | [1] | BRACKET | BRACKET |
| 13. | 2416N3520 | [1] | BRACKET | BRACKET |
| 15. | 2416T13261 | [6] | BRACKET | KOB, Serial Range: LL1488-LL1505 |
| . . | 2416T13007 | [6] | BRACKET | KOB, Start Serial: LL1506 |
| 16. | 2427P3013 | [1] | HANDRAIL | KOB |
| 17. | 2427R475 | [1] | CATCH | KOB Superseded by part number: YN21C02226P1 |
| 18. | 2427R302D2 | [1] | CATCH | KOB |
| 19. | 2416T13435 | [2] | RUBBER | KOB |
| 20. | 2420T6788 | [12] | SCREW,M10 x 1.5 x 25mm | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C10025 |
| 21. | 2420T6786 | [42] | BOLT,M12 x 1.75 x 25mm | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12025 |
| 22. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 23. | ZS18C08020 | [16] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 24. | 2416T6289D2 | [3] | STAY | KOB |
| 25. | 2420T6787 | [12] | SCREW,M12 x 1.75 x 20mm | KOBM12x1.75x20mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12030 |
| 26. | ZN18C10008 | [12] | NUT | KOBM10x1.50mm |
| 27. | ZN18C08007 | [16] | NUT | KOBM08x1.25mm |
| 28. | 2416N3345 | [1] | BRACKET | KOB |
| 29. | ZW16X08000 | [12] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 31. | ZW26X10000 | [16] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 33. | ZW16X10000 | [3] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 34. | 2419R9D3 | [3] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 35. | 2416P8732 | [1] | STAY | KOB |
| 36. | 2416N3343 | [1] | BRACKET | BRACKET |
| 37. | 24100N5752F2 | [1] | COVER ASSY | COVER ASSY |
| 37-2. | 2416Z529 | [1] | INSULATOR | KOB |
| 37-3. | 2416Z527 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 37-4. | 2416Z490D1 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 37-5. | 2416Z435D2 | [2] | RUBBER SLEEVE | KOBCUSHION |
| 37-6. | ZS41C05025 | [4] | SCREW,M5 x 25mm | KOBM05x0.8x25mm |
| 37-21. | 2406Z304 | [1] | HANDLE | KOB |
| 37-22. | ZN11C05004 | [4] | NUT M05x0.8mm | NUT M05x0.8mm |
| 37-25. | 2416Z536 | [2] | INSULATOR | KOB |
| 37-26. | 2420R429D14 | [2] | GROMMET | KOB |
| 37-27. | 2414J2133 | [1] | COVER | COVER |
| 38. | 2414T2871F2 | [1] | COVER | KOBASSY, Serial Range: LL1488-LL1505 |
| . . | 2414T4541F2 | [1] | COVER ASSY | KOB, Start Serial: LL1506 |
| 38-3. | 2416Z485D1 | [1] | CUSHION | KOB |
| 38-5. | 2414P7108 | [1] | COVER, Start Serial: LL1506 | COVER, Start Serial: LL1506 |
| 38-5D. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 38-7. | 2414P6096 | [1] | COVER | KOB, Serial Range: LL1488-LL1505 |
| 38-70. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 39. | 2414T2872F2 | [1] | COVER ASSY, Serial Range: LL1488-LL1505 | COVER ASSY, Serial Range: LL1488-LL1505 |
| . . | 2414T4542F2 | [1] | COVER ASSY | KOB, Start Serial: LL1506 |
| 39-3. | 2416Z485D1 | [1] | CUSHION | KOB |
| 39-5. | 2414P7110 | [1] | COVER, Start Serial: LL1506 | COVER, Start Serial: LL1506 |
| 39-5D. | 2427R476F2 | [1] | LOCK | KOB Superseded by part number: 2421R175F1 |
| 39-6. | 2414P6095 | [1] | COVER, Serial Range: LL1488-LL1505 | COVER, Serial Range: LL1488-LL1505 |
| 39-60. | 2427R476F2 | [1] | LOCK | KOB Superseded by part number: 2421R175F1 |
| 40. | 2414T3001F1 | [1] | COVER ASSY | KOB, Serial Range: LL1488-LL1505 |
| . . | 2414T3001F2 | [1] | COVER ASSY, Start Serial: LL1506 | COVER ASSY, Start Serial: LL1506 |
| 40-1. | 2414P6014 | [1] | COVER, Serial Range: LL1488-LL1505 | |
| 40-2. | 2416Z487D1 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 40-3. | 2414P7112 | [1] | COVER, Start Serial: LL1506 | COVER, Start Serial: LL1506 |
| 41. | 2416N3423 | [1] | BRACKET, L.H. | BRACKET, L.H. |
| 48. | 2420Z1030D2 | [1] | KIT | KOB Superseded by part number: PM50S01001P1 |
| 49. | 2418T12346 | [12] | WASHER | KOBID 11 x OD 30 x Th 3.2mm |
