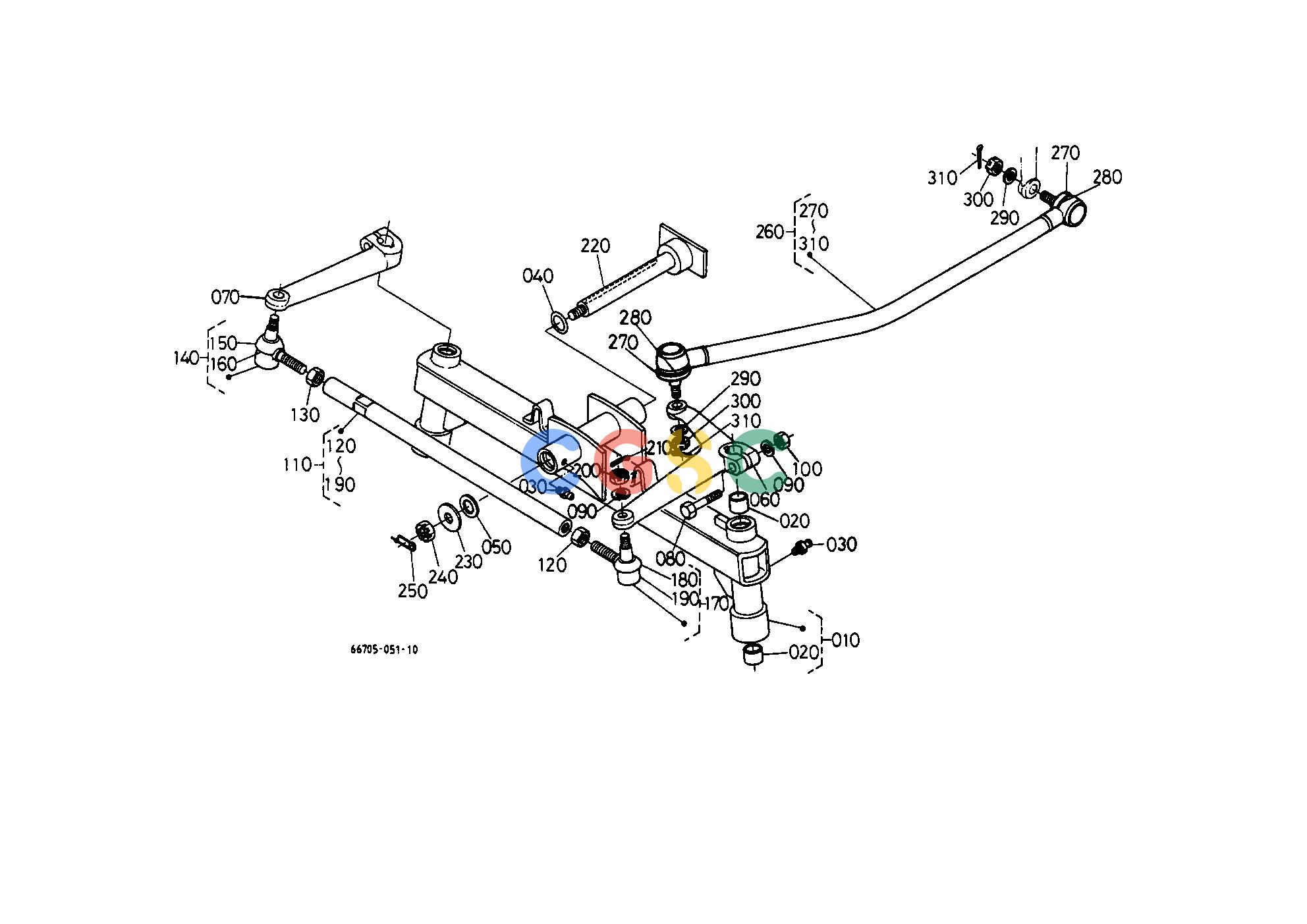

久保田零件查询T06100 FRONT AXLE FRONT AXLEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
662 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6672156114
|
[1] |
FRAME FRONT AXLE
|
18.7000(lbs); 8.500
|
| 020. |
6658156130
|
[4] |
BUSH
|
0.0418(lbs); 0.019
|
| 030. |
0661310675
|
[3] |
NIPPLE GREASE
|
0.0066(lbs); 0.003
|
| 040. |
0481100200
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
0923020264
|
[1] |
SEAL OIL
|
0.0044(lbs); 0.002
|
| 060. |
6721156510
|
[1] |
ARM KNUCKLE LH
|
2.3540(lbs); 1.070
|
| 070. |
6721156520
|
[1] |
ARM KNUCKLE RH
|
1.6280(lbs); 0.740
|
| 080. |
0117351055
|
[2] |
BOLT
|
0.0792(lbs); 0.036
|
| 090. |
0451250100
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 100. |
0211850100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 110. |
6721156500
|
[1] |
ASSY ROD TIE
|
2.6400(lbs); 1.200
|
| 120. |
6712156540
|
[1] |
NUT
|
0.0154(lbs); 0.007
|
| 130. |
0217250120
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 140. |
6712156530
|
[1] |
END TIE ROD RH
|
0.5060(lbs); 0.230
|
| 150. |
6712156560
|
[1] |
COVER DUST
|
0.0176(lbs); 0.008
|
| 160. |
6712156570
|
[1] |
CLIP
|
0.0066(lbs); 0.003
|
| 170. |
6712156520
|
[1] |
END TIE ROD LH
|
0.5280(lbs); 0.240
|
| 180. |
6712156560
|
[1] |
COVER DUST
|
0.0176(lbs); 0.008
|
| 190. |
6712156570
|
[1] |
CLIP
|
0.0066(lbs); 0.003
|
| 200. |
6659156780
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 210. |
0551152520
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 220. |
6690456110
|
[1] |
PIN CENTER
|
1.2540(lbs); 0.570
|
| 230. |
0401150180
|
[1] |
WASHER PLAIN
|
0.0264(lbs); 0.012
|
| 240. |
0237250180
|
[1] |
NUT
|
0.0418(lbs); 0.019
|
| 250. |
6661157150
|
[1] |
SPRING SET
|
0.0440(lbs); 0.020
|
| 260. |
6620457100
|
[1] |
COMP LINK DRAG
|
5.0600(lbs); 2.300
|
| 270. |
6712156560
|
[1] |
COVER DUST
|
0.0176(lbs); 0.008
|
| 280. |
6712156570
|
[1] |
CLIP
|
0.0066(lbs); 0.003
|
| 290. |
0451250100
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 300. |
6659156780
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 310. |
0551152528
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
