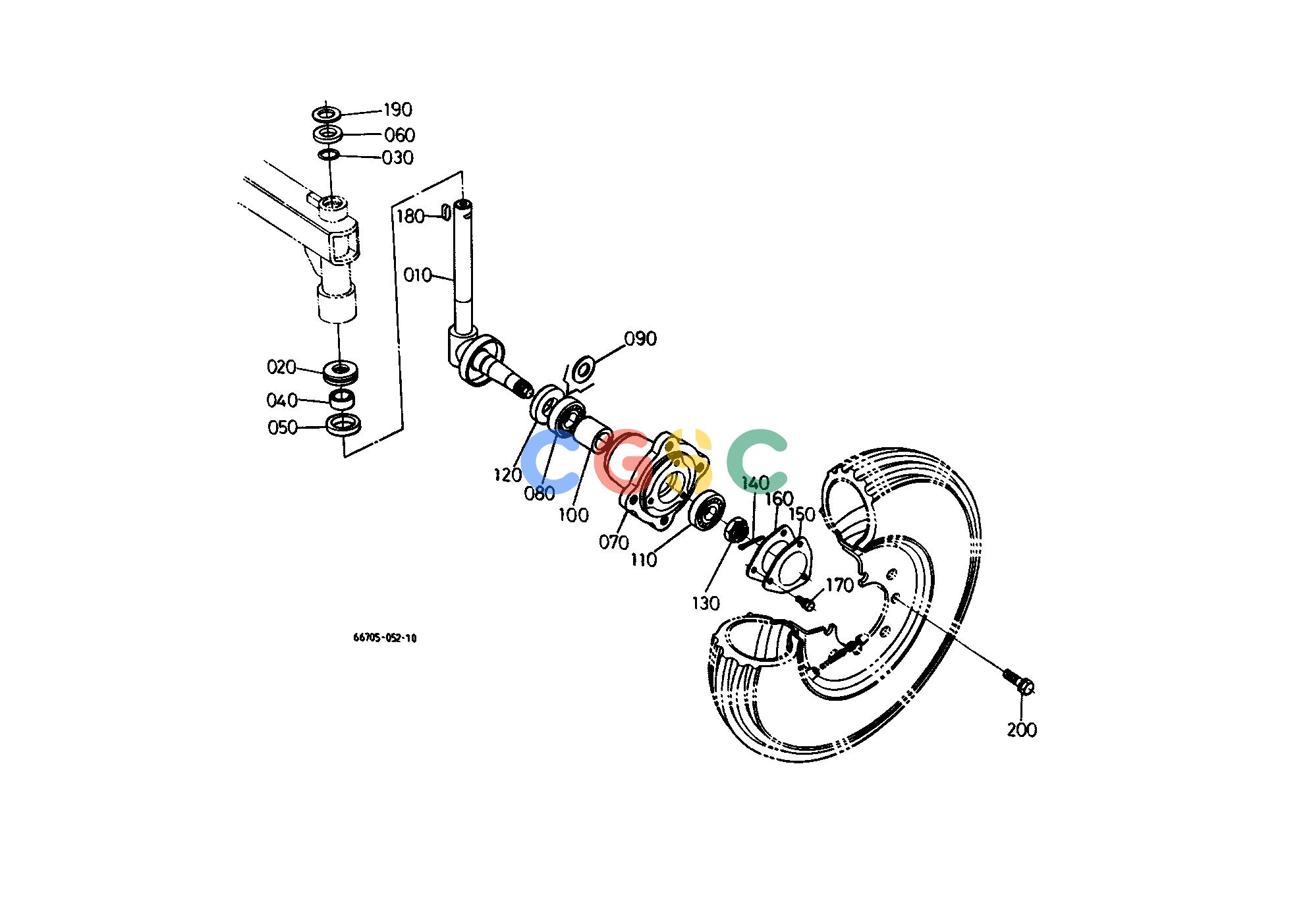

久保田零件查询T06200 FRONT WHEEL HUB FRONT AXLEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
418 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6668156210
|
[2] |
KINGPIN
|
2.9040(lbs); 1.320
|
| 020. |
0840000010
|
[2] |
BEARING THRUST BALL
|
0.1012(lbs); 0.046
|
| 030. |
0481100200
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
6658156180
|
[2] |
COLLAR
|
0.0462(lbs); 0.021
|
| 050. |
0916028408
|
[2] |
SEAL OIL
|
0.0220(lbs); 0.010
|
| 060. |
6668156220
|
[2] |
COLLAR
|
0.0572(lbs); 0.026
|
| 070. |
6668156310
|
[2] |
HUB FRONT WHEEL
|
3.3000(lbs); 1.500
|
| 080. |
0810106205
|
[2] |
BEARING BALL
|
0.2640(lbs); 0.120
|
| 090. |
3415011440
|
[2] |
WASHER
|
0.0088(lbs); 0.004
|
| 100. |
3415011420
|
[2] |
COLLAR
|
0.2860(lbs); 0.130
|
| 110. |
0810106204
|
[2] |
BEARING BALL
|
0.2244(lbs); 0.102
|
| 120. |
3415011150
|
[2] |
SEAL OIL
|
0.1100(lbs); 0.050
|
| 130. |
0237250200
|
[2] |
NUT
|
0.0528(lbs); 0.024
|
| 140. |
0551150435
|
[2] |
PIN SPLIT
|
0.0088(lbs); 0.004
|
| 150. |
3213011350
|
[2] |
CAP FRONT WHEEL
|
0.0836(lbs); 0.038
|
| 160. |
3213011360
|
[2] |
GASKET
|
0.0000(lbs); 0.000
|
| 170. |
0112350814
|
[6] |
BOLT
|
0.0220(lbs); 0.010
|
| 180. |
0571200730
|
[2] |
KEY FEATHER
|
0.0242(lbs); 0.011
|
| 190. |
6363311860
|
[2] |
SHIM A
|
0.0066(lbs); 0.003
|
| 190. |
6363311870
|
[2] |
SHIM B
|
0.0022(lbs); 0.001
|
| 200. |
0112351225
|
[8] |
BOLT
|
0.0880(lbs); 0.040
|
