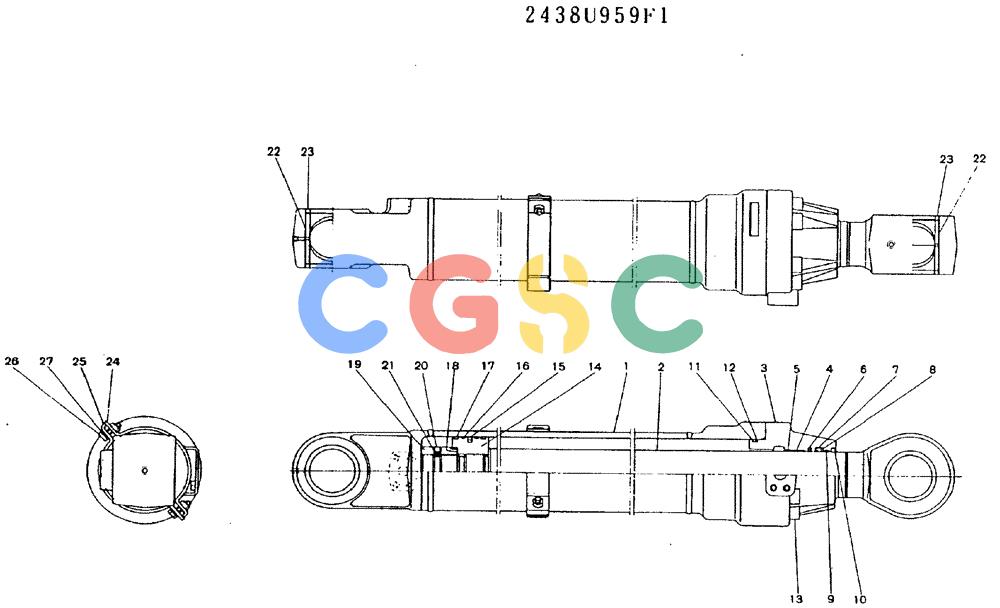

神钢零件查询(MD240BLC) - EXCAVATOR ASN LL1488 (1/80-12/06) (11-021) - CYLINDER ASSY (BUCKET) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
674 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2438U959F1 | [1] | CYLINDER | KOBASSY, CONSISTS OF THE FOLLOWING PARTS |
| 1. | 2438U959S1 | [1] | BARREL | KOB |
| 2. | 2438U959S2 | [1] | PISTON ROD | KOB Superseded by part number: 2438U1138S2 |
| 3. | 2438U959S3 | [1] | CYLINDER HEAD | KOB |
| 4. | 2438U959S4 | [1] | BUSHING | KOB Superseded by part number: 2438U1106S17 |
| 5. | 2438U959S5 | [1] | RING | KOB |
| 6. | 2438U959S6 | [1] | BACK-UP RING | KOBBUFFER |
| 7. | 2438U959S7 | [1] | RING | KOB |
| 8. | 2438U959S8 | [1] | RING | KOB |
| 9. | 2438U959S9 | [1] | RING | KOBSLIDING |
| 10. | 2438U959S10 | [1] | SCRAPER RING | KOBWIPER Superseded by part number: LP01V00008S009 |
| 11. | ZD12P12000 | [1] | O-RING | KOB |
| 12. | 2438U959S12 | [1] | BACK-UP RING | KOB |
| 13. | ZS23C20070 | [8] | SCREW,Hex Socket Head, M20 x 70mm | KOBM20x2.5x70mm |
| 14. | 2438U959S14 | [1] | PISTON | KOBPISTON |
| 15. | 2438U1382S15 | [1] | SEAL | KOB |
| 16. | 2438U959S16 | [2] | RING | KOBSLIDING |
| 17. | 2438U1382S17 | [2] | RING | KOBSLIDING |
| 18. | 2438U959S18 | [1] | SHIM | KOB |
| 19. | 2438U959S19 | [1] | NUT | KOB |
| 20. | 2438U999S21 | [1] | SET SCREW | KOBSet -- M12x1.75mm |
| 21. | 2436U330S16 | [1] | BALL | KOB |
| 22. | 2438U959S22 | [2] | BUSHING | KOB |
| 23. | 2438U959S23 | [4] | RING | KOB |
| 24. | 2438U959S24 | [1] | BAND | KOB |
| 25. | 2438U959S25 | [1] | BAND | KOB |
| 26. | 2438U999S29 | [2] | SCREW | KOB Superseded by part number: ZS18C10035 |
| 27. | 2438U999S30 | [2] | LOCK WASHER | KOB Superseded by part number: ZW26X10000 |
| . . | 2438U959R100 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 6 - 12 Superseded by part number: 2438U1138R100 |
| . . | 2438U959R200 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 15 - 17 Superseded by part number: 2438U959R200P |
